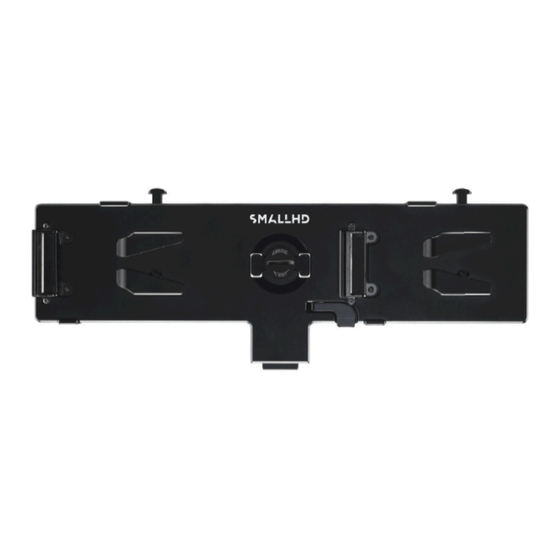

- Page 1 SmallHD User Manual 4K Monitor Dual Battery Plate 4K Monitor Dual Battery Plate Page 1...
- Page 2 SmallHD User Manual Physical Properties 4K Monitor Dual Battery Plate Page 2...
- Page 3 C. Battery Plate Power Port B. Dovetail Mounting Rail D. Thumb Screw Installation 1. Remove the monitor’s Battery Power Port Plug. 2. Press the safety stop down on the monitor’s Dovetail Mounting Rail. 4K Monitor Dual Battery Plate Page 3...
- Page 4 SmallHD User Manual 3. While pressing down on the safety stop, slide the Dual Battery Plate on the Dovetail Mounting Rail to the bottom until you hear a click. 4K Monitor Dual Battery Plate Page 4...
- Page 5 5. Attach a compatible Gold Mount/V-Mount battery to the battery plate. NOTE: The 4K Dual Battery Plate supports 14v-26v batteries, so you can use one or two batteries and they are hot-swappable. 4K Monitor Dual Battery Plate Page 5...
