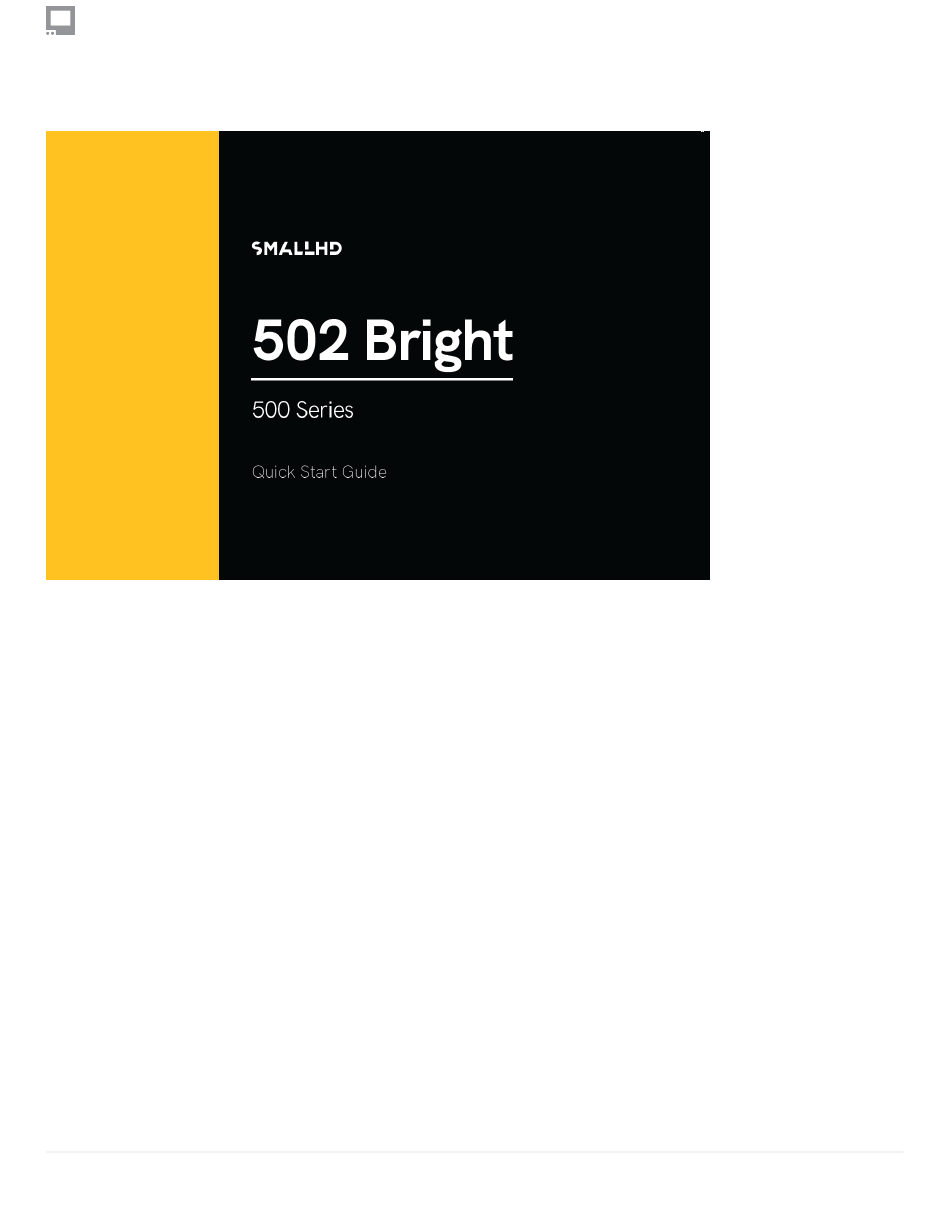

- Page 1 SmallHD User Manual 502 Bright Quick Start Guide 502 Bright Quick Start Guide Page 1...
- Page 2 SmallHD User Manual Physical Properties A: Back Button F: 1/4-20 Mounting Point K: HDMI Out B: Thumbstick L: Headphone Jack G: SD Card Slot C: Power On/Off H: SDI In M: LP-E6 Battery Slots D: Capture I: SDI Out E: Removable Bumper J: HDMI In Monitor Startup Connect power to the 503 Bright monitor using an L-Series style battery, then follow the on-screen...
- Page 3 SmallHD User Manual Follow the instructions to complete online registration and activate your warranty at activate.smallhd.com PageOS 4 Overview The PageOS 4 interface allows users to configure and assign specific image analyzing tools and/ or features to up to eight customizable pages. Users can access those tools by navigating to the corresponding page on the monitor, instead of enabling or disabling features individually.
- Page 4 SmallHD User Manual • Press BACK BUTTON or thumbstick DOWN to access Pages View. • Navigate thumbstick LEFT and RIGHT to cycle through Pages. • Navigate thumbstick UP or PRESS thumbstick IN to select desired Page. Adding New Pages To create a new page from either a fresh workspace, a template, or a specific utility, navigate to the right-hand side of the Pages View.
