SmallHD User Manual
Cine 7 Quick Start Guide

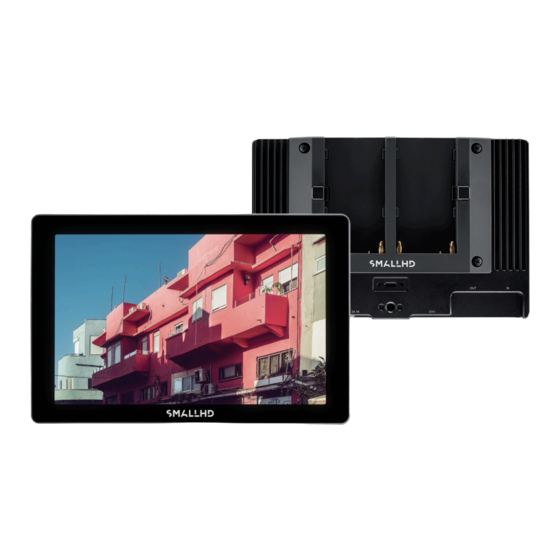

Cine 7 is the ultimate 7" on-camera HD monitor for cinematographers, offering a color accurate
wide-gamut display, cinema camera control, and 4K and HDR compatibility. View your production in
full sunlight thanks to 1800 nits of brightness and save your favorite tools, functions, and setting
pages in one tap with PageOS 4. The Full HD 7-inch IPS LCD display with 1920x1200 resolution
ensures a clear look at your production, while 10-bit color processing in 100% DCI-P3 offers color
accuracy. This guarantees the image on screen reflects what's being captured by the camera. The
Cine 7 features two 3G SDI inputs, with the second input doubling as a loop out, an HDMI input with
an HDMI loop through, a Sony L-Series dual battery bracket, and the option to add on a Gold Mount
or V-Mount battery plate attachment.
Cine 7 Quick Start Guide
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Small HD Cine 7
Summary of Contents for Small HD Cine 7
- Page 1 This guarantees the image on screen reflects what’s being captured by the camera. The Cine 7 features two 3G SDI inputs, with the second input doubling as a loop out, an HDMI input with an HDMI loop through, a Sony L-Series dual battery bracket, and the option to add on a Gold Mount or V-Mount battery plate attachment.
-
Page 2: Table Of Contents
SmallHD User Manual TABLE OF CONTENTS ACTIVATE WARRANTY ..........................3 PHYSICAL PROPERTIES ..........................3 POWER AND CONNECT ..........................4 PAGEOS 4 OVERVIEW ..........................5 • General Layout ............................5 • Basic Navigation ........................... 6 • Feed ................................ 7 • Display .............................. -
Page 3: Activate Warranty
(you may need to remove your battery to see it). You will also want to have a copy of your invoice from your purchase to confirm the purchase date. PHYSICAL PROPERTIES Cine 7 Quick Start Guide Page 3... -
Page 4: Power And Connect
POWER AND CONNECT POWER 1. Connect power to the monitor using a L-Series style battery or an alternative power source. 2. Press the power button. INPUT/OUTPUT • Video signals via HDMI up to 4Kp30 Cine 7 Quick Start Guide Page 4... -
Page 5: Pageos 4 Overview
The PageOS 4 interface allows users to configure and assign specific image analyzing tools and/ or features to up to eight customizable pages. Users can access those tools by navigating to the corresponding page on the monitor, instead of enabling or disabling features individually. General Layout Cine 7 Quick Start Guide Page 5... -
Page 6: Basic Navigation
• Swipe left and right between custom pages • Slide you finger down for a view of all your preset pages • Swipe all the way left to access your deep settings menu (Calibration, Profiles, etc) Cine 7 Quick Start Guide Page 6... -
Page 7: Feed
Select an input to display its image -- configure a source to unlock log conversions into HDR and SDR color spaces. Color Pipe Follow the Wizard instructions to assign and configure color space and curve transformations, to enable HDR and SDR from incoming log-based sources. Cine 7 Quick Start Guide Page 7... -
Page 8: Display
Adjust the audio output level for the headphone jack and/or monitor speaker. Image Rotate Image Rotate options enable upside-down mounting - or enable Mirroring for when the monitor must face the subject. Interlace Cine 7 Quick Start Guide Page 8... -
Page 9: Capture
UI Lock Once enabled, pressing and holding on the touchscreen for five seconds will lock the UI. Repeating the process will unlock the UI. Language Change the language of the internal menu system. Cine 7 Quick Start Guide Page 9... -
Page 10: User
Save or load the entire monitor’s configuration to an SD card, great for keeping consistent settings across several monitors. Settings: System Firmware Firmware can be updated by inserting an SD card with a compatible update file. Cine 7 Quick Start Guide Page 10... -
Page 11: Additional Resources And Fcc Compliance
SmallHD User Manual Factory Reset Reset the monitor settings to its original factory settings, with the option to clear registration and calibration. ADDITIONAL RESOURCES AND FCC COMPLIANCE Cine 7 Quick Start Guide Page 11...
