RIGGING

Attention! The installation must be carried out by qualified service personal only. Improper installation can re-
sult in serious injuries and /or damage to property. Overhead rigging required extensive experience! Working
load limits should be respected, Certified installation materials should be used, the installed device should be
inspected regularly for safety.

OPERATION INSTRUCTIONS

1
2
3

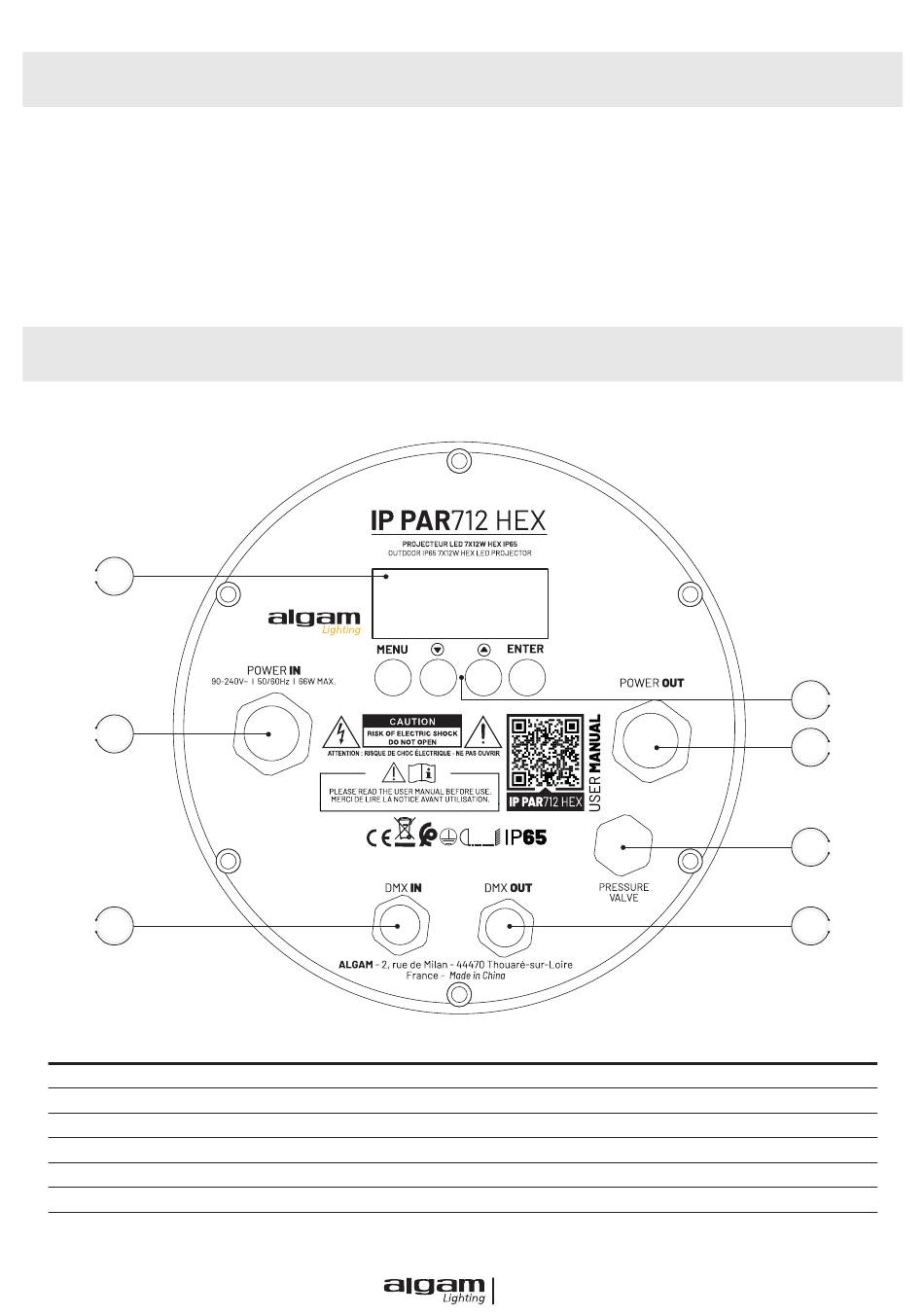

FUNCTION
1 Digital display
2 Connector/cable POWER IN
3 DMX IN
4 Control buttons
5 Connector/cable POWER OUT
6 Pressure valve
7 DMX OUT
0.5
m
DESCRIPTION
For setting model
Power input socket
3PIN male XLR interface for FMX communication
Navigating menus and functions
Power output connect with next light
Eliminates moisture and internal pressure
3PIN female XLR interface for FMX communication
