SAFETY INSTRUCTIONS

MAINTENANCE / SERVICE

• Never attempt to disassemble, repair or modify the unit yourself. Otherwise, the warranty becomes void. Repairs by
unqualified persons may result in damage or malfunction. Please contact the nearest authorized service center. The light
source contained in this fixture should only be replaced by the manufacturer or its service agent or a person of equivalent
qualification.
• Screens, lenses or UV filters should be replaced if they are visibly damaged to an extent that compromises their
effectiveness, such as by deep cracks or scratches.
• The lamp should be replaced if it has been damaged or deformed by heat.
• Disconnect the unit from the mains before servicing.
• If the cable or flexible outer cord of this fixture is damaged, it must be replaced with a special cable or cord from the
manufacturer or its service agent only.
• Never immerse the unit in water or any other liquid. Wipe only with a slightly damp cloth.
CAUTION : To reduce the risk of fire replace fuse with same type and rating.
•

PRODUCT INSTALLATION

POWER SUPPLY

Please use the attached power, note that power voltage and frequency are the same as the marked voltage and
frequency of device when connecting power. Every device's power should be connected separately, so that de-
vice can be controlled individually.
CABLE SPEC.
CABLE (EU) CABLE (US)
Brown Black
Light Blue White
Yellow/Green Yellow/Green

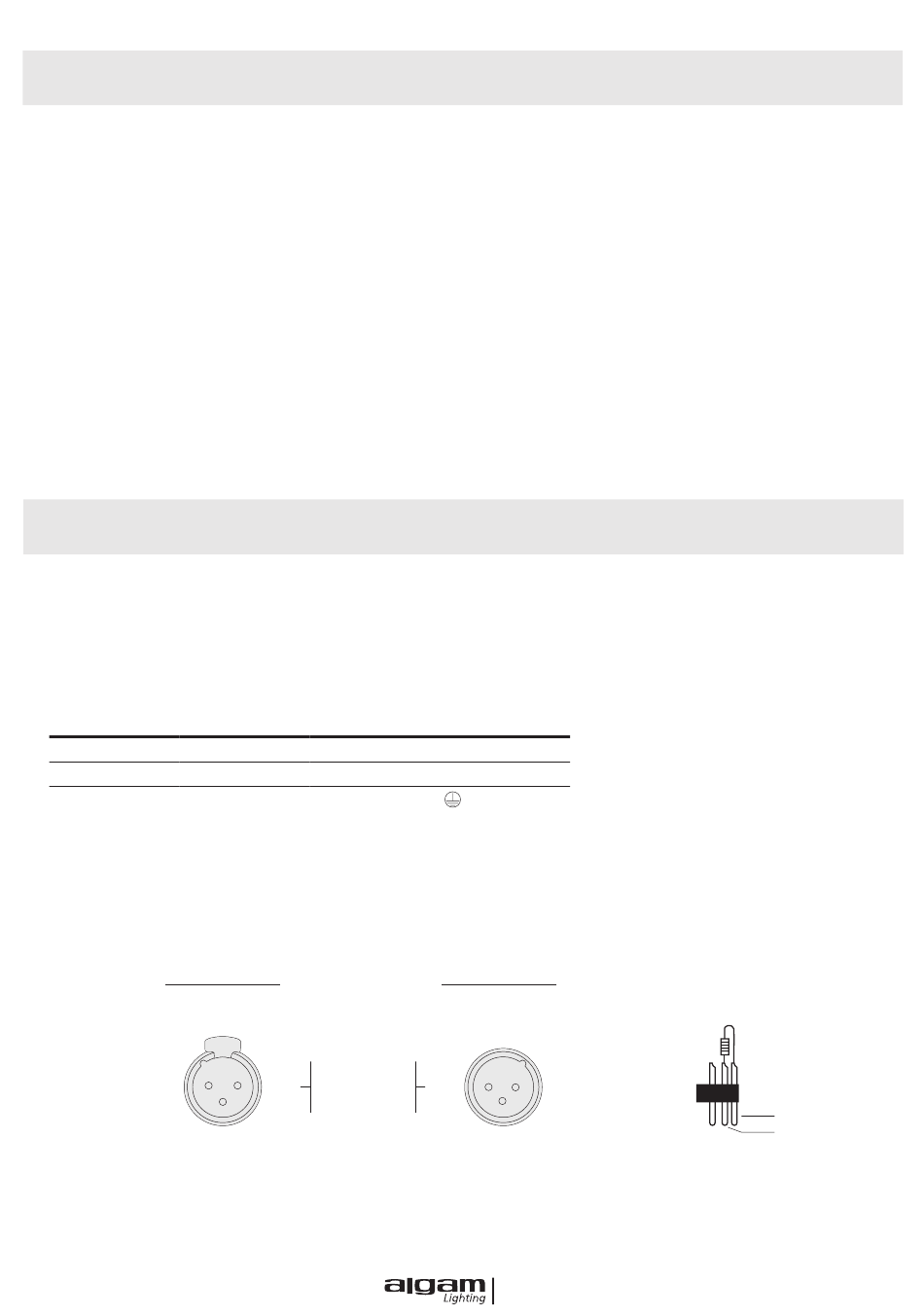

DMX CONNECTION

Connection between laser lights and DMX must use the shied cable of diameter more than 0.5mm. Please use
the attached 3 pin XL plug/socket to connect the DMX output/input interface. The connection between socket
and cable as below (note the plug/socket's 3 pin number and position).
DMX-OUTPUT
XLR mounting-sockets (rear view)
2
When using standard DMX512 control signal, the last device's output interface must be connected to a DMX plug.
This plug is putting a 120 ohm resistance between "canon" plug's 2 pin and 3 pin. Showing as below pic. Sticking
this plug into the last device's signal output interface, it will avoid the interference during the process of signal
transmission.
PIN
Live
Neutral
Earth
1 ∙ Shield
2 ∙ Shield (-)
1
3 ∙ Shield (+)
3
INTERNATIONAL
L
N
DMX-INTPUT
XLR mounting-plugs (rear view)
2
1
3
P.14
PIN3
PIN2
