INSTRUCTION MANUAL
FREQUENCY TRANSMITTER
BEFORE USE ....
Thank you for choosing us. Before use, please check con-
tents of the package you received as outlined below.
If you have any problems or questions with the product,
please contact our sales office or representatives.
■ PACKAGE INCLUDES:
Signal conditioner ...............................................................(1)
■ MODEL NO.
Confirm Model No. marking on the product to be exactly
what you ordered.
■ INSTRUCTION MANUAL
This manual describes necessary points of caution when
you use this product, including installation and connection,
hardware setting, and basic maintenance procedures.
When you need to change software settings, please refer to
the Operation Manual for Model PU-2x (EM-9255), Section
A.
POINTS OF CAUTION
■ POWER INPUT RATING & OPERATIONAL RANGE
• Locate the power input rating marked on the product and
confirm its operational range as indicated below:
24V DC rating: 24V ±10%, approx. 90mA
■ GENERAL PRECAUTIONS
• Before you remove the unit or mount it, turn off the power
supply and input signal for safety.
■ ENVIRONMENT
• Indoor use.
• When heavy dust or metal particles are present in the
air, install the unit inside proper housing with sufficient
ventilation.
• Do not install the unit where it is subjected to continuous
vibration. Do not subject the unit to physical impact.
• Environmental temperature must be within -5 to +55°C
(23 to 131°F) with relative humidity within 30 to 90% RH
in order to ensure adequate life span and operation.
■ WIRING
• Do not install cables close to noise sources (relay drive
cable, high frequency line, etc.).
• Do not bind these cables together with those in which
noises are present. Do not install them in the same duct.
■ AND ....
• The unit is designed to function as soon as power is sup-
plied, however, a warm up for 10 minutes is required for
satisfying complete performance described in the data
sheet.
MG CO., LTD. www.mgco.jp
5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
(field-programmable)
MODEL

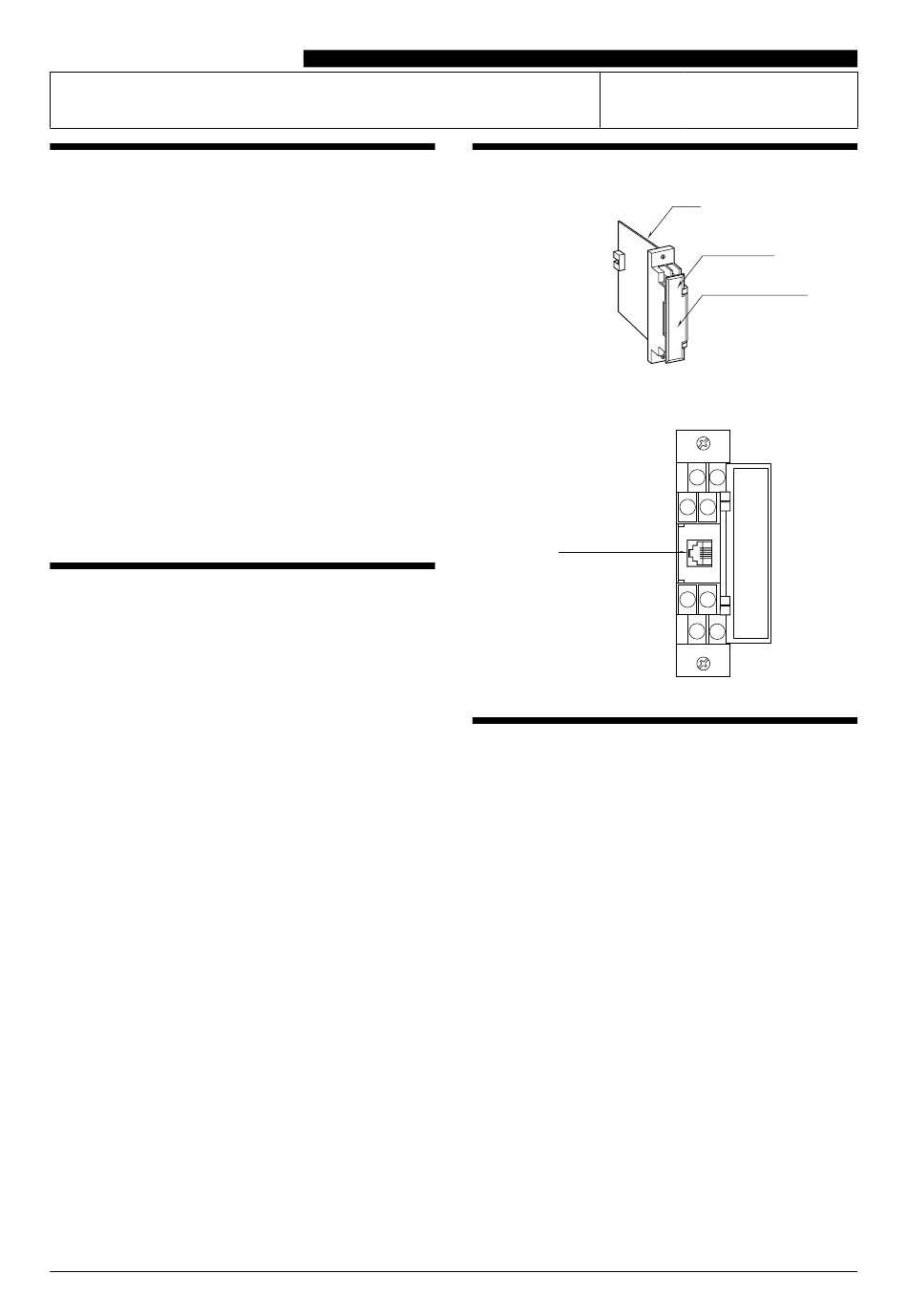

COMPONENT IDENTIFICATION
■ FRONT VIEW (with cover open)
Modular Jack
INSTALLATION
Use Standard Rack (model: 18BXx or 18KBXx).
18JPA
Body
Specifications
Front Cover
(Connection diagram
behind)
7 8
5 6
1
2
3 4
EM-1873 Rev.7 P. 1 / 5

Advertisement

loading
Need help?

Need help?

Do you have a question about the 18JPA and is the answer not in the manual?

Questions and answers

Summary of Contents for MG 18JPA

  • Page 1 • The unit is designed to function as soon as power is sup- plied, however, a warm up for 10 minutes is required for satisfying complete performance described in the data sheet. EM-1873 Rev.7 P. 1 / 5 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 2 32 (1.26) 78 (3.07) ■ CONNECTION DIAGRAM ■ TERMINAL ASSIGNMENTS INPUT OUTPUT 2 – – SENSOR EXCITATION OUTPUT 1 OUTPUT 2 MODULAR JACK PU-2x POWER EM-1873 Rev.7 P. 2 / 5 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 3 X (16) : XXX.XX Y (16) : XXX.XX Modification Code S: Modifiable at any time. P: Modifiable only when the MAINTENANCE SWITCH is in the “PRG” mode. EM-1873 Rev.7 P. 3 / 5 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 4 D: No modification (writing) possible. Used only for monitoring (reading). S: Modifiable at any time. P: Modifiable only when the MAINTENANCE SWITCH is in the “PRG” mode. EM-1873 Rev.7 P. 4 / 5 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 5 LIGHTNING SURGE PROTECTION We offer a series of lightning surge protector for protec- tion against induced lightning surges. Please contact us to choose appropriate models. EM-1873 Rev.7 P. 5 / 5 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
