Sony MICROFILM CDP-502ES Service Manual

SPECIFICATIONS
COMPACT DISC PLAYER
System Compact disc digital audio system
Disc Compact disc
Laser Semiconductor laser (A = 780 nm)
Laser. output
Spindle speed
Scan velocity
Error correction
Max.0.6 mW *
*This output is the value measured at a
distance of about 1.6 mm from the objective
lens surface on the Optical Pick-up Block.
200 r.p.m. to 500 r.p.m. (CLV)
1.2 — 1.4 misec.
Sony Super Strategy Cross Interleave
'Reed Solomon Code
Number of channels 2
D-A conversion 16-bit linear
Frequency response 2 — 20,000 Hz +0.5 dB
Harmonic distortion
Dynamic range
Channel separation
Wow and flutter
Outputs
Less than 0.0025% (1 KHz)
More than 96 dB
More than 95 dB
Below measurable limit
Line outputs
FIXED (phono jacks)
Output level 2 V rms (at MSB)
Load. impedance over 10 kilohms
VARIABLE (phono jacks)
Disc
Track pitch
Sampling frequency
Quantization
Modulation system
Transfer rate
General
Power requirements
Power consumption
Dimensions
Weight
CDP-620ES:
US Model
Canadian Model
CDP-502ES:
AEP Model
UK Model
E Model
1.6 ym
44.1 kHz
16 bit linear quantizing/channel
EFM
2.03 Mbit/sec. (before modulation)
CDP-502ES
AEP. Model: 220 V ac
UK Model: 240 V ac
E Model: 110,120, 220 or 240 V ac adjustable
50/60 Hz
CDP-620ES
US, Canadian Model: 120 V ac, 60 Hz
16W
Approx. 430 x 80 x 335 mm (w/hid)
(17 x 34/4 x 13%/4 inches)
including projecting parts and controls
Approx. 8.5 kg (18 Ibs 12 02), net
ATTENTION AU COMPOSANT AYANT RAPFORT
A LA SECURITE!
Max. output level 2 V rms (at MSB)
Load impedance over 50 kilohms
Headphones (stereo phone jack)
28 mW at 32 ohms
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY SHADING AND MARK
A ON THE SCHEMATIC DIAGRAMS AND IN THE
PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
MICROFILM |
LES COMPOSANTS IDENTIFIES PAR UNE TRAME ET
UNE MARQUE A SUR LES DIAGRAMMES = SCHE-
MATIQUES ET LA LISTE DES PIECES SONT CRITIQUES
POUR LA SECURITE DE FONCTIONNEMENT. NE REM-
PLACER CES COMPOSANTS QUE PAR DES PIECES .
SONY DONT LES NUMEROS SONT DONNES DANS CE
MANUEL OU DANS LES SUPPLEMENTS PUBLIES PAR
SONY. ;

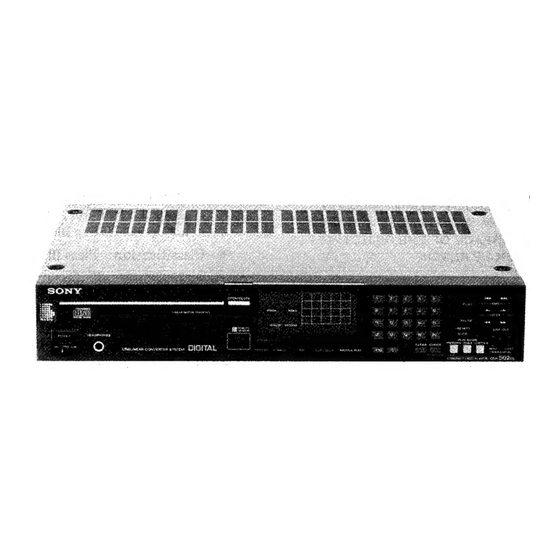

COMPACT DISK PLAYER
SONY.
