Sony CDP-597 Service Manual
Hide thumbs Also See for CDP-597:

Advertisement

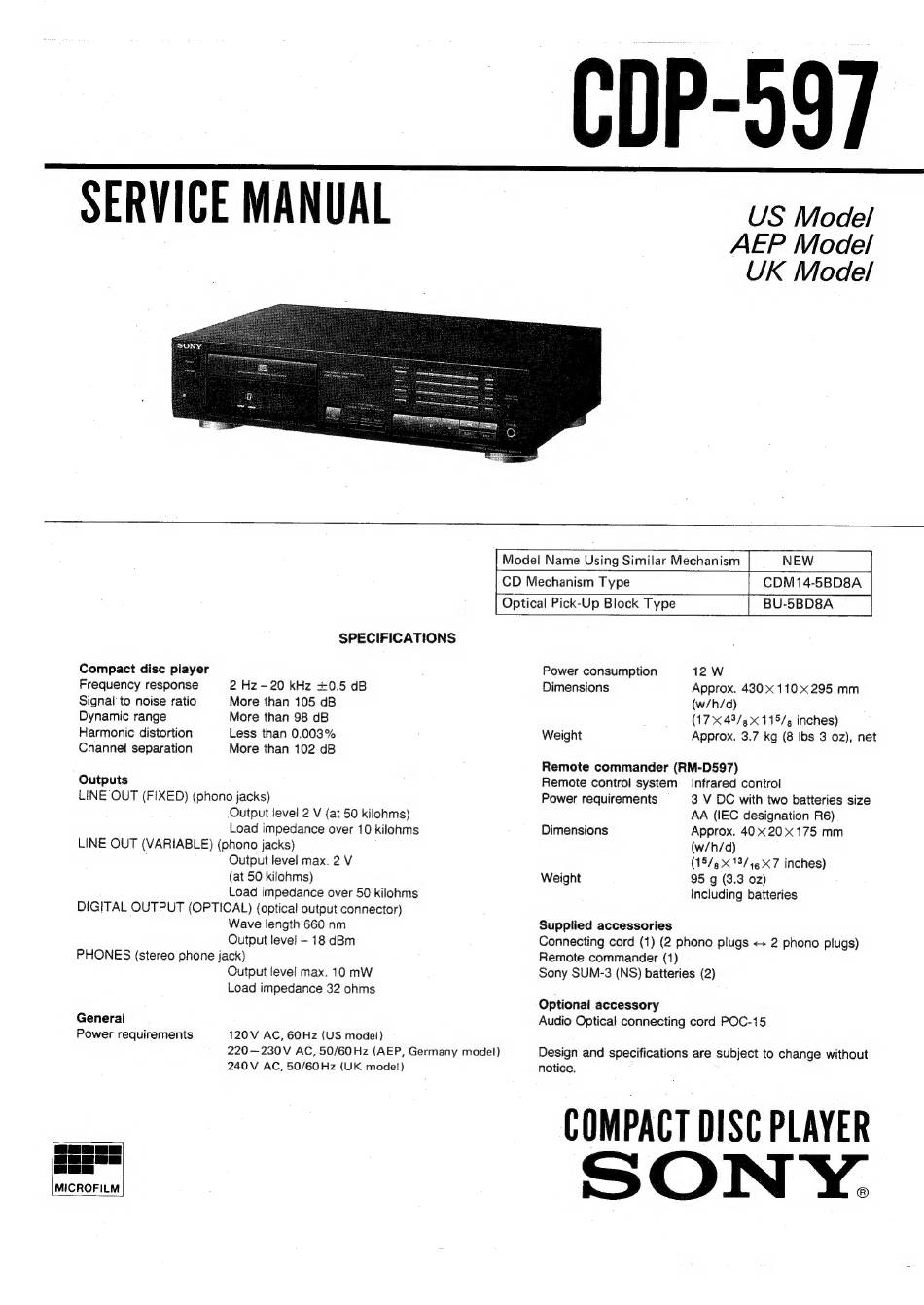

SERVICE MANUAL
CDP-597
US Model
AEP Model
UK Model
NEW
Model Name Using Similar Mechanism
CDM14-5BD8A
CD Mechanism Type
BU-5BD8A
Optical Pick-Up Block Type
SPECIFICATIONS
Compact disc player
Frequency response
Signal to noise ratio
Dynamic range
Harmonic distortion
Channel separation
2 Hz - 20 kHz +0.5 dB
More than 105 dB
More than 98 dB
Less than 0.003%
More than 102 dB
Outputs
LINE OUT (FIXED) (phono jacks)
Output level 2 V (at 50 kilohms)
Load impedance over 10 kilohms
LINE OUT (VARIABLE) (phono jacks)
Output level max. 2 V
(at 50 kilohms)
Load impedance over 50 kilohms
DIGITAL OUTPUT (OPTICAL) (optical output connector)
Wave length 660 nm
Output level - 18 dBm
PHONES (stereo phone jack)
Output level max. 10 mW
Load impedance 32 ohms
General
Power requirements
120V AC, 6OHz (US model}
220 —230V AC, 50/60Hz (AEP, Germany model)
240V AC, 50/60Hz (UK model!)
Power consumption
12 W
Dimensions
Approx. 430110295
mm
(w/h/d)
(17 x 43/3 x 115/ inches)
Weight
Approx. 3.7 kg (8 lbs 3 02), net
Remote commander (RM-D597)
Remote control system
Infrared control
Power requirements
3 V DC with two batteries size
AA (IEC designation R6)
Dimensions
Approx. 40 x 20175
mm
(w/h/d)
(18/3 X 13/467
inches)
Weight
95 g (3.3 oz)
Including batteries
Supplied accessories
Connecting cord (1) (2 phono piugs < 2 phono plugs)
Remote commander (1)
Sony SUM-3 (NS) batteries (2)
Optional accessory
Audio Optical connecting cord POC-15
Design and specifications are subject to change without
notice.
COMPACT DISC PLAYER
MICROFILM
SONY.
