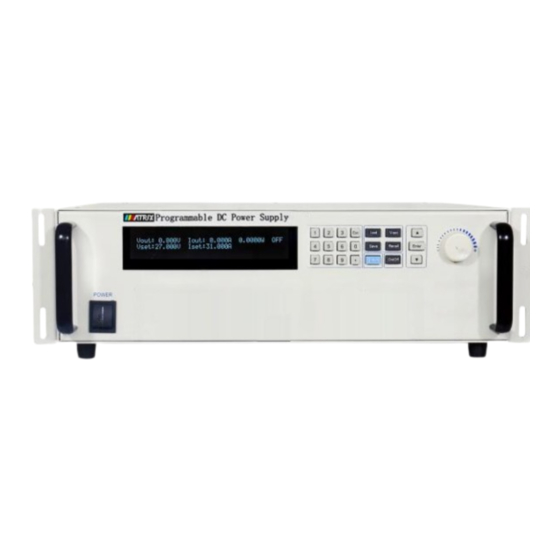

- Page 1 MPS-P Series High Power Programmable DC Power Supply User Manual PSIV3600系列可编程直 MATRIX TECHNOLOGY INC.
- Page 2 Preface Respected user: Hello! Thank you for purchasing a brand-new MATRIX instrument. In order to use this instrument correctly, please read this manual carefully before using the instrument, especially the section on "Safety Precautions". If you have read the full text of this manual, it is recommended that you keep this manual in a safe place, and place it with the instrument or in a place where you can read it at any time for future reference.
- Page 3 Products are protected by patents in China or other countries, including patents that have been obtained or are pending。 ● MATRIX TECHNOLOGY INC. reserves the right to change product specifications and prices。 ● is the registered trademark of MATRIX TECHNOLOGY INC.
- Page 4 www.szmatrix.com Verification and Correction Statement The company specifically declares that the instruments and equipment listed in this manual fully conform to the specifications and characteristics stated in the company's technical specifications. This instrument has passed the factory calibration of the company before leaving the factory, and the calibration procedures and steps are in line with the specifications and standards of the electronic inspection center.
-
Page 5: Table Of Contents
www.szmatrix.com Content CHAPTER 1 PRODUCT INTRODUCTION .............................1 CHAPTER II TECHNICAL SPECIFICATIONS ............................2 2.1 Main technical specifications ..............................2 2.2 Supplementary Features ................................2 CHAPTER 3 QUICK START ..................................3 3.1 Introduction of front and rear panels ............................3 3.2 Pre-check ......................................5 3.3 If the power supply fails to start ..............................5 CHAPTER 4 PANEL OPERATION ................................6 4.1 Keyboard arrangement .................................6 4.2 Introduction to Front Panel Operation ............................7... -
Page 6: Chapter 1 Product Introduction
www.szmatrix.com Chapter 1 Product Introduction This series of programmable DC power supply is a new generation of high-quality programmable linear DC power supply. It can display voltage, current, power and other parameters in multiple windows at the same time. This series of products is equipped with RS232 communication interface. It can be combined with other instruments arbitrarily and integrated into a test system with special functions to meet the measurement requirements in different occasions. -
Page 7: Chapter Ii Technical Specifications
www.szmatrix.com Chapter 2 Technical Specifications 2.1 Main technical specifications Technical Specification Sheet: model MPS-3030P MPS-3040P MPS-3050P MPS-5030P MPS-6020P AC 220V/110V±10% 50Hz/60Hz Input voltage Voltage 0~30V 0~30V 0~30V 0~30V 0~60V Rated output voltage current 0~30A 0~40A 0~50A 0~30A 0~20A ≤0.02%+15mV ≤0.02%+15mV ≤0.02%+15mV ≤0.02%+15mV ≤0.02%+15mV... -
Page 8: Chapter 3 Quick Start
www.szmatrix.com Chapter 3 Quick start This chapter will briefly introduce the appearance and basic functions of this series of programmable DC power supplies, so that you can quickly understand the four-channel programmable DC power supply. At the same time, it will tell you the basic inspections to be done after getting the power supply to ensure the normal operation of this product. -
Page 9: Pre-Check
www.szmatrix.com The rear panel layout of the programmable DC power supply is shown in the following figure. Figure 3.2 Programmable DC Power Rear Panel ① Output terminal, ② Voltage compensation terminal ③ Heat dissipation hole ④ Ground terminal ⑤ RS-232 communication interface ⑥... - Page 10 www.szmatrix.com 2. Connect the power cord and turn on the power After power-on, the power supply first performs a system self-test, and then enters the standby state. 3.3 If the power supply does not turn on Use the methods below to resolve problems you may have when turning on the power.
-
Page 11: Chapter 4 Panel Operation
www.szmatrix.com Chapter 4 Panel Operation This chapter will introduce the operation of the front panel of the power supply in detail, divided into the following parts: Keyboard arrangement Front panel operation introduction Voltage setting operation Current setting operation Storage operations Output on/off operation Menu operation 4.1 Keyboard arrangement... -
Page 12: Voltage Setting Operation
www.szmatrix.com Shift Composite keys, used in combination with multi-function keys On/off Control power output status ▲ Up key (select a menu item in the menu operation, and the output voltage can be increased in the working interface) ▼ Down key (select a menu item in the menu operation, and the output voltage can be reduced in the working interface) Enter Enter... -
Page 13: Current Setting Operation
www.szmatrix.com 4.4 Current setting operation The setting range of the current is between 0A and the full rated output current. You can use the following two methods to set the output current value through the front panel. Method 1: Press the I-Set key, then press the number keys 0 to 9 to input the current value, and then press the Enter key to confirm the current value. -
Page 14: Menu Settings
www.szmatrix.com The OCP setting value can be changed by the numeric keys and knob, the method is the same as the current setting. OCP state setting, OFF means the function is closed, ON means the function is open. Remarks: 1. Press "ESC" to exit after setting. 2. - Page 15 www.szmatrix.com 57600 115200 Modbus SCPI Command terminator selection CR+LF LF+CR Sense Reset Exit Configure Min Voltage=0.000V Min Volt Max Voltage=31.000V Max Volt Min Current=0.000A Min Curr Max Current=51.000A Max Curr List test List1 Load function List2 List3 List4 List5 List1 Repeat List2 Edit...
-
Page 16: List (List Test Function)
www.szmatrix.com 7. communication terminator：LF 8.Sense : OFF 4.8 LIST (list test function) In standby mode, press the "shift" key and then press the number key "1" to enter the menu setting function, press the ▲ and ▼ keys to switch to the "List" menu option, and press the "Enter" key to enter the "List" display as follows: Load list test. - Page 17 www.szmatrix.com ① Current step parameters. ②The steps to be executed. ③ Current step parameter timing. ④The parameters that will be executed in the next step. ⑤ The actual voltage and current output in the current step. ⑥ Current status indication. 4.8.2 Edit list test when choosing press the "Enter"...
- Page 18 www.szmatrix.com After setting the total list steps, press the "Enter" key to automatically enter the list mode editing, the display is as follows: ①List test execution mode. ② Repeat the execution of the list parameter. ③ After the list parameter is executed, the output state is maintained. ④...
-
Page 19: Chapter 5 Remote Operation Mode
www.szmatrix.com ④List step dwell time parameters, use the numeric keyboard to modify the parameters, press "Enter" to confirm and enter the next parameter setting. Chapter 5 Remote Operation Mode 5.1 Communication between the power supply and the host The power supply can be connected to the PC host interface through the DB9 plug on the rear panel. The following content can help you understand how to control the output of the power supply through the host computer. - Page 20 www.szmatrix.com TXD（send） GND（land） Safety Do not install substitute parts on the instrument yourself, or perform any unauthorized modifications. Please send the instrument to our company's maintenance department for maintenance to ensure that it can be used safely. Refer to this manual for specific warning or caution information to avoid personal injury or damage to the instrument.
- Page 21 www.szmatrix.com Quality assurance The company provides a one-year quality guarantee for the materials and manufacturing of this product from the date of shipment. Maintenance service If this product needs to be repaired, please return the product to the maintenance unit designated by our company.
