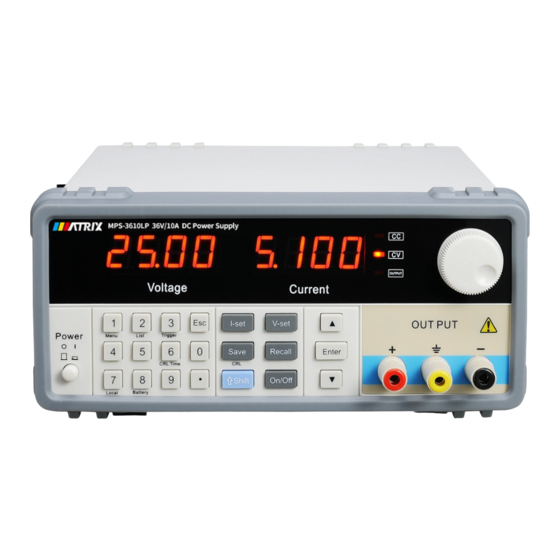

- Page 1 MATRIX TECHNOLOGY INC. www.szmatrix.com sales@szmatrix.com User Manual MPS-3600LP Series Programmable DC Power Supply MATRIX TECHNOLOGY INC.
-
Page 2: Table Of Contents
MATRIX TECHNOLOGY INC. www.szmatrix.com sales@szmatrix.com Contents Chapter 1 Product Introduction.........................1 Chapter 2 Technical Specification......................2 2.1 Main technical specifications......................2 2.2 Supplementary characteristics.....................2 Chapter 3 Quick Start..........................3 3.1 Introduction to front and rear panels...................3 3.2 Advance inspection........................5 3.3 Failture of power supply......................5 Chapter 4 Panel Operation........................6... -
Page 3: Chapter 1 Product Introduction
Chapter 1 Product Introduction MPS-3600LP series is the high-quality programmable DC power supply of new generation, and this series of products can be equipped with communication interface. MPS-3600LP series power supply has the characteristics of both desktop type and system type, and can be freely matched with other... -
Page 4: Chapter 2 Technical Specification
MATRIX TECHNOLOGY INC. www.szmatrix.com sales@szmatrix.com Chapter 2 Technical Specification 2.1 Main technical specifications Technical specifications form of MPS-3600LPLP series power supply: Model MPS-3603LP MPS-3605LP MPS-3610LP MPS-2010LP MPS-6003LP MPS-6005LP Rated input voltage AC220V/110V±5% Rated output voltage 0-36V 0-36V 0-36V 0-20V 0-60V... -
Page 5: Supplementary Characteristics
This chapter will briefly introduce the appearance and basic functions of MPS-3600LP series power supply, so that you can get quick understanding of MPS-3600LP series power supply. At the same time, you are told of the basic inspection that you need to do after getting the power supply, so as to ensure the normal operation of this product. -
Page 6: Advance Inspection
MATRIX TECHNOLOGY INC. www.szmatrix.com sales@szmatrix.com The layout of rear panel of MPS-3600LPLP series is shown in the Figure below. Figure 3.2 Rear Panel of MPS-3600LP Series Power Supply ① Serial number ② Vent ③ RS-232 ④ 110V/220V switch ⑤ fuse ⑥Power socket... -
Page 7: Failture Of Power Supply
MATRIX TECHNOLOGY INC. www.szmatrix.com sales@szmatrix.com After the power is on, the power supply will conduct self-inspection first, and then go into standby state. Warning: A three-core power supply cord is provided when the power supply leaves the factory, and your power supply shall be connected to the three-core junction box. Before operating this power supply, you shall firstly make sure good grounding of the power supply. - Page 8 MATRIX TECHNOLOGY INC. www.szmatrix.com sales@szmatrix.com Menu operation On / off operation 4.1 Keyboard arrangement Multifunctional key Functional key Key description Key position Function description 0-9： Numeric keys Local (numeric key “7”): Local operation (effective if pressed with shift at the same time, disconnected from the computer) Battery (numeric key “8”):...
-
Page 9: Access Operation
MATRIX TECHNOLOGY INC. www.szmatrix.com sales@szmatrix.com When the instrument is in the output state, the current window shows an actual current, and while the instrument is closed, the current window shows a setting current. 4.3 Voltage setting operation The range of voltage setting is between 0V and the maximum voltage setting value, and you can use the following three methods to set the output voltage value through the front panel. -
Page 10: Chapter 6 Scpi Communication Protocol
SCPI is a kind of standard command used for programmable instruments, which defines a set of command rules of communication. The command used for MPS-3600LP series power supply is divided into two big types: basic command (IEEE-488.2 common command sets) and the command sets designated by MPS-3600LPLP series. -
Page 11: Basic Commands
MATRIX TECHNOLOGY INC. www.szmatrix.com sales@szmatrix.com root path AA will be visited. 3) [:] AA:DD:HH indicates the current root path is AA, and HH under the sub-path DD under the root path AA will be visited. As for this kind of command, many commands can be sent in a message at the same time and shall be separated with semicolon (;). -
Page 12: Measurement Command
MATRIX TECHNOLOGY INC. www.szmatrix.com sales@szmatrix.com SYST:REM <LF> After it is successfully sent, the front panel of power supply is set as remote control model, at this time, the keys on the operation front panel are invalid. Only by pressing “Shift” + “numeric key 7”, or sending command [:]SYST:LOC, the power supply can be switched to be controlled by its front panel. -
Page 13: Setting Command
MATRIX TECHNOLOGY INC. www.szmatrix.com sales@szmatrix.com output voltage value of current power supply is 10.0000V, and the output current value is 0.00000A. 6.2.4 Setting command Command [:]OUTPut <bool> 1. This command is used for setting whether the output of power supply has been opened or not. - Page 14 MATRIX TECHNOLOGY INC. www.szmatrix.com sales@szmatrix.com 2. Relevant command: inquire the current setting value of power supply, the maximum value or minimum value command [:]CURR? MAX 丨 MIN Parameter of return command: numerical value For example: 1) If inquiring the setting current value of power supply, send command: [:] CURR? <LF>...
- Page 15 MATRIX TECHNOLOGY INC. www.szmatrix.com sales@szmatrix.com MPS-3600LPLP series programmable DC power supply fully meets various technical standards stated in the Manual. Quality Assurance The company offers one-year quality assurance for the materials and production of this product since the day of delivery.
