Pit Boss MEMPHIS ULTIMATE PBMEMU1 Assembly Manual

Pit Boss MEMPHIS ULTIMATE PBMEMU1 Assembly Manual

4-in-1 combination grill
Hide thumbs Also See for MEMPHIS ULTIMATE PBMEMU1:
Table of Contents

Advertisement

Quick Links

4-IN-1 COMBINATION GRILL
IMPORTANT, READ CAREFULLY, RETAIN
FOR FUTURE REFERENCE. MANUAL MUST
BE READ BEFORE OPERATING!
For outdoor and household use only. Not for commercial use.
Fuel and accessories not included.
WARNING: PLEASE READ THE ENTIRE MANUAL
BEFORE INSTALLATION AND USE OF THIS
ELECTRIC APPLIANCE. FAILURE TO FOLLOW THESE
INSTRUCTIONS COULD RESULT IN PROPERTY
DAMAGE, BODILY INJURY OR EVEN DEATH.
CONTACT LOCAL BUILDING OR FIRE OFFICIALS
ABOUT
RESTRICTIONS
AND
INSTALLATION
INSPECTION REQUIREMENTS IN YOUR AREA.
A S S E M B L Y G U I D E
MEMPHIS ULTIMATE
MEMPHIS ULTIMATE
ITM#0354675
MODEL: PBMEMU1
PART: 10956
DO NOT REMOVE
®
AUSTRALIA AND NEW ZEALAND
GAS SAFETY CERTIFICATION
NO. GMK10815

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MEMPHIS ULTIMATE PBMEMU1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pit Boss MEMPHIS ULTIMATE PBMEMU1

Summary of Contents for Pit Boss MEMPHIS ULTIMATE PBMEMU1

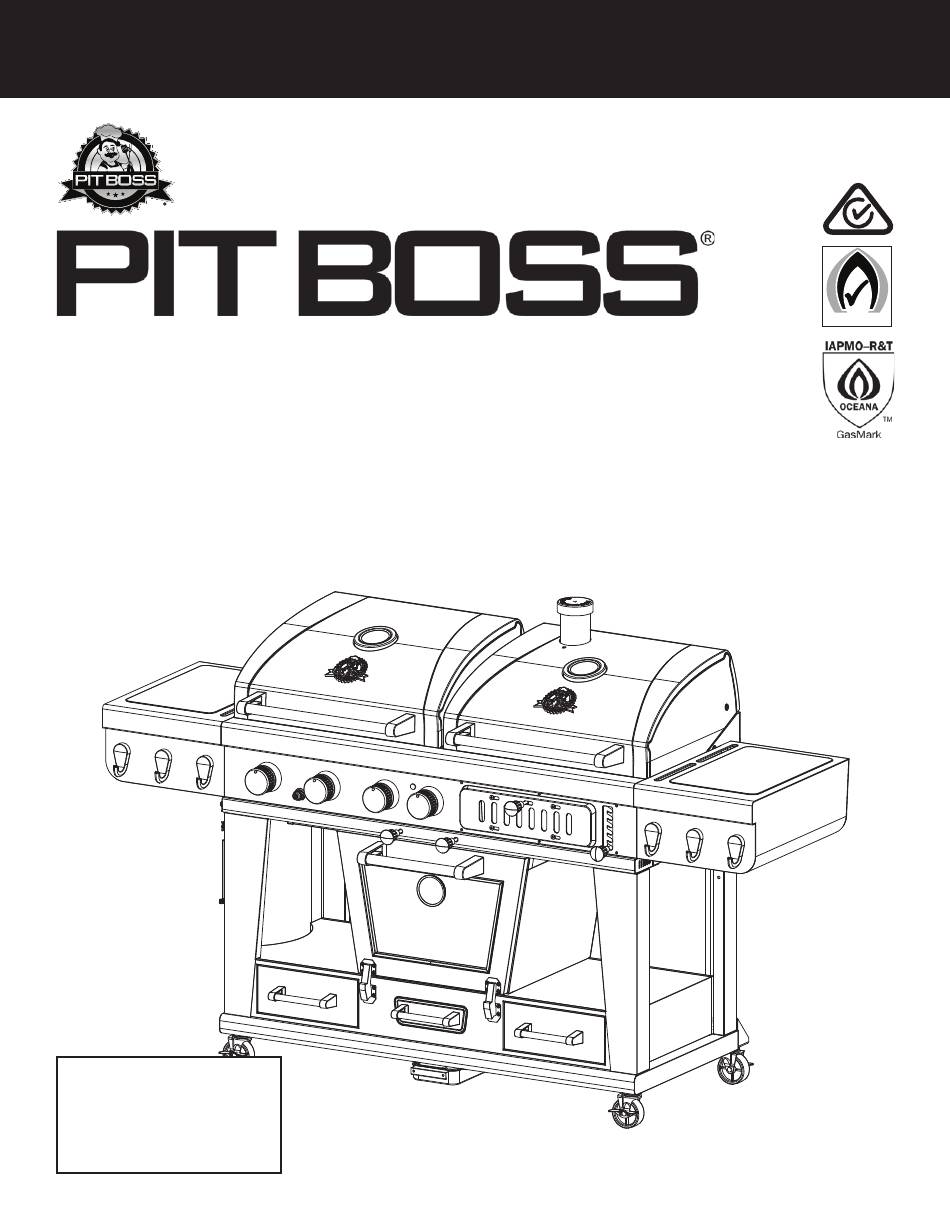

  • Page 1 A S S E M B L Y G U I D E ITM#0354675 MODEL: PBMEMU1 PART: 10956 DO NOT REMOVE ® AUSTRALIA AND NEW ZEALAND MEMPHIS ULTIMATE MEMPHIS ULTIMATE GAS SAFETY CERTIFICATION 4-IN-1 COMBINATION GRILL NO. GMK10815 IMPORTANT, READ CAREFULLY, RETAIN FOR FUTURE REFERENCE.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Parts & Specs ..............4 COPYRIGHT NOTICE Assembly Preparation ............6 Copyright 2022. All right reserved. No part of this manual may be copied, transmitted, transcribed, stored in a retrieval Assembly Instructions system, in any form or by any means without expressed written permission of, Mounting The Left Front Support Leg ........6 Mounting The Right Front Support Leg ........6...

  • Page 4: Parts & Specs

    PARTS & SPECS Part Description Part Description Thermometer Smoker Cooking Grid (Medium) Thermometer Bezels Smoker Cooking Grid (Small) Smoke Stack Lid Water Pan Smoke Stack Water Pan Support Warming Racks Smoker Door Handle Lid Handles Smoker Thermometer Lid Handle Standoff's Smoker Door Left Side Table Electric Wire Back Cover...
  • Page 5 18 19 31.1 31.2 MODEL ASSEMBLED (WxDxH) WEIGHT INPUT 1,880 X 667 X 1,230 MM / 98 KG / PBMEMU1 31.5 MJ/H 74.0 X 26.2 X 48.4 IN. 216 LB COOKING AREA GAS GRILL CHARCOAL GRILL ELECTRIC SMOKER TOP - 1,040 CM² / 161.2 IN² TOP - 1,040 CM²...

  • Page 6: Assembly Preparation

    ASSEMBLY PREPARATION Parts are located throughout the shipping carton, including underneath the grill. Inspect the grill, parts, and hardware blister pack after removing from the protective shipping carton. Discard all packaging materials from inside and outside of the grill before assembly, then review and inspect all parts by referencing the parts list. If any part is missing or damaged, do not attempt to assemble.

  • Page 7: Mounting The Back Support Legs

    3. MOUNTING THE BACK SUPPORT LEGS Parts Required: Left Rear Support Leg (#43) Right Rear Support Leg (#44) Caster Support Plates (#54) M6x60 mm Screw (#C) Installation : • Mount the Left Rear Support Leg and the Right Rear Support Leg to the Lower Cabinet Assembly using two screws in each leg, as shown in illustration 3A.

  • Page 8: Mounting The Knob To The Air Damper

    6. MOUNTING THE KNOB TO THE AIR DAMPER Parts Required : Knob (#29) Smoker Cabinet Assembly (#32) M5x10 mm Screw (#B) Installation : • Mount the Knob to the Air Damper on the back side of the Smoker Cabinet. Secure with screw from the inside.

  • Page 9: Placing The Water Pan

    10. PLACING THE WATER PAN Parts Required : Water Pan (#36) Water Pan Support (#37) Installation : • Slide the Water Pan Support into the lowest rails of the Smoker Cabinet Assembly. Note illustration 10A. • Place the Water Pan onto the Water Pan Support. Note illustration 10B.

  • Page 10: Mounting The Thermometer Into The Smoker Door

    13. MOUNTING THE THERMOMETER INTO THE SMOKER DOOR Parts Required : Smoker Thermometer (#39) Installation : • First, remove the washer and wing nut from the Smoker Thermometer. • Insert the Smoker Thermometer stem through the mounting hole in the front of the Smoker Door Assembly.

  • Page 11: Mounting The Grill Onto The Cart

    16. MOUNTING THE GRILL ONTO THE CART Parts Required : Grill Chambers Assembly (#13) M6x15 mm Screw (#A) M6x10 mm Screw (#D) Installation : • First, remove the twist tie on the front of the Grill Chambers Assembly. Pull out the Smoker Electric Wires and Smoker Temperature Sensor from the back side of Control Panel.

  • Page 12: Attaching The Electrical

    18. ATTACHING THE ELECTRICAL BACK COVER Parts Required : Electric Wires Back Cover (#41) M6x15 mm Screw (#A) Installation : • First, remove the pre-assembled two screws from the bottom table of the Cart. Attach the Electrical Back Cover to the back of the Smoker Cabinet. NOTE: It is recommended to assemble the screws on the top side first and then the bottom.

  • Page 13: Installing The Grease Tray Components

    21. INSTALLING THE GREASE TRAY COMPONENTS Parts Required : Grease Drip Tray Guides (#26) Grease Tray (#27) Grease Cup (#28) Knob (#29) M5x10 mm Screw (#B) M6x10 mm Screw (#D) Installation : • Install the two Grease Drip Tray Guides to the bottom- backside of the Gas Grill Chamber using four screws (#D).

  • Page 14: Installing The Tool Hooks

    23. INSTALLING THE TOOL HOOKS Parts Required : Left Side Table (#8) Tool Hooks (#9) Right Side Table (#10) M6x10 mm Screw (#D) Installation : 8 / 10 • On the edge of the Left Side Table with three holes, install a Tool Hook into each hole along the edge.

  • Page 15: Installing The Heat Tents

    26. INSTALLING THE HEAT TENTS Parts Required : Heat Tents (#14) Heat Tent Supports (#15) M4x10 mm Screw (#F) Installation : • First, install each of the three Heat Tent Supports to the front side of Gas Main Chamber. See illustration 26A for proper location.

  • Page 16: Placing The Control Knobs

    28. PLACING THE CONTROL KNOBS Parts Required : Black Gas Control Knobs (#16) Silver Smoker Control Knob (#17) Installation : • Place the three Black Control Knobs for each burner onto each protruding valve stem, making certain to align the flat portion of the stem with the flat portion of the Control Knob.

  • Page 17: Mounting The Smoke Stack

    31. MOUNTING THE SMOKE STACK Parts Required : Smoke Stack Lid (#3) Smoke Stack (#4) M6x10 mm Screw (#D) M6 Nuts (#J) Installation : • Remove the Smoke Stack Lid from the Smoke Stack. Insert the Smoke Stack through the Charcoal Grill Chamber Lid from the inside.

  • Page 18: Inserting The Thermometers

    34. INSERTING THE THERMOMETERS Parts Required : Thermometers (#1) Thermometer Bezels (#2) Installation : • First, remove the fiber washer and wing nut from both Thermometers. • Next, insert a Thermometer stem through a Thermometer Bezel, then into the mounting hole on the top of a Grill Chamber Lid.

  • Page 19: Installing The Battery

    37. INSTALLING THE BATTERY Part Required : AA Battery (#I) Installation : • Unscrew the igniter cap from the front control panel. Insert the Battery into the battery slot with the positive end (+) facing outward. Screw the cap back onto panel.
  • Page 20 IMPORTANT For all questions, inquiries, or customer support, please contact Genesis International Corporation Pty Ltd. +61 8 9248 9822 | service@genesiscorp.com.au WARNING: THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING WOOD DUST, SOOT AND FORMALDEHYDE, WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER, AND CARBON MONOXIDE, WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM.
