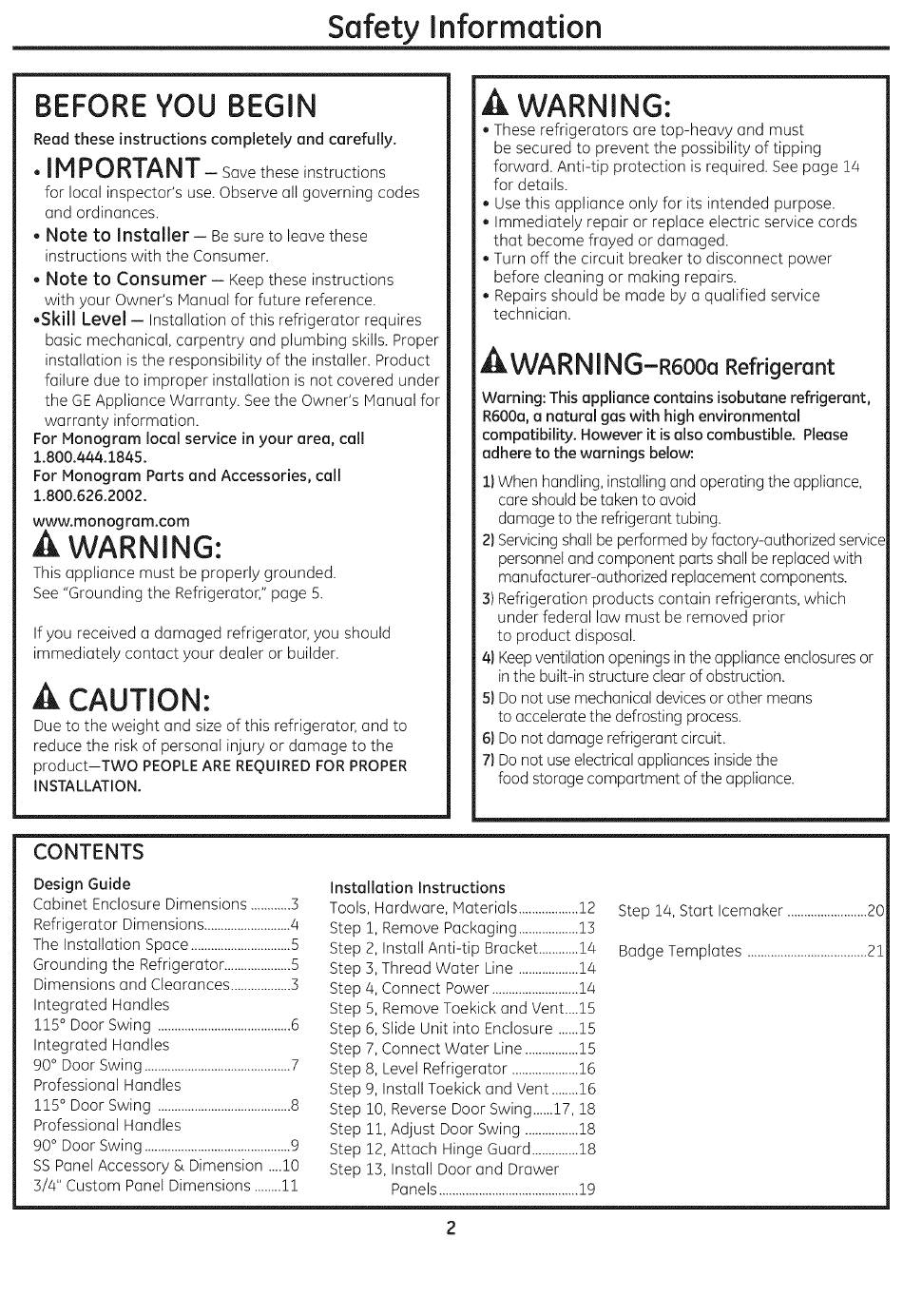

Safety Information
BEFORE YOU BEGIN
Read these instructions completely and carefully.
e IM PORTANT - Save these instructions
for local inspector's use. Observe all governing codes
and ordinances.
e Note to Installer - Be sure to leave these
instructions with the Consumer.
e Note to Consumer - Keep these instructions
with your Owner's Manual for future reference.
Skill Level - installation of this refrigerator requires
basic mechanical, carpentry and plumbing skills. Proper
installation is the responsibility of the installer. Product
failure due to improper installation is not covered uncer
the GE Appliance Warranty. See the Owner's Manual for
warranty information.
For Monogram local service in your area, call
1.800.444.1845.
For Monogram Parts and Accessories, call
1.800.626.2002.
www.monogram.com
A WARNING:
This appliance must be properly grounded.
See "Grounding the Refrigerator," page 5.
If you received a damaged refrigerator, you should
immediately contact your dealer or builder.
A CAUTION:
Due to the weight and size of this refrigerator, and to
reduce the risk of personal injury or damage to the
product-TWO PEOPLE ARE REQUIRED FOR PROPER
INSTALLATION.
A WARNING:
* These refrigerators are top-heavy and must
be secured to prevent the possibility of tipping
forward. Anti-tip protection is required. See page 14
for details.
« Use this appliance only for its intended purpose.
* Immediately repair or replace electric service cords
that become frayed or damaged.
* Turn off the circuit breaker to disconnect power
before cleaning or making repairs.
e Repairs should be made by a qualified service
technician.
A.WARNING-r600a Refrigerant
Warning: This appliance contains isobutane refrigerant,
R600qa, a natural gas with high environmental
compatibility. However it is also combustible. Please
adhere to the warnings below:
1) When handling, installing and operating the appliance,
care should be taken to avoid
damage to the refrigerant tubing.
2) Servicing shall be performed by factory-authorized service
personnel and component parts shall be replaced with
rnanufacturer-authorized replacement components.
3) Refrigeration products contain refrigerants, which
under federal law must be removed prior
to product disposal.
4} Keep ventilation openings in the appliance enclosures or
in the built-in structure clear of obstruction.
5) Do not use mechanical devices or other means
to accelerate the defrosting process.
6) Do not damage refrigerant circuit.
7) Do not use electrical appliances inside the
food storage compartment of the appliance.
CONTENTS
Design Guide installation Instructions
Cabinet Enclosure Dimensions ........... 3
Tools, Hardware, Materidls cc
12 Step 14, Start Icemaker oc
20
Refrigerator Dimensions..............
Step 1, Rernove Packaging...
13
The Installation Space ww...
Step 2, Install Anti-tio Bracket............ 14
Badge Templates cccccccssscccsseneeen 21
Grounding the Refrigerator. Step 3, Thread Water LiN€ wcccce14
Dimensions and Clearances... 3 Step 4, Connect POWER w..sccsscsseesee 14
Integrated Handles Step 5, Remove Toekick and Vent....15
115° DOOF SWING ceeecceceeeeccessseeteeceseeeenteesee 6 Step 6, Slide Unit into Enclosure ......15
integrated Handles Step 7, Connect Water LiN@ wen 15
90° DOOF SWING oer ees eee teeteeeeeeeteeeesessse 7
Step 8, Level Refrigerator .o.cccscsee 16
Professional Handles Step 9, Install Toekick and Vent........16
115° DOOr SWING woes eteececteeneeeee 8 Step 10, Reverse Door Swing......17, 18
Professional Handles
Step 11, Adjust Door Swing «0... 18
90° DOO SWING occcssssssseeessccscsesssssneneesceseesss 9
Step 12, Attach Hinge Guard... 18
SS Panel Accessory & Dimension ....10 Step 13, Install Door and Drawer
3/4" Custom Panel Dimensions ........11
POMEIS caasceccssessesssssssssssssssssesseeeeeee 19
