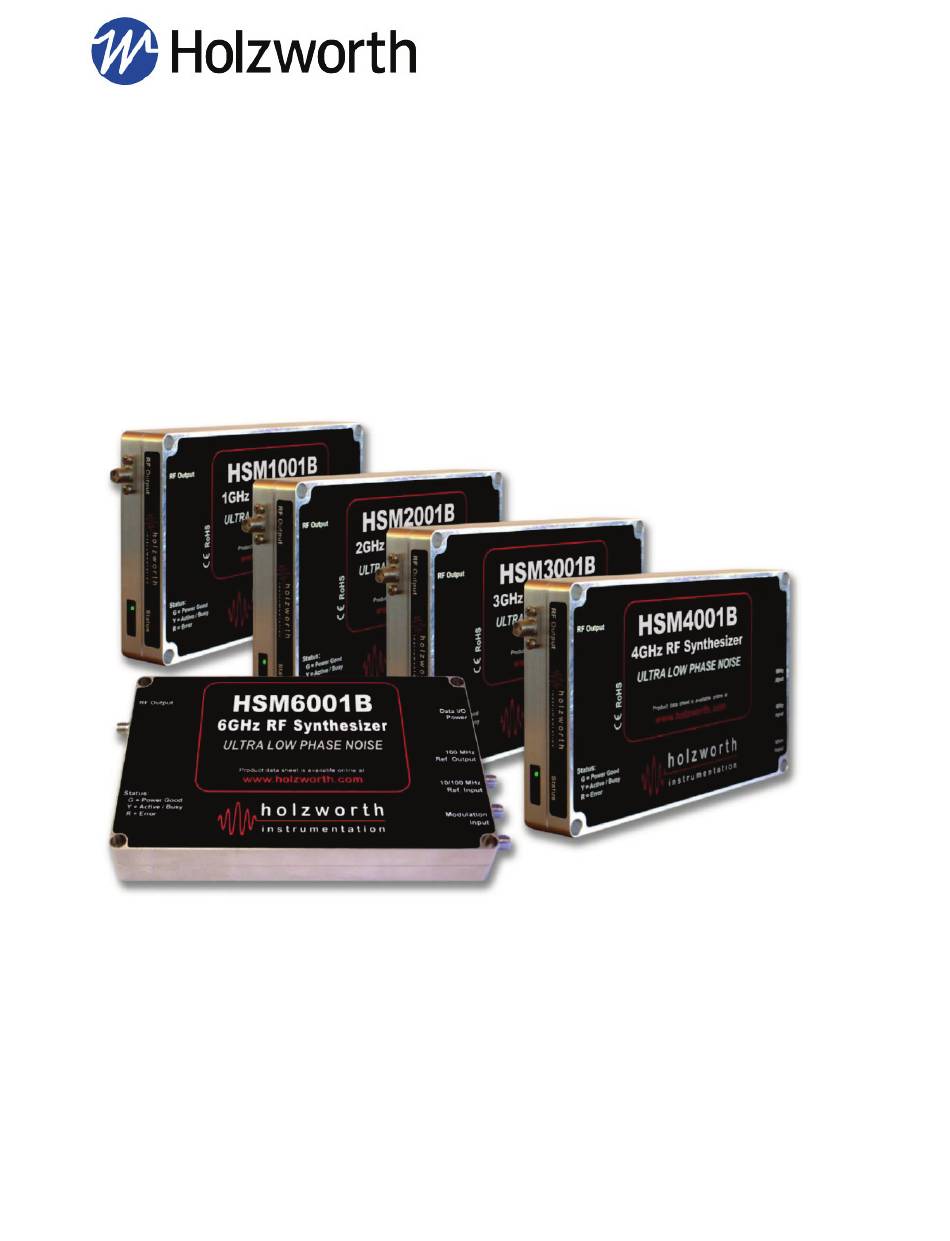

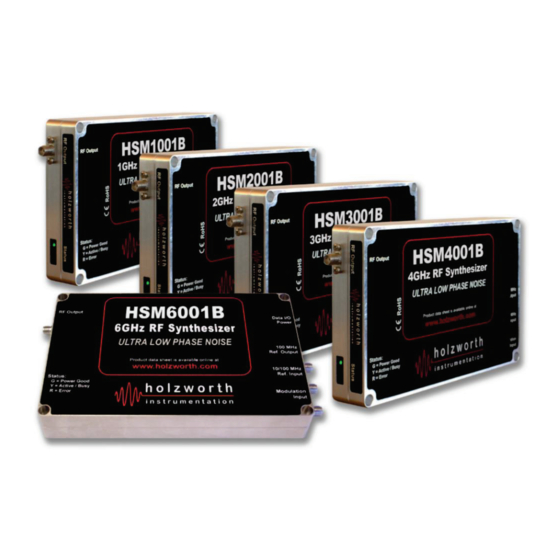

- Page 1 HSM Series Quick Start Operation Guide The following is a guide to connect and control any of the HSM Series modules. HSM Series Quick Start Guide holzworth.com...
-
Page 2: Table Of Contents
PC so the Holzworth GUI can be used to control the synthesizer. No drivers are required to run the Holzworth GUI. HCM1 USB Communications Module with power supply (displayed) HCM3 Ethernet Communications Module with power supply (also available) HSM Series Quick Start Guide holzworth.com... - Page 3 The modules are a recommended accessory for integrating the HSM Series synthesizers via the SPI bus. More information can be found on our website: https://holzworth.com/products/rf- synthesizer-modules After providing power and a communications cable to the unit, locate the Holzworth Jar file on the Windows PC in the figure below.
- Page 4 Click on the model/serial number in the Devices window and the unit model/serial number will appear in the SELECTED DEVICE box. The power button will turn green and you can begin controlling the module (see figure below for connections). HSM Series Quick Start Guide holzworth.com...
-
Page 5: Device Control
To change any setting, click on a digit in the appropriate window and the number will be highlighted (figure above). Enter the desired value and press return on the PC keyboard. Other digits can be modified by using the mouse, or the right and left arrow keys. HSM Series Quick Start Guide holzworth.com... -
Page 6: Modulation Window
(in Hz). The maximum deviation is 100 kHz. PM Mode : The PM mode set button allows the user to set the phase modulation deviation to within the specified limits (in degrees). The maximum deviation is 180 deg. HSM Series Quick Start Guide holzworth.com... - Page 7 This setting only applies when using internal pulse modulation with trigger. A trigger signal at the modulation input port will start the output pulsing and the counter to track the number of pulses. HSM Series Quick Start Guide holzworth.com...
-
Page 8: Sweep Mode Window
TRIGGER SWEEP Point: Selecting the Point sweep mode will initiate each individual point step in the sweep bandwidth at each trigger signal. NOTE: Once sweep mode is initiated, it will loop (restart) continuously until the routine is manually interrupted. HSM Series Quick Start Guide holzworth.com... - Page 9 CSV list files in the figure below. The factory preset modulation is 1 kHz FM deviation, 180° phase deviation, 95% AM depth, and the pulse settings below. The default sweep mode is in the figure below. HSM Series Quick Start Guide holzworth.com...
-
Page 10: List Mode
Examples of wide and narrow band list files are stored in the HSM module directory of the main Holzworth directory. These files can be created and modified to change the RF signal output. HSM Series Quick Start Guide holzworth.com... -
Page 11: Wide List Mode Example
File window is displayed for the user to select and load a preconfigured, comma-delimited list file. Selecting a file or pressing the Cancel button will then initiate the list mode control panel as shown above. HSM Series Quick Start Guide holzworth.com... -
Page 12: Import/Export List Buttons
OPT-EXTMOD, which provides an external stimulus input port for a trigger signal. For more information about our modules or other products, please visit our website at: https://holzworth.com HSM Series Quick Start Guide holzworth.com...
