Firebox III front view (all models except Model 500 and
700)

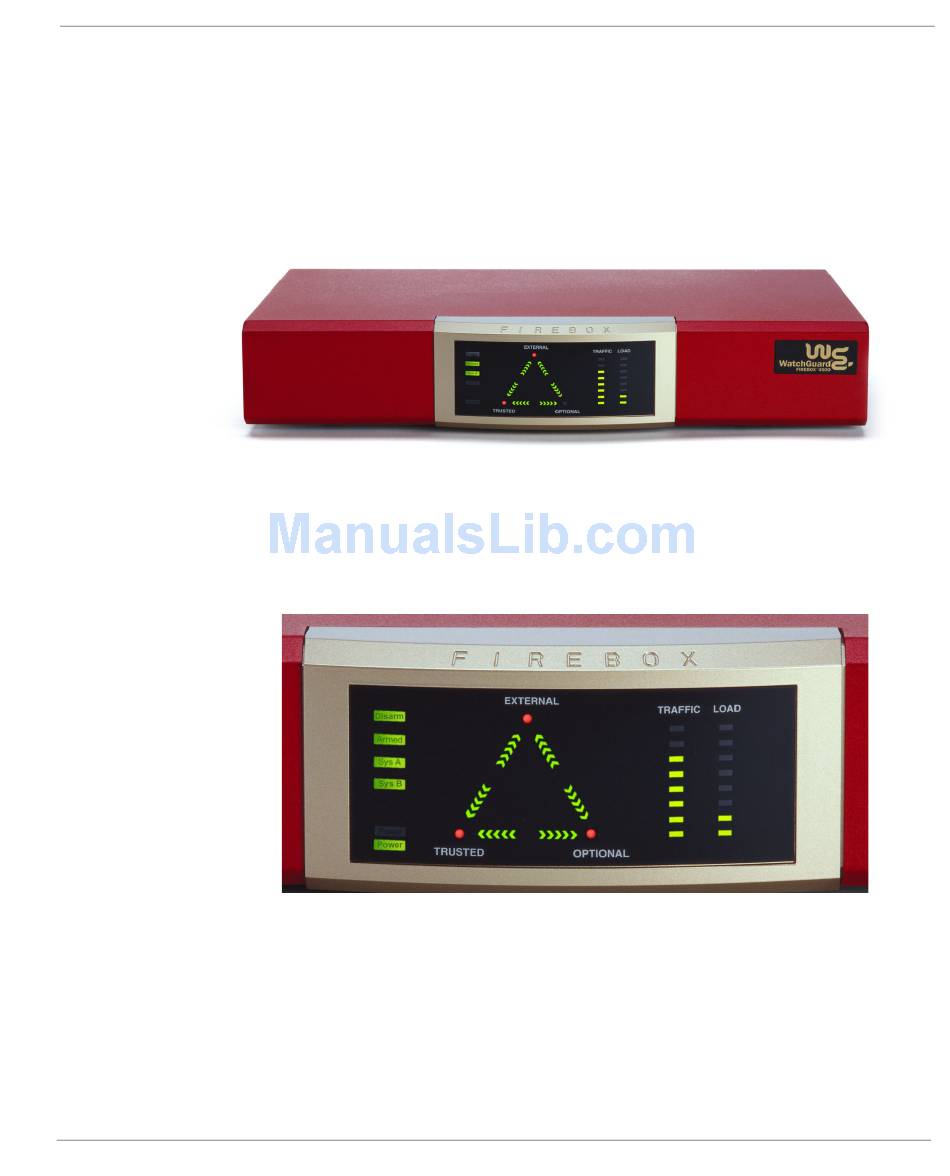

Indicators for the Firebox III Model 1000, Model 2500, and Model 4500 are
on a central back-lit indicator panel. The following photograph shows the
entire front view.
The photograph below shows a close-up of the indicator panel. From the
left, the indicators are as described on the next page.
Hardware Guide
Disarm
Red light indicates the Firebox detected an error, shut down its
interfaces, and will not forward any packets. Reboot the Firebox.
Armed
Green light indicates the Firebox has been booted and is running.
Hardware Description
13
