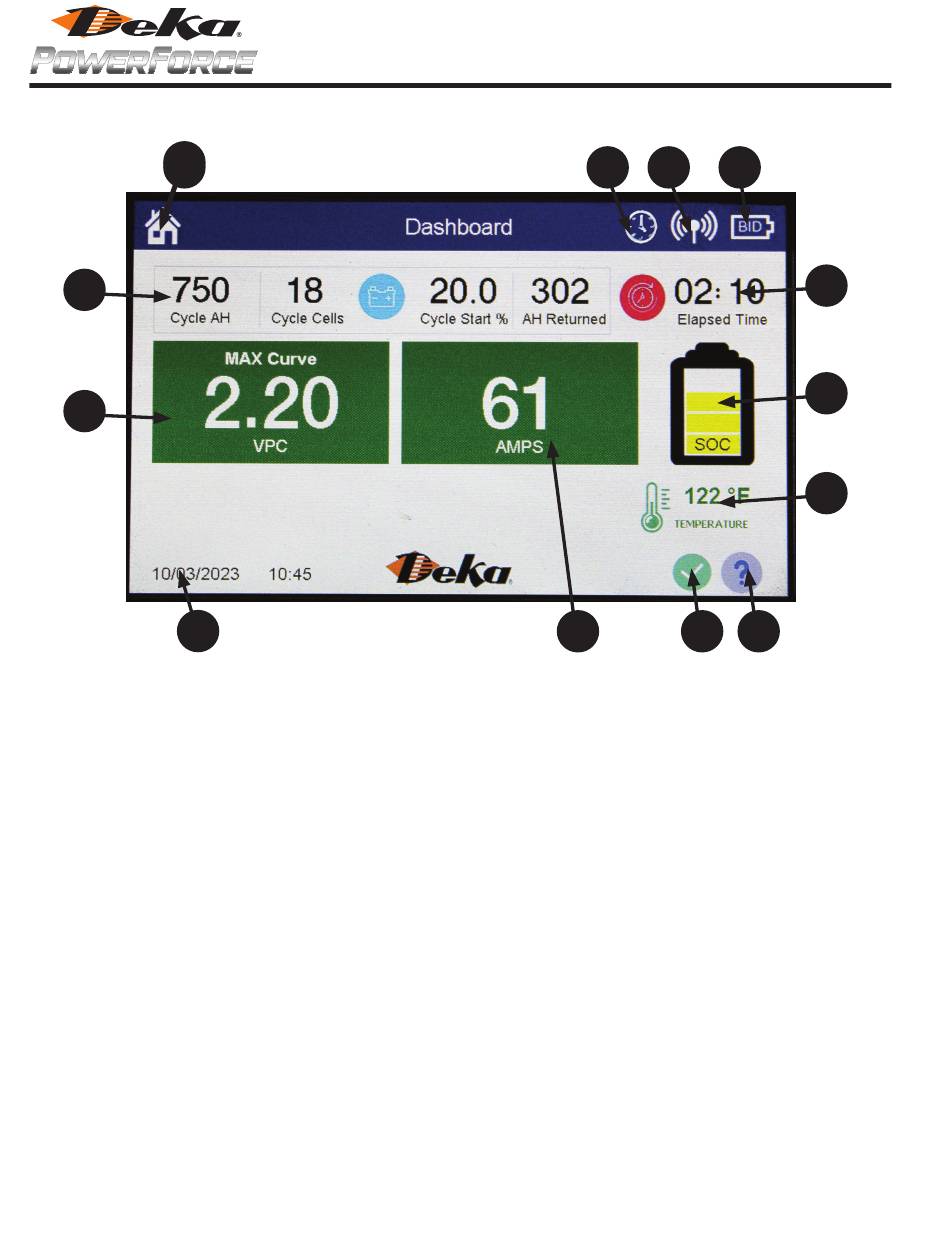

POWERFORCE DASHBOARD
1. Home Icon: Touching icon will automatically return the unit to
the Home screen from any other screen.
2. Clock Icon: Indicates the charger has stopped the charge cycle
temporarily for one or more of the following functions:
Start Mode Delay
No Gassing Delay
Battery Cool Down
Multi-Cell mode new battery delay
3. Battery Icon: Indicates the battery connection state.
- Battery with no text in the center means that a battery is
connected with no BID installed.
- Battery with the word BID in the center indicates the charger
has detected a BID on the connected battery.
- Battery with the word BID flashing indicates the charger is
attempting communication with the BID device.
4. Battery Info Icon: Indicates battery AH size, cell size, start
rate, and AH returned.
5. Charge Time Icon: Indicates the charge time, idle time, & time
since Charge Complete.
NOTE: the wireless icon is shown on the top bar toward
the left if connected.
2
11
6. Battery State of Charge Icon: Indicates battery state at a
glance.
Each bar indicates the State of Charge (SOC) in 20% increments,
along with colors.
-Red – Start of Charge at battery connect
-Orange – SOC < 80%
-Yellow - > 80%
-Green – Finish to Charge Complete, Bars will flash
during equalize.
SOC text will indicate current status as follows:
-SOC will be displayed while charging is in progress
-CC is displayed when the it is Charge Complete
-EQ is displayed when battery has completed the initial
charge & is now Equalizing.
7. Battery Temperature Icon: Touching this icon will cycle
display between Celsius and Fahrenheit.
8. Help Icon: Pressing this icon twice while on the home
screen will show a table of system firmware revision
9. Status Icon: Indicates the status of the charger and charge
cycle at a glance. Touching this icon will recall any active warn-
ings/errors for review.
10. Charge VPC: Indicates On Charge volts per cell
11. Charge Amps: Indicates On Charge DC Amps
12. Date & Time: Indicates current date & time
13. Wireless Icon: Indicates connected
14
13
3
5
6
7
9
8
