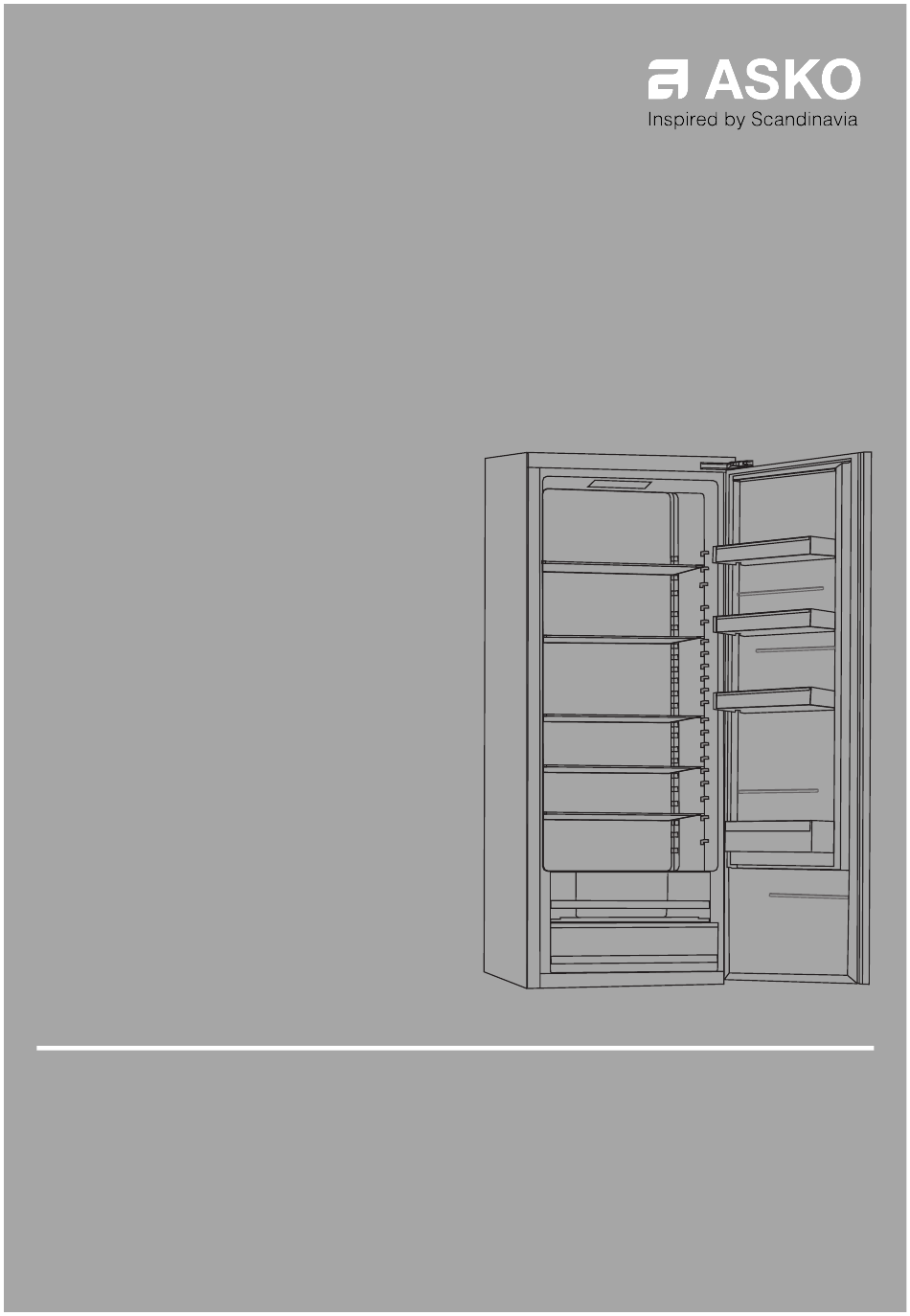

- Page 1 INSTRUCTIONS FOR USE R31442I REFRIGERATOR...
-
Page 2: Table Of Contents
Contents Introduction ..........Switching on the refrigerator and setting the Welcome to our growing ASKO family! ..temperature ..........Important notes and precautions ..... Switching off the refrigerator ......Before using the appliance for the first DuraFresh ............ time .............. -
Page 3: Introduction
A section of the installation instructions is supplied separately. Link to the EU EPREL database Information about your product can be found at www.asko.com/energylabel, where you will also find a link to the European Product Database for Energy Labelling, EPREL. Or else visit https:// eprel.ec.europa.eu directly. -
Page 4: Important Notes And Precautions
Important notes and precautions Before using the appliance for the first time Before connecting the appliance to the power mains, please read carefully the instructions for use which describe the appliance and its correct and safe use. The instructions apply to several appliance types/models;... - Page 5 Important notes and precautions WARNING! WARNING! Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. WARNING! WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
-
Page 6: Important Information On The Use Of Appliance
Important notes and precautions When removing a used appliance, disconnect the power cord, remove the door, and leave the shelves in the appliance. This will prevent children from locking themselves in the appliance. For European markets only This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning... - Page 7 Important notes and precautions • catering and similar non-retail applications. WARNING! WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. The appliance may not be used outdoors and it may not be exposed to rain. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
-
Page 8: Installation And Connection
Installation and connection Selecting the location • Place the appliance in a dry and well aired room. The permitted ambient temperature range for the appliance depends on the appliance's climate class, which is shown on the type plate. • Do not place the appliance near a source of heat, such as a gas cooker, radiator or boiler, etc., and do not expose it to direct sunlight. -
Page 9: Connecting The Appliance
Installation and connection WARNING! Place the appliance in a room with a sufficient volume of air. The room must have a volume of at least 1 m of air for every 8 grams of refrigerant. The quantity of refrigerant is shown on the type plate on the inside of the appliance. -
Page 10: Changing The Side On Which The Door Opens / Building The Appliance Into A Cupboard
Installation and connection Changing the side on which the door opens / building the appliance into a cupboard Information about changing the side on which the door opens and building the appliance into a cupboard is enclosed in separate installation instructions. -
Page 11: Before Using The Appliance For The First Time
Before using the appliance for the first time Before you use the appliance for the first time Do not connect the appliance to the mains until you have carefully read the instructions for the correct and safe use of the appliance. As these instructions are for various types and models, it is possible that the instructions for use refer to settings or parts that are not available on your appliance. -
Page 12: Description Of The Appliance

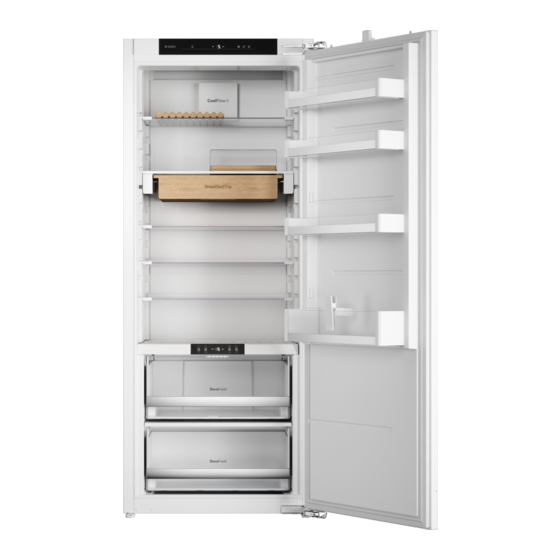

Description of the appliance 1. Control panel 2. CoolFlow+ 3. Glass shelves 4. Wooden breakfast tray (BreakfastTray) 5. DuraFresh control panel 6. DuraFresh drawers 7. Door compartments CoolFlow+ This system creates optimal air circulation to keep the temperature constant throughout the entire refrigerator compartment. - Page 13 Description of the appliance To fit the drawer onto the rails, pull the two rails fully out. Place the drawer on the rails (3). In the front, press the drawer and the rails towards each other on the right and the left side until you hear a “click” (4).
- Page 14 Description of the appliance MultiBox The MultiBox offers a handy option for storing foods with a strong odour, such as ripe or blue cheese, smoked sausages and onions. The lid can also be used as egg tray. Wooden breakfast tray (BreakfastTray) The wooden breakfast tray is mounted on special guides under a glass shelf.
-
Page 15: Operating The Appliance
Operating the appliance Control panel INFORMATION! • For best results, touch the keys with as much of the fingertip as possible. Alarm key Temperature adjustment keys Set temperature display SuperCool key (intensive cooling function) ECO/Child Lock key On/Off key... -
Page 16: Durafresh Control Panel
Operating the appliance DuraFresh control panel 2 °C adjustment key • The temperature of the top drawer is set to 2 °C. 0 °C adjustment key • The temperature of the top drawer is set to 0 °C. Temperature adjustment keys (top DuraFresh drawer) Display of the set temperature (top DuraFresh drawer) 2 °C adjustment key •... -
Page 17: Switching Off The Refrigerator
Operating the appliance INFORMATION! • The temperature of the refrigerator compartment can be set to between +3 °C and +8 °C. The temperature of the top DuraFresh drawer can be set to -2, 0, 2 or 5 °C. The recommended temperature of the refrigerator compartment is 4 °C. - Page 18 Operating the appliance Type of food Recommended DuraFresh drawer Meat Fish, molluscs and crustaceans Herbs / Dairy Vegetables / Dairy Bottom Fruit / Dairy Bottom Tropical fruit Bottom WARNING! After you have switched on the appliance it will take several hours for the temperature to decrease to the set temperature.
- Page 19 Operating the appliance WARNING! Note! The adjusted temperatures of the refrigeration and DuraFresh compartments are linked to each other. Some combinations of settings are not possible (see table). It is also possible that the temperature setting of the refrigeration compartment is adjusted automatically. In this case a warning signal will sound.
- Page 20 Operating the appliance Storing food in the DuraFresh drawers Meat Temperature, °C Storage life Beef 0 to 4 to 3 weeks Pork -1 to 4 3 days Poultry 0 to 4 3 days Lamb 0 to 4 14 days Fish 0 to 4 3 to 10 days Fish, molluscs and crustaceans...
-
Page 21: Intensive Cooling (Supercool)
Operating the appliance Times and optimum temperatures are approximate and depend on the quality of the food and its freshness. Intensive cooling (SuperCool) This appliance has an intensive cooling function. This function decreases the temperatures in the refrigeration compartment and DuraFresh compartment as quickly as possible. This is ideal for cooling products that have just been put into the refrigerator. -
Page 22: Eco Function
Operating the appliance ECO function This appliance has an ECO function. When the ECO function is selected, the appliance works with the optimum settings. The ECO function has no time limit and remains activated until the function is disabled. Activating/disabling the ECO function 1. -
Page 23: High Temperature Alarm
Operating the appliance WARNING! When the door is still open after 10 minutes, the appliance will switch to safe mode. The LED lighting goes off. Error code E9 will be shown in the display (see the chapter ‘Faults’). WARNING! If you only switch off the alarm by touching any key, the alarm will switch on again after some time because the door is still open. -
Page 24: Power Failure Alarm
Operating the appliance Power failure alarm The appliance cannot cool/freeze during a power failure. Once the power has been restored, the temperature in the appliance will be measured. A signal will sound when the temperature in the appliance is too high. The alarm key will flash and ‘PF’ (Power Failure) will be shown in the display. -
Page 25: Storing Food
Storing food Recommended distribution Sections of the refrigeration compartment • Upper section: canned food, bread, wine and pastas, etc. • Middle section: dairy products, ready-to-cook meals, desserts, soft drinks, beer and cooked food, etc. • DuraFresh drawers: meat, meat products, dairy products, delicatessen products, fresh fruit, vegetables, root vegetables, salads, onions, garlic, cabbage and swedes/turnips, etc. - Page 26 Storing food • Do not store flammable, unstable or explosive materials in the refrigerator. • Store bottles that have been opened upright and close them tightly. • Some organic solutions, such as essential oils, in the skin of lemons and oranges, and butyric acid, that come into long-term contact with plastics can eat into the material and cause premature ageing.
-
Page 27: Maintenance
Maintenance Defrosting the appliance Automatic defrost of the refrigeration compartment The refrigeration compartment defrosts automatically from time to time. Cleaning the appliance WARNING! Switch off the appliance and remove the plug from the socket before you start cleaning it. WARNING! Do not use abrasive cleaning agents, as they can damage the surface. -
Page 28: Faults
Faults Faults table When you have any doubts about whether your appliance is working properly you should not immediately assume that it is defective. We recommend that you should in any case check the points in the following table. Problem Cause/Solution •... - Page 29 Faults Problem Cause/Solution • Consult a service technician about LED lighting that is not working. Some or all of the LED For safety reasons, you are not allowed to repair LED lighting lighting does not work. yourself. • This product contains a light source of energy efficiency class E. Appliance makes a noise.
-
Page 30: Environmental Aspects
Environmental aspects Disposal of packaging and appliance This appliance is made from sustainable materials. This appliance must be disposed of in a responsible manner at the end of its service life. Contact the local authorities for information about the method. INFORMATION! See also the chapter ‘Disposal’... - Page 31 Your notes...
- Page 32 The instructions for use can also be found on our website: www.asko.com 916904...
