Summary of Contents for Asko R31231I

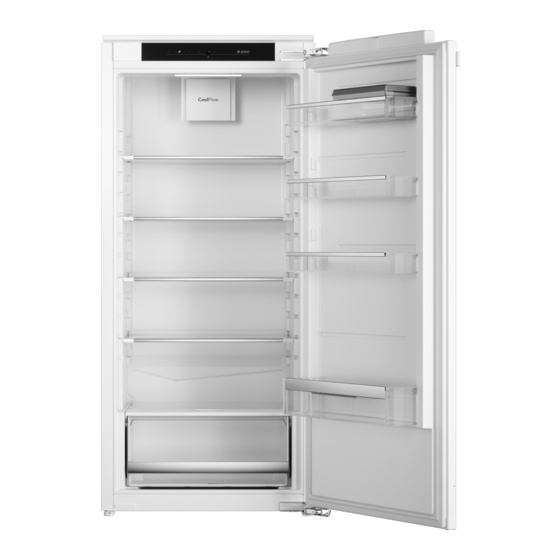

- Page 1 INSTRUCTIONS FOR USE R31231I REFRIGERATOR R30931EI...
-
Page 2: Table Of Contents
Contents Introduction ..........Fruit and vegetable drawer with automatic Welcome to our growing ASKO family! ..humidity control ........... Important notes and precautions ..... Door compartments ........Before using the appliance for the first MultiBox * ............ time .............. Operating the appliance ...... -
Page 3: Introduction
A section of the installation instructions is supplied separately. Link to the EU EPREL database Information about your product can be found at www.asko.com/energylabel, where you will also find a link to the European Product Database for Energy Labelling, EPREL. Or else visit https:// eprel.ec.europa.eu directly. -
Page 4: Important Notes And Precautions
Important notes and precautions Before using the appliance for the first time Before connecting the appliance to the power mains, please read carefully the instructions for use which describe the appliance and its correct and safe use. The instructions apply to several appliance types/models;... - Page 5 Important notes and precautions WARNING! WARNING! Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. WARNING! WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
-
Page 6: Important Information On The Use Of Appliance
Important notes and precautions When removing a used appliance, disconnect the power cord, remove the door, and leave the shelves in the appliance. This will prevent children from locking themselves in the appliance. For European markets only This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning... - Page 7 Important notes and precautions • catering and similar non-retail applications. WARNING! WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. The appliance may not be used outdoors and it may not be exposed to rain. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
-
Page 8: Installation And Connection
Installation and connection Selecting the location • Place the appliance in a dry and well aired room. The permitted ambient temperature range for the appliance depends on the appliance's climate class, which is shown on the type plate. • Do not place the appliance near a source of heat, such as a gas cooker, radiator or boiler, etc., and do not expose it to direct sunlight. -
Page 9: Connecting The Appliance
Installation and connection • The kitchen unit in which the appliance is to be built in must have an opening of at least 200 cm in its base to allow sufficient air to circulate. • The appliance's air outlet is at the top. Make sure that the outlet is not blocked. Blocking the outlet can result in damage to the appliance. -
Page 10: Before Using The Appliance For The First Time
Before using the appliance for the first time Before you use the appliance for the first time Do not connect the appliance to the mains until you have carefully read the instructions for the correct and safe use of the appliance. As these instructions are for various types and models, it is possible that the instructions for use refer to settings or parts that are not available on your appliance. -
Page 11: Description Of The Appliance
Description of the appliance 1. Control panel 2. LED lighting 3. CoolFlow 4. Glass shelves 5. Fruit and vegetable drawer with humidity control 6. Door compartments CoolFlow This system creates optimal air circulation to keep the temperature constant throughout the entire refrigerator compartment. -
Page 12: Glass Shelves
Description of the appliance ( * Equipment depends on the model) Glass shelves The shelves are made from safety glass. To change the height of a shelf, lift the front of the shelf (1). Take hold of the back and pull the shelf slightly forwards (2). -
Page 13: Door Compartments
Description of the appliance To insert a drawer, follow the reverse order (3 and 4). Door compartments The height of the door compartments is adjustable. Lift the compartment out of the groove and fit it in the required position. Each compartment can carry a maximum weight of 5 kg. -
Page 14: Operating The Appliance
Operating the appliance Appliance on/off, temperature settings, and extra function key Refrigerator compartment temperature display The indicator for the selected temperature will be lit. Intensive cooling function indicator Symbol C will be lit when the intensive cooling function is activated. High temperature indicator To set the appliance temperature or activate extra functions, press the A key successively. -
Page 15: Intensive Cooling (Supercool)
Operating the appliance • Adjust the temperature as desired using the A key. • Press the A key (several times) until the desired temperature indicator lights up. • When the A key is pressed for the first time, the currently set value or function will start to flash. -
Page 16: Open Door Alarm
Operating the appliance INFORMATION! Should a power failure occur while the function is activated then the function will be activated again when the power is restored. Open door alarm An alarm signal sounds when the door is open for too long. Switching off the alarm: 1. - Page 17 Operating the appliance WARNING! When the alarm is not stopped manually and the temperature remains too high, the signal will sound for the first minutes of every half hour and when the door of the refrigerator compartment is opened.
-
Page 18: Storing Food
Storing food Recommended distribution Sections of the refrigeration compartment • Upper section: canned food, bread, wine and pastas, etc. • Middle section: dairy products, ready-to-cook meals, desserts, soft drinks, beer and cooked food, etc. • Lower section: meat, meat produce, delicatessen. •... - Page 19 Storing food • Do not store flammable, unstable or explosive materials in the refrigerator. • Store bottles that have been opened upright and close them tightly. • Some organic solutions, such as essential oils, in the skin of lemons and oranges, and butyric acid, that come into long-term contact with plastics can eat into the material and cause premature ageing.
-
Page 20: Maintenance
Maintenance Defrosting the appliance Automatic defrost of the refrigeration compartment The refrigeration compartment defrosts automatically from time to time. Cleaning the appliance WARNING! Switch off the appliance and remove the plug from the socket before you start cleaning it. WARNING! Do not use abrasive cleaning agents, as they can damage the surface. - Page 21 Maintenance Cleaning the humidity filter The humidity filter is located at the bottom part of the shelf above the fruit and vegetable drawer. 1. Remove the upper drawer. 2. Lift the shelf as far as possible at the front (A). Then, pull it out from the grooves at the rear side of the appliance (B).
-
Page 22: Faults
Faults Faults table When you have any doubts about whether your appliance is working properly you should not immediately assume that it is defective. We recommend that you should in any case check the points in the following table. Problem Cause/Solution •... - Page 23 Faults Problem Cause/Solution • The appliance is cooled by a refrigeration system with a compressor Appliance makes a (and with some models, also a fan) that makes a noise. The noise level noise. depends on the installation of the appliance, its correct use and its age.
-
Page 24: Environmental Aspects
Environmental aspects Disposal of packaging and appliance This appliance is made from sustainable materials. This appliance must be disposed of in a responsible manner at the end of its service life. Contact the local authorities for information about the method. INFORMATION! See also the chapter ‘Disposal’... - Page 25 Your notes...
- Page 26 Your notes...
- Page 27 Your notes...
- Page 28 The instructions for use can also be found on our website: www.asko.com 916587...
