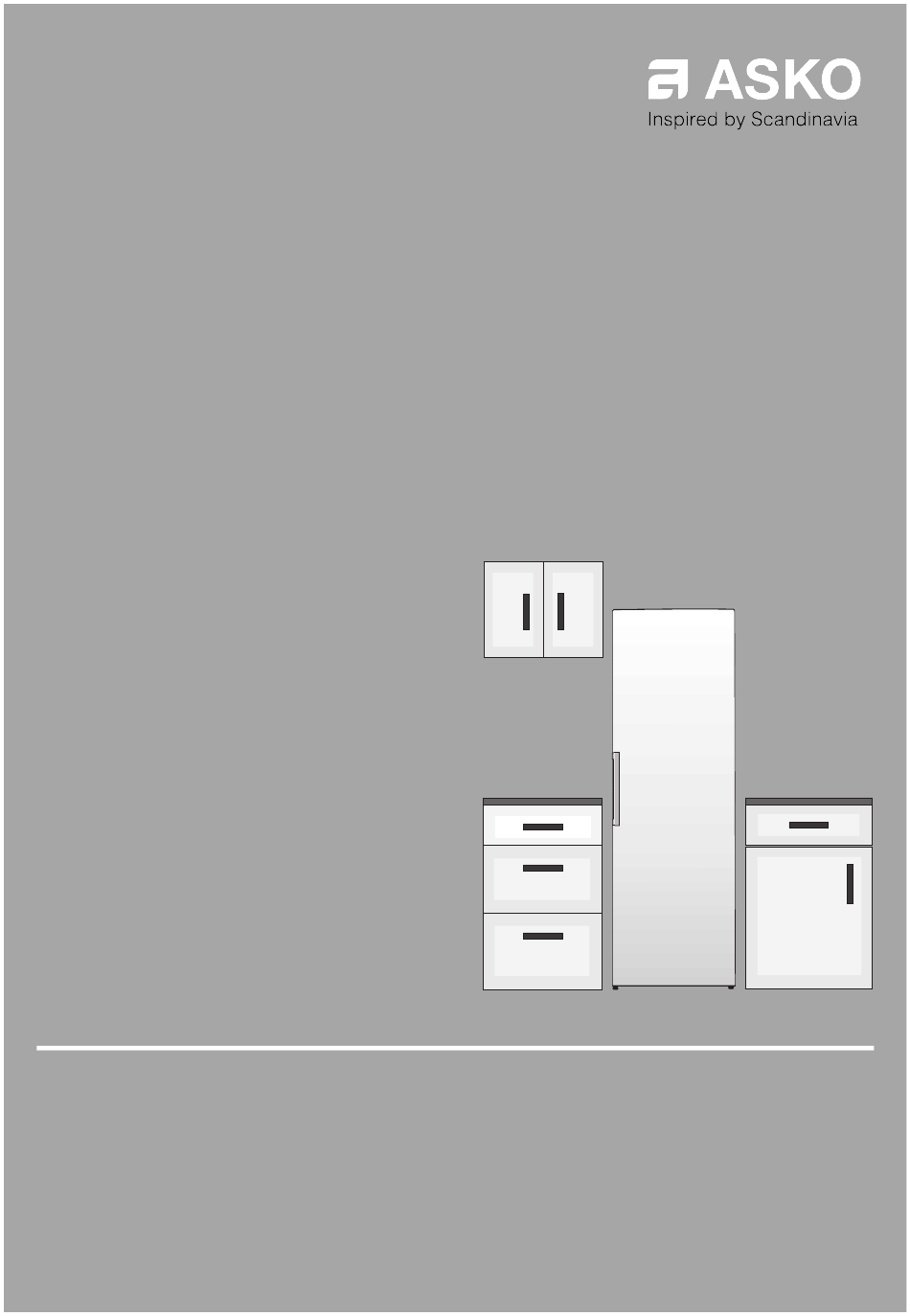

- Page 1 INSTRUCTIONS FOR USE R23841 REFRIGERATOR R23844...
-
Page 2: Table Of Contents
Contents Introduction ..........MultiZone drawer ......... Dear customer, ..........Turning the MultiZone drawer into a fruit and Safety instructions ........vegetables drawer ........Safety of children and vulnerable people ..Door racks ........... General safety ..........CoolFlow ............Installation ............ AdaptTech ........... -
Page 3: Introduction
Introduction Dear customer, Congratulations on choosing this Asko refrigerator. This product is designed with simple operation and optimum comfort in mind. These instructions for use explain how you can make best use of this appliance. These instructions contain information about the operation of the appliance and background information that may be of help to you during its use. -
Page 4: Safety Instructions
Safety instructions Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference. Safety of children and vulnerable people •... - Page 5 Safety instructions - staff kitchen areas in shops, offices and other working environments; - farm houses and by clients in hotels, motels and other residential type environments; - bed and breakfast type environments; - catering and similar non-retail applications. WARNING! •...
-
Page 6: Installation
Safety instructions Installation WARNING! This appliance should only be connected by a registered installer. • Remove all the packaging. • Do not install or use a damaged appliance. • Obey the installation instruction supplied with the appliance. • Always be careful when you move the appliance because it is heavy. -
Page 7: Use
Safety instructions • Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician. • Always use a correctly installed shockproof socket. • Do not use multi-plug adapters and extension cables. •... -
Page 8: Care And Cleaning
Safety instructions • Be careful not to cause damage to the refrigerant circuit. It contains isobutene (R600a), a natural gas with a high level of environmental compatibility. This gas is flammable. • If damage occurs to the refrigerant circuit, make sure that there are no flames and sources of ignition in the room. - Page 9 Safety instructions • The refrigerant circuit and the insulation materials of this appliance are ozone friendly. • The insulation foam contains flammable gas. Contact your municipal authority for information on how to discard the appliance correctly. • Do not cause damage to the part of the cooling unit that is near the heat exchanger.
-
Page 10: Installation And Connection
Installation and connection Selecting the location • Place the appliance in a dry and well aired room. The permitted ambient temperature range for the appliance depends on the appliance's climate class, which is shown on the type plate. • Do not place the appliance near a source of heat, such as a gas cooker, radiator or boiler, etc., and do not expose it to direct sunlight. - Page 11 Installation and connection Appliance installation should be carried out by at least two persons to avoid any personal injury or damage to the appliance. • The appliance must stand level or tilted slightly to the back. It should be stable and placed a solid base. At the front, the appliance is fi tted with two adjustable feet that can be used to level the appliance.
-
Page 12: Connecting The Appliance
For safety reasons, side-by-side kit should only be installed by an authorized service technician! INFORMATION! For more informations refer to the local Asko dealer or to the Asko website of your country. -
Page 13: Before Using The Appliance For The First Time
Before using the appliance for the first time Before you use the appliance for the first time Do not connect the appliance to the mains until you have carefully read the instructions for the correct and safe use of the appliance. As these instructions are for various types and models, it is possible that the instructions for use refer to settings or parts that are not available on your appliance. -
Page 14: Reversing The Door Opening Direction
Reversing the door opening direction The direction in which the appliance door opens can be reversed. Note: Disconnect the appliance from the power mains before reversing the door opening direction. Tools required: Socket wrench No. 8, Cross-point screwdriver Flat screwdriver Spanner No. - Page 15 Reversing the door opening direction Remove the door from the bottom hinge by carefully lifting the door straight up. Lay the door onto a smooth surface. Take the (right) cap/cover (4) from the bag and place it on the spot from which the top hinge was removed. Remove and save the cap/cover from the other side (5) to which the hinge will be relocated.
- Page 16 Reversing the door opening direction Attach the hinge (14) onto the opposite side using the screws. The screws should be attached in the order shown in the figure below. First, tighten the screw 1, followed by screws 2. Then, screw on the adjustable feet (11).
-
Page 17: Description Of The Appliance
Description of the appliance This product contains a light source of energy efficiency class G. 1. Control panel 2. LED lighting 3. CoolFlow* 4. Bottle rack 5. Glass shelves 6. Slider for converting the MultiZone drawer into a fruit and vegetables bin * 7. -
Page 18: Shelf
Description of the appliance Shelf You can lay out the empty shelves to your liking across the guides in the refrigerator interior without having to remove them from the refrigerator. To move the shelf or take it out from the refrigerator, slightly lift it at the back, pull it towards you, and then either move it or take it out of the appliance. -
Page 19: Turning The Multizone Drawer Into A Fruit And Vegetables Drawer
Description of the appliance For optimum performance, the drawer should be fully closed. • When buying food, make sure it is fresh as this will determine the quality of the food, as well as how long it will keep in the fridge. •... -
Page 20: Door Racks
Description of the appliance Door racks Interior side of the refrigerator door is fitted with shelves intended for storing cheese, butter, eggs, yoghurt, and other smaller packages, tubes, cans etc. You may lay out the racks as desired by lifting them slightly from the grooves that hold them in place and moving them to the desired spot, making sure to fit them in the grooves there. -
Page 21: Operating The Appliance
Operating the appliance A. Appliance on/off key B. Temperature and extra functions settings key C. Set temperature display The signal light below the set temperature display is lit D. Intensive cooling (super cool) function indicator If intensive cooling (super cool function) is activated, the light D will be lit. E. -
Page 22: Intensive Cooling (Super Cool)
Operating the appliance • Set the desired temperature using the B key. • Set the desired temperature by successively pressing the B key. • The indicator cycles through the settings in a circular manner, from right to left. The numbers 2, 3, 4, 5, 6 and 8 indicate the temperature in degrees Celsius (°C) in the appliance. -
Page 23: Eco Function
Operating the appliance Eco function Switching on: To activate the Eco function, press the B key multiple times until the light E lights up. When this function is activated, the appliance operates under optimum settings. Switching off: To switch off the Eco function, use the B key to select the desired temperature. -
Page 24: Storing Food
Storing food Recommended distribution Sections of the refrigeration compartment • Upper section: canned food, bread, wine and pastas, etc. • Middle section: dairy products, ready-to-cook meals, desserts, soft drinks, beer and cooked food, etc. • Lower section: meat, meat produce, delicatessen. INFORMATION! Store food that spoils rapidly at the back of a shelf or at the back of the drawer at the lowest temperature. -
Page 25: Storing Fresh Food In The Refrigerator
Storing food Storing fresh food in the refrigerator Important recommendations for storing fresh food • To ensure the quality of fresh food, it is important that: the food is well-packaged; the appliance is at the correct temperature; the appliance is clean. •... -
Page 26: Maintenance
Maintenance Defrosting the appliance Automatic defrost of the refrigeration compartment The refrigeration compartment defrosts automatically from time to time. Cleaning the appliance WARNING! Switch off the appliance and remove the plug from the socket before you start cleaning it. WARNING! Do not use abrasive cleaning agents, as they can damage the surface. -
Page 27: Faults Table
Faults table When you have any doubts about whether your appliance is working properly you should not immediately assume that it is defective. We recommend that you should in any case check the points in the following table. Problem Cause/Solution •... - Page 28 Faults table Table continued from last page Problem Cause/Solution • Condenser compartment fan failure. Call a service centre for The light below the "4°" indicator repair. The appliance cannot operate normally. Transfer the is flashing rapidly: food to a cool place and switch off the appliance. •...
-
Page 29: Environmental Aspects
Environmental aspects Disposal of packaging and appliance This appliance is made from sustainable materials. This appliance must be disposed of in a responsible manner at the end of its service life. Contact the local authorities for information about the method. INFORMATION! See also the chapter ‘Disposal’... - Page 30 The instructions for use can also be found on our website: www.asko.com 885937...
