P.O.Number :
Please Keep This Number For
Future Reference
THIS FORMS PARTS OF
YOUR GUARANTEE!
Please keep these lnstructlons for future reference.
Minimum two
person assembly
1 Hr
Approximate
Assembly Time
Product Details
STK799904
3' Bed Charcoal
Regrettably self-assembly items cannot be returned once assembly is part or fully completed unless the
items are found to be faulty.Should you need to return the un assembled product, please repack in its original
packaging.
lmportant Information
● We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
● Carefully check that you have all the parts before beginning assembly.
● Keep fittings out of children's reach and keep children well away from construction area.
● We suggest you retain these instructions for future reference.
Care Instructions
● Avoid exposing the furniture to excessive heat or direct sunlight as this can cause cracking or
deterioration of the color.
● Periodically check & re-tighten any screws and fixings.
● Periodically dust lightly with a clean soft cloth.
● TAKE CARE WHEN MOVING THE FURNITURE AND NEVER DRAG THE PIECES ACROSS
THE FLOOR,AS THIS WILL CAUSE DAMAGE TO THE JOINTS.
Frame Tested To BSEN1725
Fabrics and filings to BS5852
(REV 03 12/12/2023)

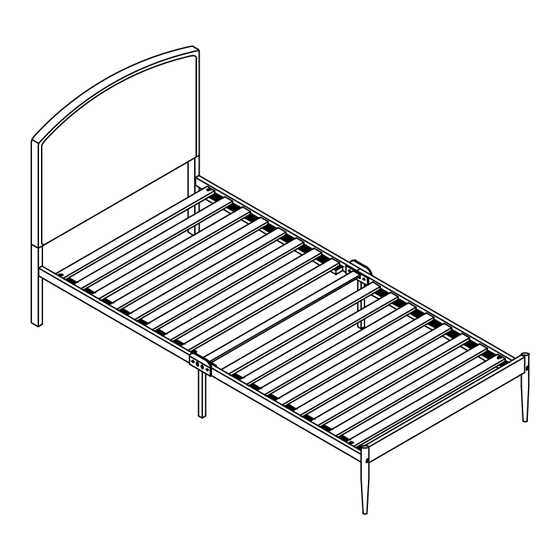

SUSIE BED 90 cm
Assembly lnstructlons
Page 1 of 8
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bensons for Beds SUSIE STK799904
Summary of Contents for Bensons for Beds SUSIE STK799904
- Page 1 P.O.Number : Please Keep This Number For Future Reference THIS FORMS PARTS OF YOUR GUARANTEE! SUSIE BED 90 cm Assembly lnstructlons Please keep these lnstructlons for future reference. Minimum two person assembly 1 Hr Approximate Assembly Time Product Details STK799904 3' Bed Charcoal Regrettably self-assembly items cannot be returned once assembly is part or fully completed unless the items are found to be faulty.Should you need to return the un assembled product, please repack in its original...
- Page 2 Tips before you start! 1. Please check that all parts are present before you start the assembly of your furniture. 2. For ease and speed of assembly, we recommend that before you commence each step of the assembly, that you identify all the parts required for that step. 3.
- Page 3 Components A Headboard x 1 B Foot End x 1 C Side Rail (Left) x 1 D Side Rail (Right) x 1 (3'-865 x 80mm) (3'-930 x 600mm) (3'-40 x 1900mm) (3'-40 x 1900mm) E Cross Stretcher x 1 F Slatted System x 2 G Headboard Leg H Headboard Leg (3'-40 x 880mm)
- Page 4 Step 1 ● Attach headboard legs using the fixings as shown. Required Fixings for this step. L x 1 M x 4 Q x 4 R x 4 Step 2 Attach the footend legs to the foot end panel as shown. ●...
- Page 5 Step 3 ● With help, carefully turn the headboard over. ● Insert fixings as shown, but leave loose. ● With help, carefully turn the Foot end panel over. ● Insert fixings as shown, but leave loose. Required Fixings for this step. M x 4 Q x 2 S x 2...
- Page 6 Step 5 ● Slide the side rail bracket over the inserted screw in the headboard and foot end as shown. Required Fixings for this step. L x 1 Leave fixings loose Step 6 ● Ensure the frame is square. ● Secure at the back of the headboard using fixings ●...
- Page 7 Step 7 ● Attach the cross stretcher as shown taking extra care to ensure the arrows are pointing upwards as shown. Required Fixings for this step. L x 1 O x 4 (REV 03 12/12/2023) Page 7 of 8...
- Page 8 Step 8 ● As shown fix the first slat of the slatted system (with cut outs) to the side rails using the fixings as shown. ● Fixings are used at each end of the wooden slat. ● Gently pull each slat to extend the velcro strip and firmly push the slat down to create the connection between the two fabrics.
