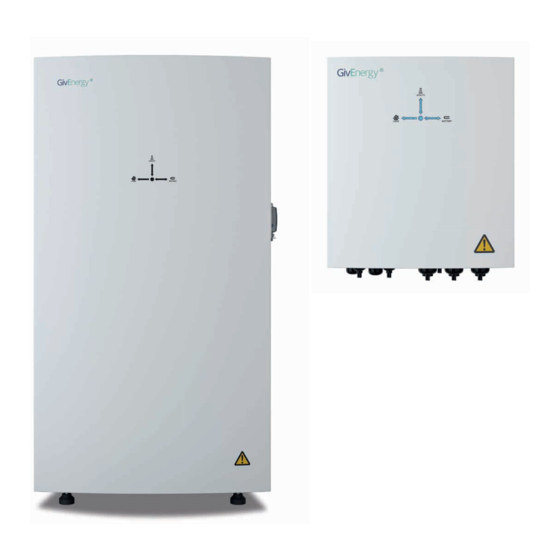

- Page 1 INSTALLATION GUIDE ALL IN ONE + GIV-GATEWAY 3.6kW | 6.0kW | 13.5kWh | UK V2.0 - 29/01/24 GIV-AIO-AC-13.5 GIV-AIO-GW1 GIV-AIO-AC-13.5-3.6...
-
Page 2: General Information
Legal Disclaimer: This document is the property of GivEnergy, reproduction is prohibited. Installation Requirements Giv-Gateway Installation of the GivEnergy All in One and Giv-Gateway must be carried out by a GivEnergy Approved Installer and in accordance with the IEE Wiring Regulations. Unit Information Grid The All in One contains a bidirectional inverter and a 13.5kWh lithium iron phosphate battery. -
Page 3: Specifications
12 years AC Output Rating Model number AC Output Rating Model number 7.2kW / 32A peak GIV-AIO-AC-13.5 3.6kW / 16A peak / continuous GIV-AIO-AC-13.5-3.6 6.0kW / 26A continuous power (on grid) 7.2kW / 32A peak power (off grid) 6kW / 26A continuous power (off grid) - Page 4 ALL IN ONE BOX CONTENTS ALL IN ONE COMPONENTS Item Item Name Item Item Name All in One Unit Power Flow Indicator Bracket AC Supply Terminals Expansion Bolt Wifi Antenna DC Circuit breaker WiFi Antenna On / Off Switch Spirit Level Cable entry point...
-
Page 5: Installation Instructions
ALL IN ONE UNBOXING INSTALLATION INSTRUCTIONS The system must be installed in an easily accessible location, the status display must be visible and not obstructed Please ensure that the wall to be mounted on is suffi cient enough to hold the weight of the All in One and Giv-Gateway The system must be installed in a well ventilated area, the ambient temperature should be below 40ºC to ensure optimal operation... -
Page 6: Safety Instructions
The system is capable of retaining a high voltage, even when disconnected. Drill 4 holes at the marked positions to suit the fi xings. If you suspect something is wrong with the system, contact GivEnergy on 01377 252 874 or email support@givenergy.co.uk If any damaged or missing parts are found, please contact GivEnergy on 01377 252 874 or email support@givenergy.co.uk immediately. - Page 7 CLEARANCE AND MAINTENANCE Space Clearance Mount the All in One onto the mounting bracket. Adjust the height of the supporting feet to ensure the unit is level and attach the securing screws to the brackets, ensuring the weight is on There must be adequate clearance around the All in One to allow for heat dissipation.
- Page 8 ALL IN ONE CONNECTIONS OVERVIEW ALL IN ONE AC UTILITY GRID CONNECTION Item Item Name Cable size requirements for the All in One are 6mm² minimum. Communication / network ports AC Supply Earth Neutral Live Meter LM Both side and rear cable entry points are provided. If using rear entry point please ensure the cable is installed prior to fi...
- Page 9 ALL IN ONE COMMUNICATION WIRES CONNECTION GIV-GATEWAY SPECIFICATIONS Single All in One installation WHOLE HOME BACKUP To install a single All in One, connect communication wire to the socket D in the wiring compartment A great companion to the AIO of the All in One.
- Page 10 GIV-GATEWAY BOX CONTENTS ISOLATING THE MAIN SUPPLY TO THE PROPERTY Item Item Name Before installing the Giv-Gateway, make sure that the whole house is isolated from the main supply. Giv-Gateway Once isolated, please test to ensure that no voltage is present to the property before disconnecting the Bracket main supply cable from the consumer unit.
- Page 11 GIV-GATEWAY COMPONENTS GIV-GATEWAY STEP-BY-STEP INSTALLATION Item Item Name Place the wall mounting bracket horizontally onto the wall and mark the position of the bracket holes. MCB, RCD Drill 2 holes at the marked positions, at least 75mm deep. Grid / PV Meter and LoRa (spare) CT, RS485, LAN, CAN, DRM Fix the mounting bracket to the wall using the fi...
- Page 12 CLEARANCE AND MAINTENANCE Space Clearance Fix the Giv-Gateway to the mounting bracket and secure with the fi xings provided. Ensure there is adequate clearance space. There must be adequate clearance around the Giv-Gateway. The diagram below illustrates the space required around the system. 200mm 200mm 200mm...
-
Page 13: Connections Overview
CONNECTIONS OVERVIEW GIV-GATEWAY AC UTILITY GRID CONNECTION Item Item Name Breaker A - Single All in One connection The power wires for All in One connection should be at least 6mm². Strip the wire insulation for LoRa connection Module (spare) 8mm wiring connection. - Page 14 GIV-GATEWAY COMMUNICATION CONNECTIONS CONNECTING ALL IN ONE TO GIV-GATEWAY Please note: Remove bottom connections cover prior to wiring, and then replace once complete. AC supply wiring WiFi USB (Dongle) Mode Gateway communication/network ports RS485 Dip switch PV RS485 Meter RS485 Comms to All in One Communication wiring LOAD CT...
- Page 15 Giv-Gateway provides AC voltage to the All in One Please note: House load will not be present unless the All in One is online, or BYPASS breaker is To download a fully illustrated guide, please visit our Knowledge Base at www.givenergy.co.uk activated. BYPASS must not be kept on.
-
Page 16: Work Modes
Off Grid Operation Remotely disconnect your home from the grid at the push of a button using the GivEnergy App or Online Monitoring Portal. Note: An earthing rod MUST be installed. - Page 17 This All in One and Giv-Gateway are covered by 12-year warranties. Products Covered Products Covered All in One 13.5 12 years All in One 3.6 13.5 12 years Giv-Gateway 12 years Legal Disclaimer: This document is the property of GivEnergy, reproduction is prohibited.
