SpeedyBee F405 WING MINI
SpeedyBee APP
Specification Overview
Product Name
PDB Board
FC Board
Shield Board
Wireless USB
Extender
Wireless
Configuration
FC Firmware
Power Input
Dimension
Weight
Part1-OverView
Standard-Install Shield Board
Installation standard Flight Controller orientation
M2x 6.5 round
female-female
copper standoff
M2X3+3 round
male-female
copper standoff
M2X3.5 head
cross screw
Custom-Install Shield Board
Installation inverted Flight Controller
M2X3+3 round
male-female
copper standoff
M2x 6.5 round
female-female
copper standoff
M2X3.5 head
cross screw

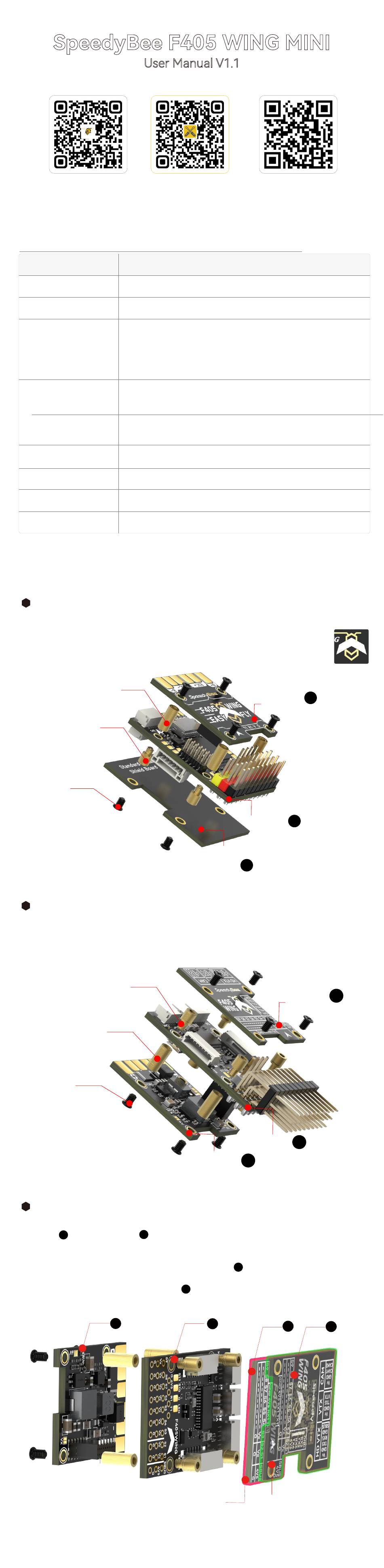

Assembly Instructions
1.Assemble
A
(PDB Board) and
and secure with screws and bolts.
2.For standard Flight Controller orientation, assemble
3.For inverted Flight Controller, assemble
User Manual V1.1
Installation
SpeedyBee F405 WING MINI
SpeedyBee F405 WING MINI PDB Board
SpeedyBee F405 WING MINI FC Board
SpeedyBee F405 WING MINI
Custom-Install Shield Board
SpeedyBee F405 WING MINI
Standard-Install Shield Board
SpeedyBee F405 WING MINI
USB Extender
Bluetooth BLE/WIFI(AP)/WIFI(STA)
INAV/ArduPilot
2-6S
37(L) x 26(W) x 14(H) mm
19g（Wireless USB Extender included）
Standard-Install
Shield Board
PDB Board
(FC Board), align pins, insert,
B
D
A
Standard-Install
Shield Board
for standard Flight
Controller orientation
PDB Board
FC Board
C
Custom-Install
Shield Board
FC Board
A
C
(Standard-Install Shield Board).
(Custom-Install Shield Board ).
B
Custom-Install Shield Board
for inverted Flight Controller
Facebook
Arrow indicates
drone head
A
B
D
B
D
C
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SpeedyBee F405 WING MINI
Summary of Contents for SpeedyBee F405 WING MINI
- Page 1 SpeedyBee APP Installation Facebook Specification Overview SpeedyBee F405 WING MINI Product Name PDB Board SpeedyBee F405 WING MINI PDB Board FC Board SpeedyBee F405 WING MINI FC Board SpeedyBee F405 WING MINI Custom-Install Shield Board Shield Board SpeedyBee F405 WING MINI...
-
Page 2: Part2-Hardware Description
Part2-Hardware Description Layout FC Board Front The camera defaults to battery power Vv G C1 dual cameras switch support Vv G C2 GPS Solder Pads (without Compass) HD VTX solder pads GPS Interface Vv G T5 R5 G SBUS (with Compass) analog VTX solder pads Vv G T5 VTX MicroSD Card Slot... - Page 3 PDB Board Back VTX Power Supply Jumper Default battery voltage output Servo BEC 5V Output Voltage Jumper Selecting the 6V BEC voltage for servo Default 5V Output will raise Vv's 5V output to 6V. When using battery voltage output, ensure 6V Output that the VTX supports a wide voltage range of 7-26V to prevent damage.
-
Page 4: Power Supply
Digital airspeed sensor solder pad For analog airspeed, share 4V5 and GND, and connect to AR solder pad HD VTX Power Supply The layout for the F405 WING MINI is as follows 5V solder FC BEC Onboard Chip 5.2V 2A Diode2A... -
Page 5: Part4-Specifications
Connecting INAV firmware to SpeedyBee APP Check the color of the Wireless Status Indicator. If it is Green Slow Flash, open the SpeedyBee App and follow the steps to connect to the corresponding product. Support various firmwares and configurators which are shown as below... -
Page 6: Part5-Pin Mapping
BLE mode, connect to Speedybee APP Wireless Configuration (long press BOOT button for 6 seconds to Wi-Fi (AP)mode, able to connect to Speedybee APP, QGroundControl APP, switch modes) MissionPlanner, etc. WiFi: Speedybee eFLY-WIFI Password: 88888888 INAV:Please make sure the MSP Wi-Fi (STA)mode, able to connect to QGroundControl APP, MissionPlanner, etc. -
Page 7: Part6-Standard Settings
Part6-Standard settings FC Inverted Settings Hardware Installation According to the diagram in Part 1, if you choose to install the FC in the standard Flight Controller orientation, you can use the default parameters. If you choose to install the FC inverted (with the PDB board facing the ground and the Custom-Install Shield Board facing the sky), you will need to make the following settings. - Page 8 PPM Receiver： ： Hardware Connection Use a 3-pin Dupont male-to-male cable and plug it into the SBUS input pin header. PPM receivers only supported in INAV 3.x and below. PPM Receiver PPM-SBUS VCC-4V5 ArduPilot Settings INAV Settings INAV does not support Detectable with default settings.
- Page 9 Start Onboard Mag Calibration Analog VTX Settings ： Hardware Connection Connect the SpeedyBee TX ULTRA analog VTX with the VTX cable Analog VTX VIDEO 7-28V Note: Please adjust the VTX BEC power supply to 5V when using the TX800. INAV Settings...
- Page 10 Digital VTX Settings Hardware Connection: Use a Digital VTX cable to connect to the Digital VTX. POWER Digital VTX Disconnect HDL and SBUS signals when using an external SBUS receiver. INAV Settings ArduPilot Settings ①In the Ports tab, select "Peripherals" for Enter MissionPlanner's CONFIG settings, locate UART5 and choose the "MSP DisplayPort"...
- Page 11 Wireless board with FC settings Hardware Connection: Check the alignment and secure fastening of the pin headers and sockets between the wireless board and the flight controller. For INAV firmware, switch the wireless mode to BLE mode, indicated by a slow flashing green wireless status indicator.
