SpeedyBee F405 AIO User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
F405 AIO
User Manual
V1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F405 AIO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SpeedyBee F405 AIO

Summary of Contents for SpeedyBee F405 AIO

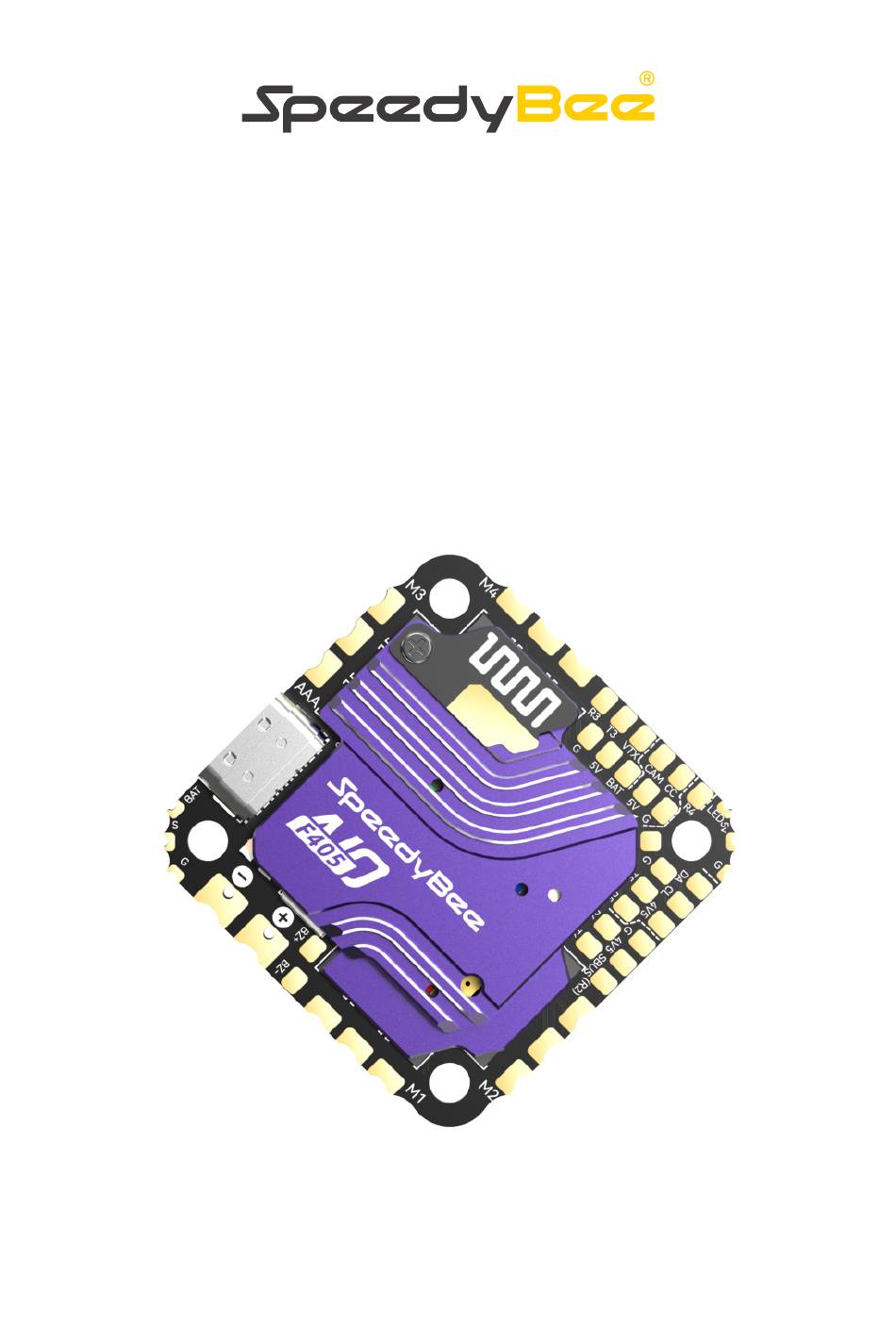

  • Page 1 F405 AIO User Manual...

  • Page 2: Table Of Contents

    Contents Part 1 - Overview Specs Overview Dimensions Package Layout Part 2 - Flight Controller Peripheral Connection Installation Orientations App Connection Part 3 - ESC Connecting Motors and Power Wires Part 4 - Firmware Flashing Flight Controller Firmware Flashing ESC Firmware Flashing Part 5 - Specifications Specifications...

  • Page 3: Part 1 - Overview

    Part 1 - Overview Specs Overview Product Name SpeedyBee F405 AIO Bluetooth Tuning Supported Firmware Update via App Supported Power Input 3-6S Mounting 25.5x25.5mm Dimensions 33.0mm (L) x 33.0mm (W) x 8mm (H) Weight 13.6g (with CNC) Dimensions 1.6mm 25.5mm...

  • Page 4: Package

    Package DJI Air Unit 6pin*80mm Connection Cable x 1 35V 470uF SpeedyBee F405 AIO x 1 Soldering Practice Board x 1 Electrolytic Capacitor x 1 M2 * 6.6mm Silicone Dampening Sleeves x4 M2 Silicone Dampening Ring x 5 M2 Nylon Hex Nut x 5...

  • Page 5: Layout

    Layout Gyroscope MCU: F405 Red LED...
  • Page 6 ① Hold the BOOT button (the only button on the flight controller) and power it on. The flight controller will enter DFU mode. ② Open the SpeedyBee App, go to the firmware flashing page, and follow the prompts to re-flash the firmware.

  • Page 7: Part 2 - Flight Controller

    Part 2 - Flight Controller Peripheral Connection MOTOR4 SBUS Receiver ELRS Receiver MOTOR1 SBUS SBUS Buzzer Receiver...
  • Page 8 Soldering Practice Board The included soldering practice board has the same pad layout as the F405 AIO. It is recommended to scan the QR code to watch the soldering tutorial and practice on the board before performing the actual soldering.

  • Page 9: Setting Steps

    Peripheral Connection TBS Receiver Connection and Settings: Identifier Configuration/MSP Serial Rx Telemetry Output Sensor Input Peripherals AUTO AUTO AUTO Disabled Disabled Disabled 115200 USB VCP AUTO AUTO AUTO Disabled Disabled Disabled 115200 UART1 AUTO AUTO AUTO Disabled Disabled Disabled 115200 UART2 AUTO AUTO...
  • Page 10 Peripheral Connection ELRS Receiver Connection and Settings: Identifier Configuration/MSP Serial Rx Telemetry Output Sensor Input Peripherals AUTO AUTO AUTO Disabled Disabled Disabled 115200 USB VCP AUTO AUTO AUTO Disabled Disabled Disabled 115200 UART1 AUTO AUTO AUTO Disabled Disabled Disabled 115200 UART2 AUTO AUTO...
  • Page 11 Peripheral Connection SBUS Receiver Connection and Settings: Identifier Configuration/MSP Serial Rx Telemetry Output Sensor Input Peripherals AUTO AUTO AUTO Disabled Disabled Disabled 115200 USB VCP AUTO AUTO AUTO Disabled Disabled Disabled 115200 UART1 AUTO AUTO AUTO Disabled Disabled Disabled 115200 UART2 AUTO AUTO...
  • Page 12 Peripheral Connection Spektrum SRXL2 Receiver Connection and Settings: Identifier Configuration/MSP Serial Rx Telemetry Output Sensor Input Peripherals AUTO AUTO AUTO Disabled Disabled Disabled 115200 USB VCP AUTO AUTO AUTO Disabled Disabled Disabled 115200 UART1 AUTO AUTO AUTO Disabled Disabled Disabled 115200 UART2 AUTO...
  • Page 13 Peripheral Connection HD VTX Connection and Settings: 标识符 标识符 设置/MSP 设置/MSP 串行数字接收机 串行数字接收机 遥测输出 遥测输出 遥测输出 遥测输出 外设 外设 Identifier Configuration/MSP Serial Rx Telemetry Output Sensor Input Peripherals AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO 已禁用 已禁用 已禁用 已禁用...
  • Page 14 Peripheral Connection HD VTX Connection and Settings: DJI HD VTX Cable Plug Connection SBUS SBUS 7.4-26.4V DJI HD VTX Warning! The DJI Air Unit only supports 3-4S batteries. Do not connect directly to a 6S battery, as it could damage the DJI Air Unit.
  • Page 15 Peripheral Connection Analog VTX Connection and Settings: 标识符 设置/MSP 串行数字接收机 遥测输出 遥测输出 外设 Identifier Configuration/MSP Serial Rx Telemetry Output Sensor Input Peripherals 已禁用 AUTO AUTO 已禁用 AUTO AUTO 已禁用 AUTO AUTO Disabled Disabled Disabled 115200 USB VCP AUTO AUTO AUTO 已禁用...
  • Page 16 Peripheral Connection GPS Connection and Settings: 标识符 设置/MSP 串行数字接收机 遥测输出 遥测输出 外设 Identifier Configuration/MSP Serial Rx Telemetry Output Sensor Input Peripherals AUTO AUTO AUTO 已禁用 AUTO 已禁用 AUTO 已禁用 AUTO Disabled Disabled Disabled 115200 USB VCP 已禁用 AUTO AUTO 已禁用 AUTO AUTO 已禁用...
  • Page 17 Users can customize the LED effects via the SpeedyBee App. Operation Steps： 1. Connect to the F405 AIO via the SpeedyBee App. 2. Go to the “Toolbox” at the bottom right corner of the App interface and select “Meteor LED Settings”...
  • Page 18 Peripheral Connection LED Strip Connection: LED Strip Type-C extension Module: 5V_IN 5V_OUT Power Expansion Board: V_IN Expand Multiple Power for Greater DIY Flexibility The power expansion board can convert 1 power source into 4, eliminating the hassle of soldering multiple wires to the same pad and allowing for easy connection of more power devices, such as receivers, LED strips, VTX, GPS, cameras, ect.
  • Page 19 Settings for Different Installation Orientation 1.Install with the front facing up: 2.Install with the front facing up and rotated 45°counterclockwise: 3.Install with the back facing up: 4.Install with the back facing up and rotated 45°clockwise：...

  • Page 20: App Connection

    App Connection If it is inconvenient to press the BOOT button during installation, you can use the DFU function via APP to wirelessly trigger the flight controller to enter recovery mode. How to Use Wireless DFU Function：...

  • Page 21: Part 3 - Esc

    Part 3: ESC (Electronic Speed Controller) Connecting Motors and Power Wires Motor 4 Motor 2 Motor 3 Motor 1 XT30 Power Cable 470uF Low ESR Capacitor Tip: To protect the AIO 昀氀ight controller from voltage spikes when powering on, it is strongly recommended to use the included 470uF low ESR capacitor.

  • Page 22: Part 4: Firmware Flashing

    Part 4: Firmware Flashing Flashing the Flight Controller Firmware 1. After entering DFU mode, click the“Update Firmware”button. 2. Click“Load Firmware (Local)” at the bottom right corner.
  • Page 23 Flashing the Flight Controller Firmware 3. Choose the appropriate firmware. 4. Click“Flash Firmware” 5. Wait until the firmware flashing is complete.
  • Page 24 Flashing the ESC Firmware The ESC suppo爀琀s 昀氀ashing with either BLHeli_S or BlueJay 昀椀rmware. The process is as follows: 1. Power the AIO with a batte爀礀. 2. Connect the AIO to the computer via a USB cable. 3. Go to the following link to 昀氀ash the 昀椀rmware: https://esc-con昀椀gurator.com/ *Note: Set the ESC type to ' J -H-40'.
  • Page 25 Flashing the ESC Firmware...

  • Page 26: Part 5 - Specifications

    Specifications Flight Controller Product Name SpeedyBee F��� AIO STM��F��� Gyro ICM-�����P USB Port Type Type-C Barometer SPA��-��� Supported Bluetooth BLE Supported, Bluetooth speed enhancement - �.� Wireless Flight Controller Supported (no need to press physical BOOT button) Firmware Update Wireless Download & Black...

  • Page 27: Specifications

    Mounting ��.� x ��.�mm, �mm hole diameter Dimensions ��.�mm (length) x ��.�mm (width) x �mm (height) Weight ��.�g (including CNC) Product Name SpeedyBee F��� AIO Input Voltage �-�S LiPo battery Continuous Current ��A Burst Current ��A (��s) Supports DSHOT���/���; other protocols may cause severe errors, ESC Protocol please use with caution.
