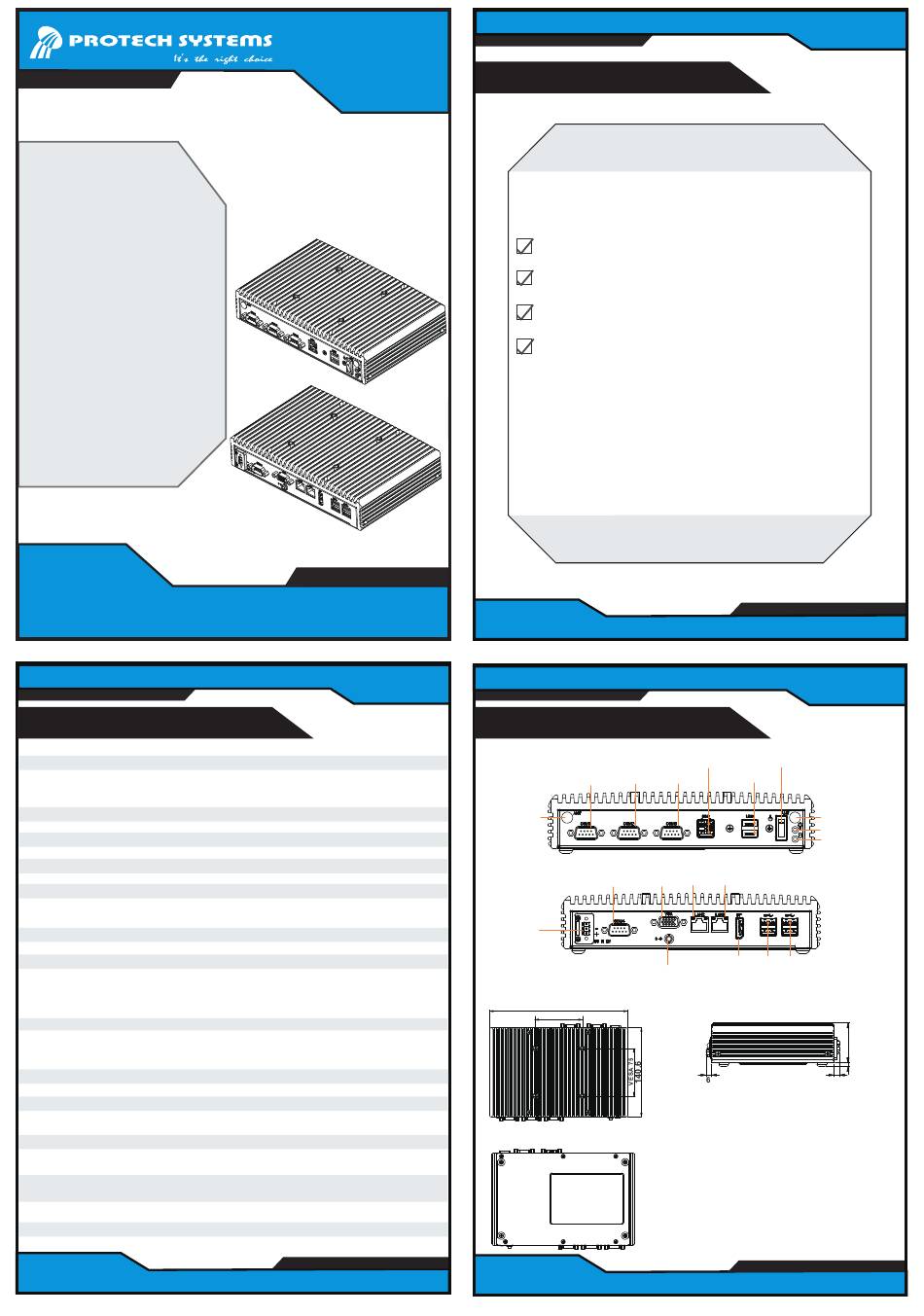

Protech Systems BS-E098 Quick Reference Manual

BS-E098
Quick
Reference
Guide
Specifications
System
CPU BS-E098RA-N1B: Pentium
BS-E098RA-N0B: Celeron
BS-E098RA-U1B: Pentium
BS-E098RA-U0B: Celeron
Memory Support 1x SO-DIMM socket,supporting 1600/1867 DDR3L DRAM
up to 8G (non-ECC)
Drive Bay 1 x 2.5" 7mm SATAIII HDD / SSD
Power Supply DC 12V power input (3 pins lockable terminal block)
®
O.S. Support Windows 10 64bit, Ubuntu14.04 64bit (kernel 4.4)
Dimension (WxHxD) 217.5mm x 45mm x 148mm
Weight 2 kg
Certificate FCC/CE
I/O Ports
USB BS-E098RA-N1B/N0B: 4 x USB 3.0 (rear), 2 x USB 2.0 (front)
BS-E098RA-U1B/U0B: 4 x USB 3.0 (rear), 4 x USB 2.0 (front)
Serial Ports COM1~COM3 on front I/O, COM4 on rear I/O
COM2 RS-232/422/485 selectable by BIOS (default: RS-232)
RS-485 supports auto flow control (selected by BIOS)
COM3/4 RI/5V/12V selectable by jumper (default:RI)
Antenna Hole 2 x antenna holes for reservation
LAN 2 x GbE LAN, supports Wake-On-LAN
Expansion Slots/ BS-E098RA-N1B/N0B:1 full-sized mPCIe,
mSATA 1 full-sized mSATA (with USB signals)
BS-E098RA-U1B/U0B:1 full-sized mSATA (with USB signals)
Audio 1 x Line-out (on rear I/O panel)
Display
Display 1 x DP1.2 resolution: up to 4096x2160@60Hz (rear I/O)
1 x VGA resolution: up to 1920x1200@60Hz (rear I/O)
Others
Software Support Hardware Monitor API (for Temp) and WatchDog API
Optional Item 60W Power adapter with lockable 3-pin terminal block
Environment
Operating Temp. SSD: 0°C ~ 60°C (32°F~140°F)
HDD: 0°C ~ 40°C (32°F~104°F)
Storage Temp. -40°C ~ 86°C (-40°F~185°F)
Humidity 20% ~ 95%
Ver. Q1
All Rights Reserved. Copyright 2017
BS-E098
®
N4200 4C/6W/2.5GHz
®
N3350 2C/6W/2.4GHz
®
N4200 4C/6W/2.5GHz
®
N3350 2C/6W/2.4GHz
Packing Checklist
If you discover any item below damaged or lost,
please contact your vendor.
BS-E098
This Quick Reference Guide
Driver/ Manual DVD
Mini Jumper (2.0 mm)

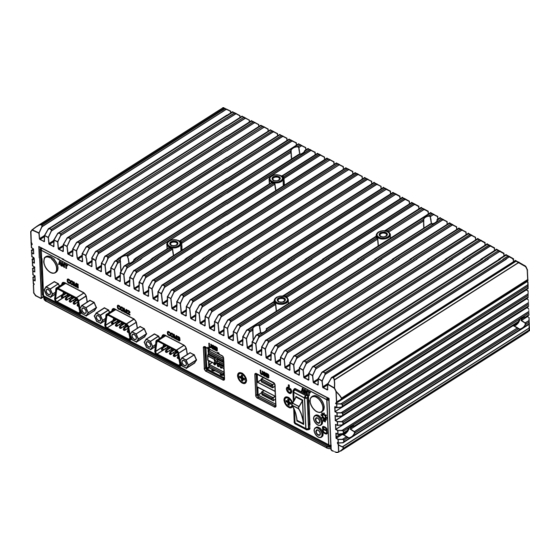

System View
Front View
COM1 COM2
Optional
Antenna
Rear View
COM4 VGA
DC Power
Input
Line-out
Top View
217.5
VESA 75
Bottom View
BS-E098
x1
x1
x1
x6
BS-E098
Power
Optional
Button
USB 2.0
USB 2.0
COM3
Optional
Antenna
Power LED
HDD LED
LAN2 LAN1
4 x
DP
USB 3.0
Side View
6
45.98
4
