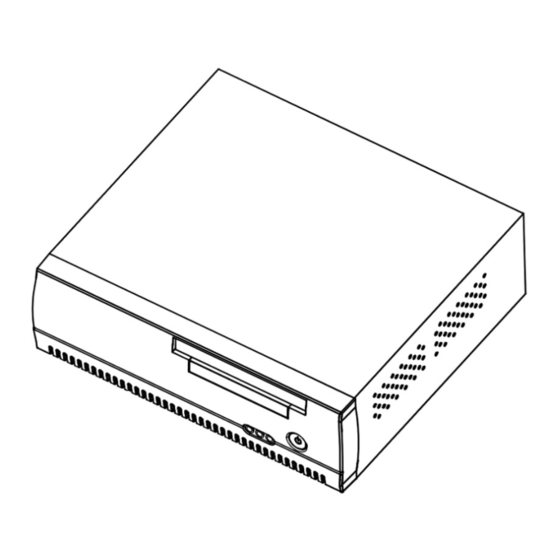

Protech Systems SA-5082 Quick Reference Manual

SA-5082
Quick
Reference
Guide

Specifications

Specifi ations
System
CPU Support
Chipset
Memory Support
Power Supply
OS Support
Dimension
System Weight
Certificate
I/O Ports
USB Port
Keyboard/Mouse
Audio
Parallel Port
Serial Port
Digital I/O
LAN
VGA
DC out
Drive Bay
Expansion Slot
Environment
Operating Temp.
Storage Temp.
Humidity
All Right Reserved Copyright 2012
®
Intel Atom™ D525 (1.8GHz)
®
Intel ICH8M
2 x 204 pin SO-DIMM DDR3 (up to 4 GB)
Flex ATX 180W
Windows XP / 7 / XPE
300mm x 94mm x 270mm (11.8" x 3.7" x 10.6")
4.2 kg
FCC/CE
6 x USB 2.0
2 x PS/2 port
Lin-in/ Line-out/ MIC
1 x Parallel Port
4 x COM port (2 Powered COM, 5/12V selectable at 9
1 x 8bit
2 x LAN (10/100/1000 Mbps)
1 x D-SUB, CRT supported
1 x LVDS: 18-bit, resolution up to 1366 x 768
1 x 12V
1 x 3.5" SATA HDD & 1 x Slim DVD-ROM or 2 x 2.5" SATA HDD / 1 x DVD-ROM
1 x CF slot, 1 x Mini PCIe slot, 1 x PCI slot
0 ~ 40°C
-20 ~ 60°C
20 ~ 90%

Packing Checklist

P
If you discover any item below damaged or lost,
please contact your vendor.
SA-5082
This Quick Reference Guide
AC Power Cord
Manual/Driver CD
Jumper (2.0mm)
Ver. Q2
Sy
th
pin)
SA-5082
X1
X1
X1
X1
X6
SA-5082
0
