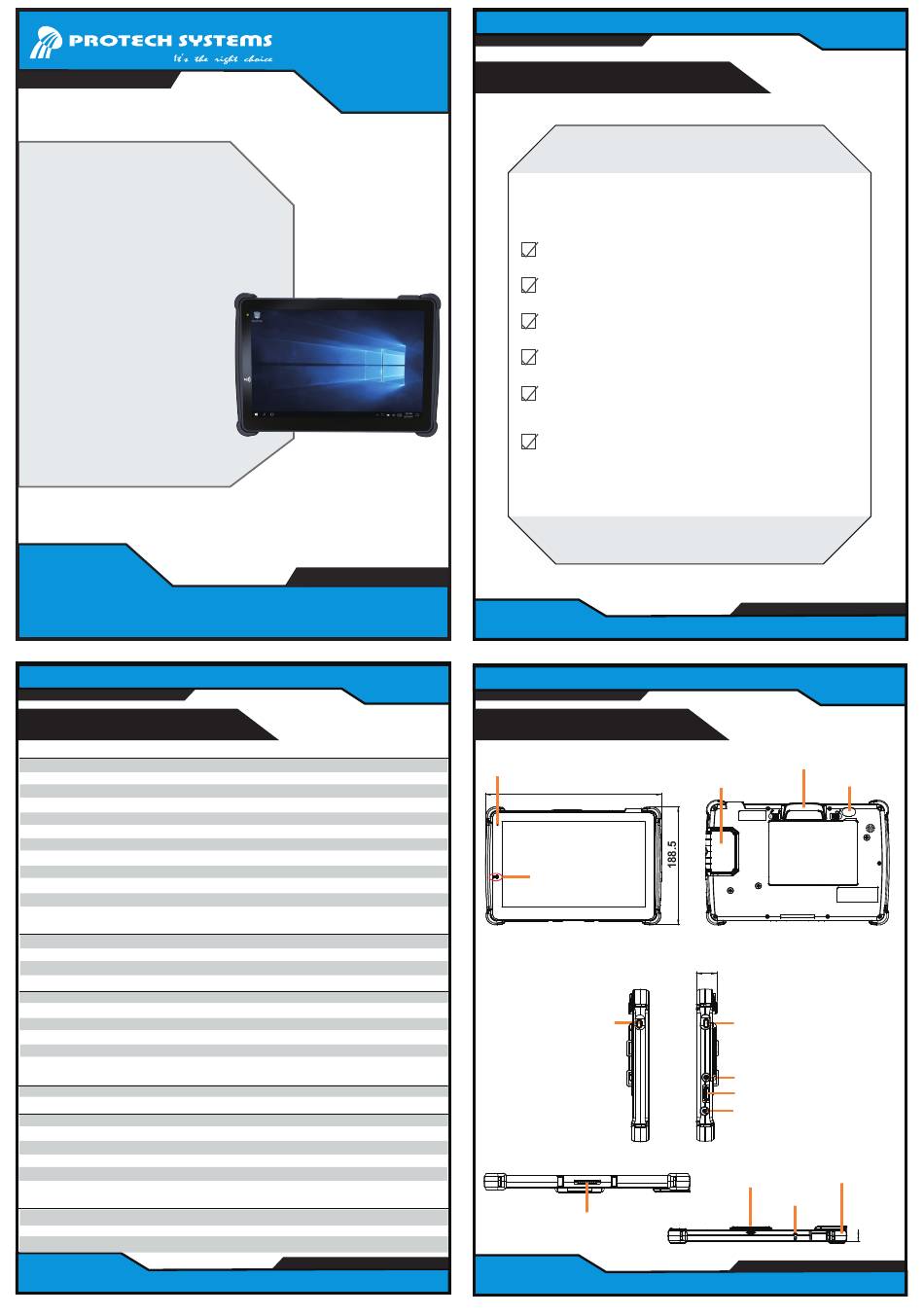

Protech Systems MH-5100 Quick Reference Manual

MH-5100
Quick
Reference
Guide
Specifications
System
CPU Type Intel Bay Trail T/CR Z3735F Processor
®
Memory Support 1 x DDR3L on board, up to 2GB
O.S. Windows 10 IoT Enterprise LTSB 2016 OS (32 bits)
®
Speaker 1W Speaker x 1
Battery Pack Main battery (1S2P) & RTC battery
BIOS Insyde BIOS / SPI Flash ROM
Wi-Fi + Bluetooth module 802.11 a/b/g/n wireless LAN and Bluetooth 4.0 module
G-Sensor Accelerator sensor
IP Rating IP54
Dimension (LxWxT) 259.9 mm x 175.9 mm x 17.7mm
System Weight Less than 838g
Power Supply DC 12V/2A/24W
Display
LCD Panel 10.1" LED backlight LCD, LVDS interface
Touch Panel 10.1" PCT (Focal touch IC) / I2C interface
Max. Resolution 1280x1800 dots WXGA
Integrated Devices
Barcode Scanner Honeywell N3680 2D Barcode scanner
3G Module 3.75G supports SIM card interface
NFC Module NXP
Rear Camera 5M pixels camera module with autofocus function
MSR Module IDTECH
Smart Card Reader Module IDTECH
Storage (SDIO Interface)
Storage 32GB eMMC storage and MicroSD storage for external memory expansion
External I/O Ports
DC-IN Jack 1 x DC-IN Jack
Cradle Connector 1 x POGO pins (1x10 pins)
USB Standard USB (Type A) x1 for external expansion
SD (Secure Digital) MicroSD Slot for internal memory expansion
SIM Card Slot For cellular network services
Audio Jack Audio Jack x 1
Environment
Operating Temp. 0°C~ 40°C (32°F ~ 104°F)
Storage Temp. -20°C~ 60°C (-4°F~ 140°F)
Operating Humidity 0%~ 90% (no condensation)
Ver. Q1
All Rights Reserved. Copyright 2017
MH-5100
Packing Checklist
If you discover any item below are damaged or
lost, please contact your vendor immediately.
MH-5100 Integrated Pad
This Quick Reference Guide
AC Power Adaptor
Manual/Driver DVD
Hand Strap Set
2 x pan head screws (M3 x 6 mm), Velcro badge)
Neck Strap
System View

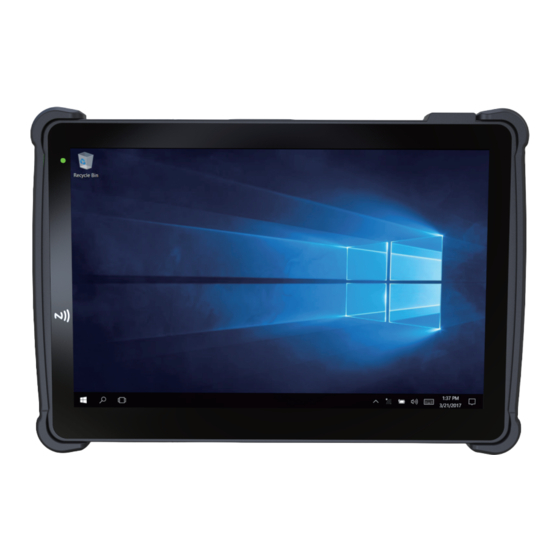

Front View
Power LED
267.84
NFC Module
Side View
Scan Button
Bottom View
POGO Pins
MH-5100
x1
(2 x strap brackets,
MH-5100
Rear View
MSR Module
Smart Card Reader
Battery Pack
25.2
Scan Button
Power Button
USB Port
DC-IN
Top View
Barcode Scanner
MSR Module
Earphone Jack
x1
x1
x1
x1
x1
Unit: mm
Camera
17.7
