ETTING OF GROUP NUMBER WITH THE WIRED REMOTE CONTROLLER
a b
SETTING
2-6 5 4 3
The group number set with the wired remote controller is translated to a Modbus address according
to the table below
Group number
(remote controller address)
Modbus address
EKFCMBCB7
Modbus interface PCB kit
4PW65443-1B – 2021.06
c 1
2
3
4
5
6
1-00
1

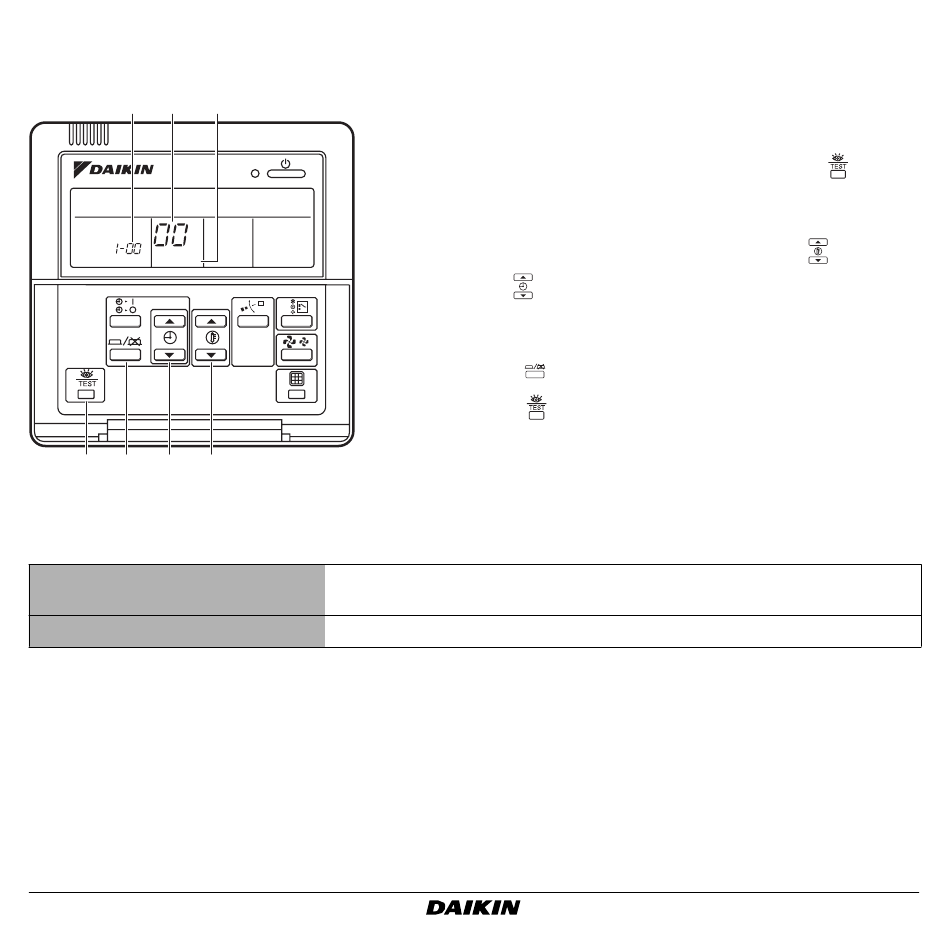

Activate power to the centralized control system and
to the fan coil unit.
While in the normal mode, hold down the
for a minimum of 4 seconds. The controller will enter
the field set mode (c).
Select the mode number " 00 " (b) with the
Use the button to select the group number (a) for
each group. (The group number increases in the order
of 1-00 , 1-01 , ..., 1-15 , 2-00 , ..., 4-15 .)
Press the button to set the selected group number.
Press the button to return to the normal mode.
...
1-01 1-15
2 ... 16
... ...
2-15
... 32 ...
