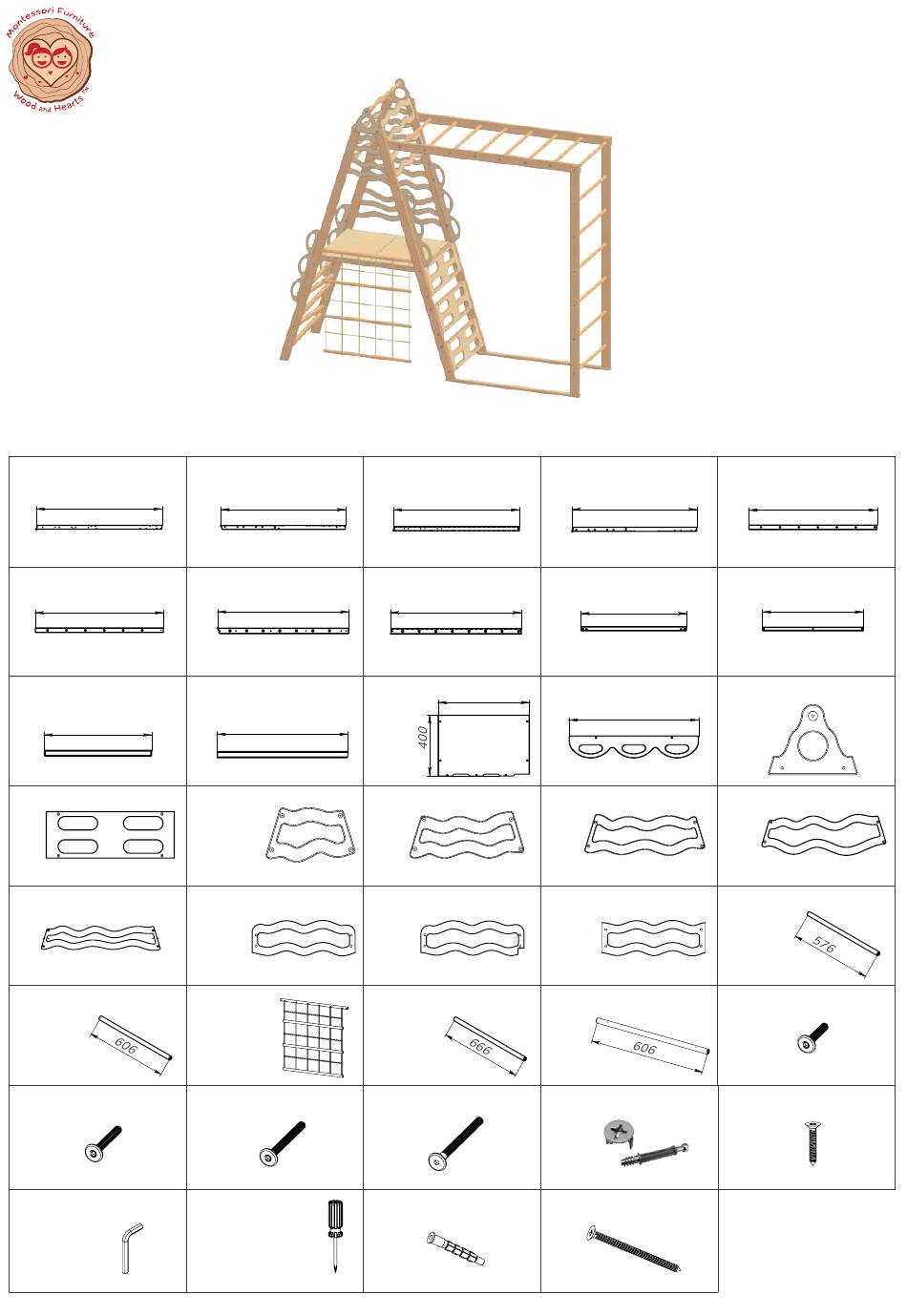

"Wave" Teepee Indoor Playground
1 - Askew front stand
1945
1 pc.
6 - Vertical front stand
1735
1 pc.
11 - Lintel
540
1 pc.
16 - Hooksr
3 pcs.
21 - Back wall #5
1 pc.
26 - Nog #2
13 pcs.
b - Screws M6x40
40 pcs.
g - Hex key 4 mm
1 pc.
2 - Askew front short stand
1925
1 pc.
7 - Upper back plank
1519
1 pc.
12 - Askew plank
607
6 pcs.
17 - Back wall #1
2 pcs.
22 - Side wall #1
1 pc.
27 - Rope
ladder
1 pc.
c - Screws M6x50
20 pcs.
h - Screwdriver
1 pc.
ASSEMBLY DETAILS
3 - Askew back stand
1945
1 pc.
8 - Upper front plank
1519
1 pc.
13 - Base
600
2 pcs.
18 - Back wall #2
2 pcs.
23 - Side wall #2
1 pc..
28 - Nog #3
1 pc.
d - Screw M6x70
2 pcs.
i - Dowel
4 pcs.
4 - Askew back short stand
1925
1 pc.
9 - Lower plank
1020
2 pcs.
14 - Handle
600
4 pcs.
19 - Back wall #3
1 pc.
24 - Side wall #3
2 pcs.
29 - Nog #4
6 pcs.
e - Minifix set
16 pcs.
j - Screws 6x100
4 pcs.
5 - Vertical back stand
1735
1 pc.
10 - Middle plank
780
2 pcs.
15 - Upper cover
2 pcs.
20 - Back wall #4
1 pc.
25 - Nog #1
1 pc.
a - Screw M6x30
22 pcs.
f - Screw 3x25
54 pcs.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Wave and is the answer not in the manual?

Questions and answers

Summary of Contents for Montessori Furniture Wave

  • Page 1 "Wave" Teepee Indoor Playground ASSEMBLY DETAILS 1 - Askew front stand 2 - Askew front short stand 3 - Askew back stand 4 - Askew back short stand 5 - Vertical back stand 1945 1925 1925 1945 1735 1 pc.
  • Page 2 е е е е е е е е Pic. 1 Take the stand (3) and using the screwdriver (h) install the dowels from minifixes (e). See Pic.1. е е е е е е е е Pic. 2 Take the stand (1) and using the screwdriver (h) install the dowels from minifixes (e). See Pic.2.
  • Page 3 Pic. 3 Install the side stands #1 and #3 (22, 24) and close the eccentric ties (e) clockwise by 180 degreed. Then attach the askew planks (12) with the screws (c) and hex keys (g). See Pic. 3. е е е...
  • Page 4 е е е е е е е е Pic. 5 Take the stand (4) and using the screwdriver (h) install the dowels from minifixes (e). See Pic.5. Pic. 6 Take the nogs (29) and using the self-tapping screws (f) and screwdriver (h), attach the hooks (16).
  • Page 5 Pic. 7 Install the sidewalls #2, 3 (23, 24) and details depicted in the Pic. 6 between the front and back askew stands and close the eccentric ties (e) clockwise by 180 degrees and screw the screws (b) in with the hex key (g). See Pic. 7. Pic.
  • Page 6 Pic. 9 Join the details despited in the Pic. 3,7.8 with the screws (c) and hex key (g). See Pic. 9. Pic. 10 Attach the bases (13) to the received structure with the help of self-tapping screw (f) and screwdriver (h). See Pic.10.
  • Page 7 Pic. 11 Take the rope ladder (27) and attach it with the help of screws (b) and hex key (g) to the previously assembled construction. See Pic.11. Pic. 12 Take the received construction and attach the back walls (17, 18, 19, 20, 21) one by one with the self-tapping screws (f) and screwdriver (h).
  • Page 8 Pic. 13 Take the upper cover (15) and attach it with the help of screws (a) and hex key (g) to the previously assembled construction. Then attach the nog (28) with screws (a) to the upper cover (15). See Pic.13. а...
  • Page 9 Pic. 15 Back walls #1,2 (17,18) attach with self-tapping screws (f) and screwdriver (h) to the previously assembled construction, from its inner side. See Pic. 15. а а Pic. 16 Two handles (14) are to the attached to the assembled structure with screws (a) and hex key (g).
  • Page 10 Pic. 17 Attach another handles (14) with screws (a) and hex key (g). See Pic. 17. Pic. 18 7 nogs (26) are to be attached to the upper planks (7,8) one by one with the screws (b) and hex key (g). See Pic.18.
  • Page 11 Pic. 19 6 nogs (26) are to be attached to the vertical stands (5.6) with the screws b) and hex key (g) one by one. See Pic.19. Pic. 20 Join the constructions shown in the Pic, 17, 18 with the screws (c) and hex key (g). See Pic.20.
  • Page 12 Pic. 21 Attach the semi-product to the previously assembled construction shown in the Pic. 19, installing the nog (25) beforehands with screws (d) and hex key (g). See Pic.21. Pic. 22 Attach the lower planks (9) with the screws (a) and hex key (g). See Pic. 22.
  • Page 13 Attachment to the bricj or concrete wall Pic. 23 The ready construction is to be attached to the brick or concrete wall with the help of dowels (i) and self-tapping screws (j). See Pic.23.
  • Page 14 Attachment to the plasterboard wall. Pic. 24 The ready construction is to be attached only to the wooden or metal profile of the wall with self-tapping screws (j). See Pic.24. To be used indoors, for its intended purpose only and under the direct supervision of an adult! All the responsibility for children’s injuries received during games on the furniture lies on adults watching after them.
