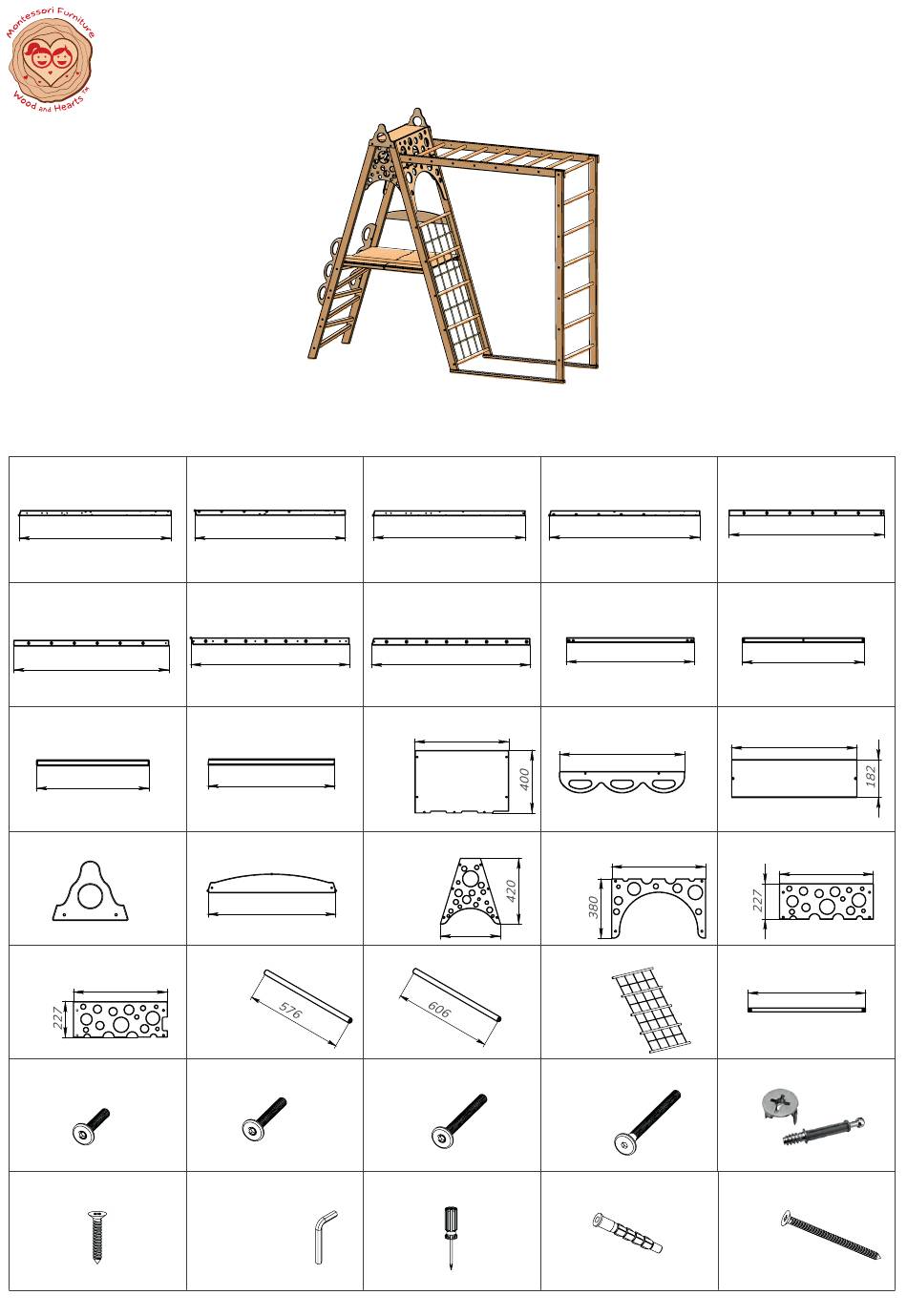

"Circle" Teepee Indoor Playground
1 - Askew front stand
1945
1 pc.
6 - Vertical front stand
1735
1 pc.
11 - Lintel
540
1 pc.
16 - Upper cover
2 pcs.
21 - Sidewall #4
600
1 pc.
a - Screw M6x30
18 pcs.
f - Self-tapping screw 3x25
28 pcs.
2 - Askew front short stand
1925
1 pc.
7 - Upper back plank
1519
1 pc.
12 - Askew plank
607
6 pcs.
17 - Back cover
613
1 pc.
22 - Nog #1
1 pc.
b - Screw M6x40
38 pcs.
g - 4 mm hex key
1 pc.
ASSEMBLY DETAILS
3 - Askew back stand
1945
1 pc.
8 - Upper front plank
1519
1 pc.
13 - Base
600
2 pcs.
18 - Sidewall #1
385
2 pcs.
23 - Nog #2
13 pcs.
c - Screw M6x50
20 pcs.
h - Screwdriver
1 pc.
4 - Askew back short stand
1925
1 pc.
9 - Lower plank
1020
2 pcs.
14 - Handle
600
2 pcs.
19 - Sidewall #2
600
2 pcs.
24 - Rope ladder
1 pc.
d - Screw M6x70
2 pcs.
i - Dowel
4 pcs.
5 - Vertical back stand
1735
1 pc.
10 - Middle plank
780
2 pcs.
15 - Upper board
600
1 pc.
20 - Sidewall #3
600
1 pc.
25 - Nog #3
751
1 pc.
e - Set of minifixes
16 pcs.
j - Self-tapping screw 6x100
4 pcs.
Advertisement
Related Manuals for Montessori Furniture Circle
Summary of Contents for Montessori Furniture Circle
- Page 1 "Circle" Teepee Indoor Playground ASSEMBLY DETAILS 1 - Askew front stand 2 - Askew front short stand 3 - Askew back stand 4 - Askew back short stand 5 - Vertical back stand 1735 1945 1925 1945 1925 1 pc.
- Page 2 е е е е е е е е Pic. 1 Take the stand (3) and using the screwdriver (h) install the dowels from minifixes (e). See Pic.1. е е е е е е е е Pic. 2 Take the snatd (1) and using the screwdriver (h) install the dowels from minifixes (e). See Pic.2.
- Page 3 с с с с с с с с с с с с Pic. 3 Install the sidewalls #2, #3 (19, 20) between the stands (1, 3) and close the eccentric ties (e) clockwise by turning them by 180 degrees. Then attach the askew planks (12) with the help of screws (c) and hex key (g).
- Page 4 е е е е е е е е Pic. 5 Take the stand (4) and using the screwdriver (h) install the dowels from minifixes (e). See Pic.5. Pic. 6 Install the sidewalls (19, 21) between the stands (2, 4) and close the eccentric ties (e) clockwise by turning them by 180 degrees.
- Page 5 Pic. 7 Take the lintel (11) and using the screws (c) and hex key (g) attach the middle planks (10). See Pic.7. с с с с Pic. 8 Attach the semi-products depicted in the Pic.3, Pic,6 and Pic.7 with the help of screws (c) and hex key (g).
- Page 6 Pic. 9 Take the bases (13) and attach them to the middle plank (10) and lintels (11) with the help of self-tapping screws (f) and screwdriver (h). See Pic.9. с Pic. 10 Attach the nog #3 (25) to the received construction with the help of screws (c) and hex key (g).
- Page 7 а а Pic. 11 Attach the back cover (17) to the previously assembled construction with the help of screws (a) and hex key (g). See Pic.11. а а а а а а Pic. 12 Attach the upper covers (16) to the received structure with the scerws (a) and hex key (g).
- Page 8 а а а а Pic. 13 Handles (14) are to be attached to the construction with screws (a) and hex key (g). See Pic.13. Pic. 14 Take self-tapping screws (f) and attach the sidewall #1 (18) with them. Attach another one from the opposite side in a same way. See Pic.14.
- Page 9 Pic. 15 Take the upper board (15) and attach ot to the assembled construction with self-tapping screws (f) and screwdriver (h). See Pic.15. Pic. 16 Take 7 nogs (23) and attach them one by one to the back and front upper planks (7, 8) with the screws (b) and hex key (g).
- Page 10 Pic. 17 Take 6 nogs (23) and attach them one by one to the stands (5,6) with the screws (b) and hex key (g). See Pic.17. Pic. 18 Join the constructions depicted in the Pic. 15 and Pic.16 with the help of screws (b) and hex key (g).
- Page 11 Pic. 19 Attach the semi-product shown in the Pic.17 to the previously assembled construction. Before that, installl the nog (22) with the screw (d) and hex key (g). See Pic.19. а а а а а а Pic. 20 а а Attach the lower planks (9) to the received structure with the screws (a) and hex key (g).
- Page 12 Attachment to the bricj or concrete wall Pic. 21 The ready construction is to be attached to the brick or concrete wall with the help of dowels (i) and self-tapping screws (j). See Pic.21.
- Page 13 Attachment to the plasterboard wall. Pic. 22 The ready construction is to be attached only to the wooden or metal profile of the wall with self-tapping screws (j). See Pic.22. Use only for its intended purpose, indoors, under the direct supervision of adults.
