1 - Front base
984
2 pcs.
4 - Ladder with 7 steps #2
1 pc.
7 - Side stand #1
1 pc.
10 - Connector
4 pcs.
a - Screw M6x20
12 pcs. + 2 spare
d - Screw M6x30
2 pcs. + 1 spare

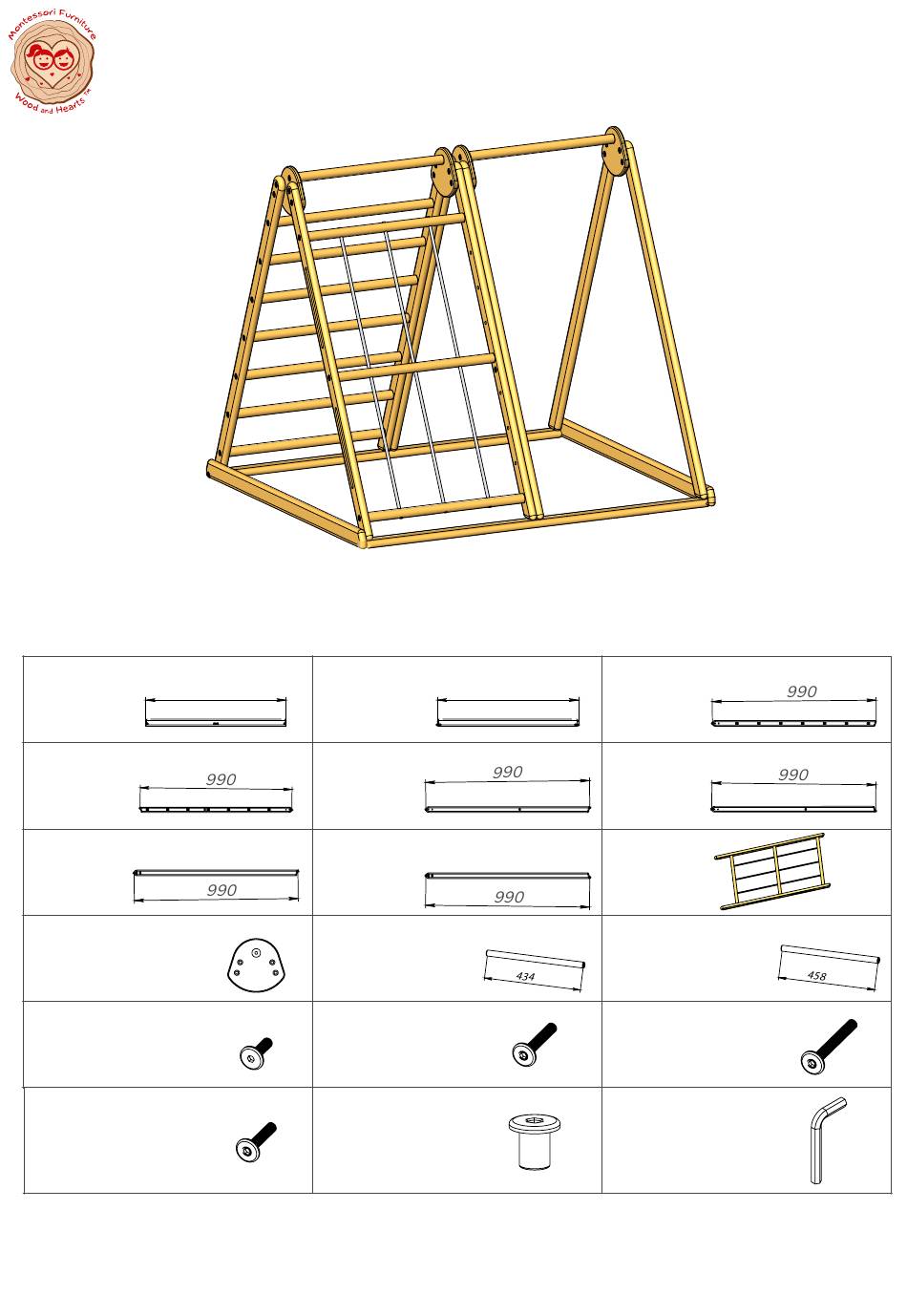

Small Triangle
ASSEMBLY DETAILS
2 - Side base
2 pcs.
5 - Middle stand #1
1 pc.
8 - Side stand #2
1 pc.
11 - Short nog
2 pcs.
b - Screw M6x35
26 pcs. + 5 spare
e - Erickson nut M6x15
14 pcs. + 2 spare
3 - Ladder with 7 steps #1
990
1 pc.
6 - Middle stand #2
1 pc.
9 - Rope
ladder
1 pc.
12 - Long nog
7 pcs.
c - Screw M6x50
4 pcs. + 1 spare
f - 4 mm hex key
2 pcs.
Advertisement
Related Manuals for Montessori Furniture Small Triangle
Summary of Contents for Montessori Furniture Small Triangle
- Page 1 Small Triangle ASSEMBLY DETAILS 1 - Front base 3 - Ladder with 7 steps #1 2 - Side base 2 pcs. 2 pcs. 1 pc. 4 - Ladder with 7 steps #2 6 - Middle stand #2 5 - Middle stand #1 1 pc.
- Page 2 Pic. 1 Take the Side base (2) and using the srews (b) and keys (f) attach the front base (1). See Pic.1. Pic. 2 Take another side base (2) and attach it to the received structure. See Pic. 2. Pic. 3 Take the ladder with steps #1 and using the screws (b) and key (f) attach the long nog (12).
- Page 3 Pic. 4 Take the ladder with steps #2 and using the screws (b) and keys (f) attach it to the previously assembled structure. See Pic.4. Pic. 5 Take the middle stand #1 and using the screws (b), nut (e) and keys (f) attach it to the ladder with 7 steps.
- Page 4 Pic. 6 Take the rope ladder (9) ans using the screws (d), nut (e) and keys (f) attach the middle stand #2. See Pic. 6. Pic. 7 Using the screws (b) and hex key (f) join the received structures depicted in Pic.
- Page 5 Pic. 8 Using the screws (b) and hex key (f) join the received structures depictes in Pic. 6 and Pic,.7. See Pic. 8 Pic. 9 Take the side stand (7, 8) and using the screws (b) and keys (f) attach it to the previously assembled structure.
- Page 6 а а Pic. 10 Assemble the Connector (10) and Short nog (11) as shown in the Pic. 10. Screw the parts together with screws (a), using hex key (f). Pic. 11 Assemble the parts together as shown in the Pic. 11. Screw the parts together with screws (a), (c), nuts (e) and both hex keys (f) To be used for its intended purpose only and under the direct supervision of an adult!
