Swedish ladder "Bridge"

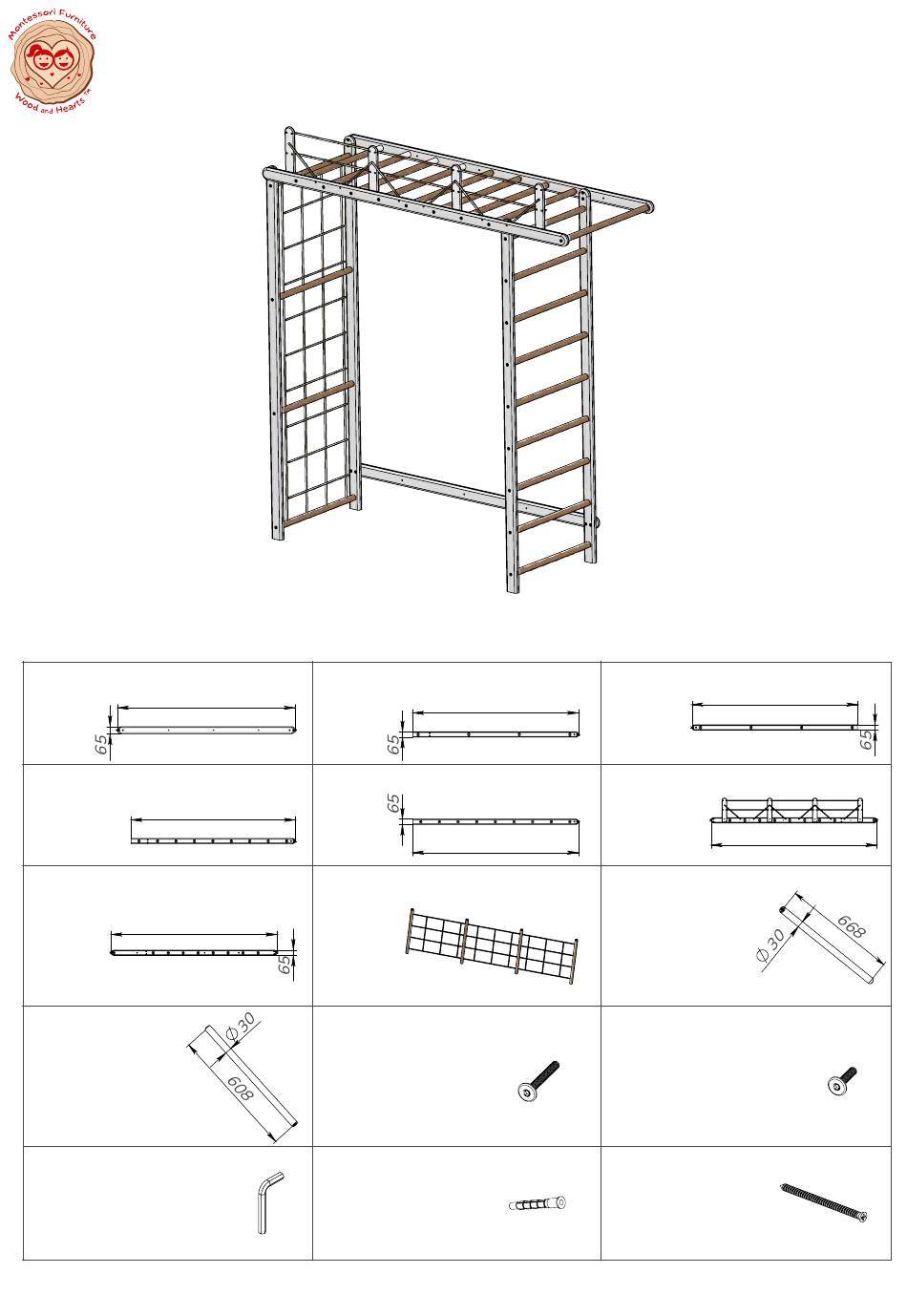

ASSEMBLY DETAILS
2 - Rope sidewall #1
1 pc.
5 - Ladder sidewall with 9 steps #2
1 pc.
8 - Rope ladder
1 pc.
a - Screw M6x40
56 pcs. + 3 pcs. spare
d - Dowel
6 pcs.
3 - Rope sidewall #2
1990
1 pc.
6 - Upper sidewall of the ladder #1
1990
1 pc.
9 - Long nog
9 pcs.
b - Screw M6x25
8 pcs. + 1 pc. spare
e -Self-tapping screw 6x100
6 pcs.
1990
1990
Advertisement
Related Manuals for Montessori Furniture Bridge
Summary of Contents for Montessori Furniture Bridge
- Page 1 Swedish ladder "Bridge" ASSEMBLY DETAILS 1 - Back bar 3 - Rope sidewall #2 2 - Rope sidewall #1 1990 1600 1990 1 pc. 1 pc. 1 pc. 4 - Ladder sidewall with 9 steps #1 6 - Upper sidewall of the ladder #1...
- Page 2 Pic. 1 Take the rope ladder (8) and connect it to to the rope sidewall (2) and (3) using the screws (a) and a hex key (c). See Pic.1. а а а а а а а а а а а а...
- Page 3 Pic. 3 Take the upper sidewall of the ladder (6) and fasten 4 bars vertically using the screws (b) and a hex key (c). See Pic. 3. Pic. 4 Connect the nog (9) to the previously assembled construction using the screws (a) and a hex key (c).
- Page 4 а а Pic. 5 Take the rope ladder assembled as depicted on Pic. 1, and connect it to the back bar (1) using the screws (a) and a hex key (c). See Pic. 5. а а Pic. 6 Take the previously assembled construction and connect it to theladder with 9 steps depicted on Pic.
- Page 5 а а а а а а а а Pic. 7 Take the previously assembled construction and connect it to the upper ladder depicted on Pic. 4, using the screws (a) and a hex key (c). See Pic. 7.
- Page 6 Wall mount installation onto the brick wall or the concrete wall: Pic. 8 Take the ready to install construction and wall mount it using the dowels (d) and the self tapping screws (e). See Pic. 8.
- Page 7 Wall mount installation ontoи the drywall: Pic. 9 If your option is a drywall, then the mount procees is to be done only to wooden plank in the wall. Take the ready to install construction and connect it to the wooden plank of your wall with the screws (e).
