OPERATING MANUAL

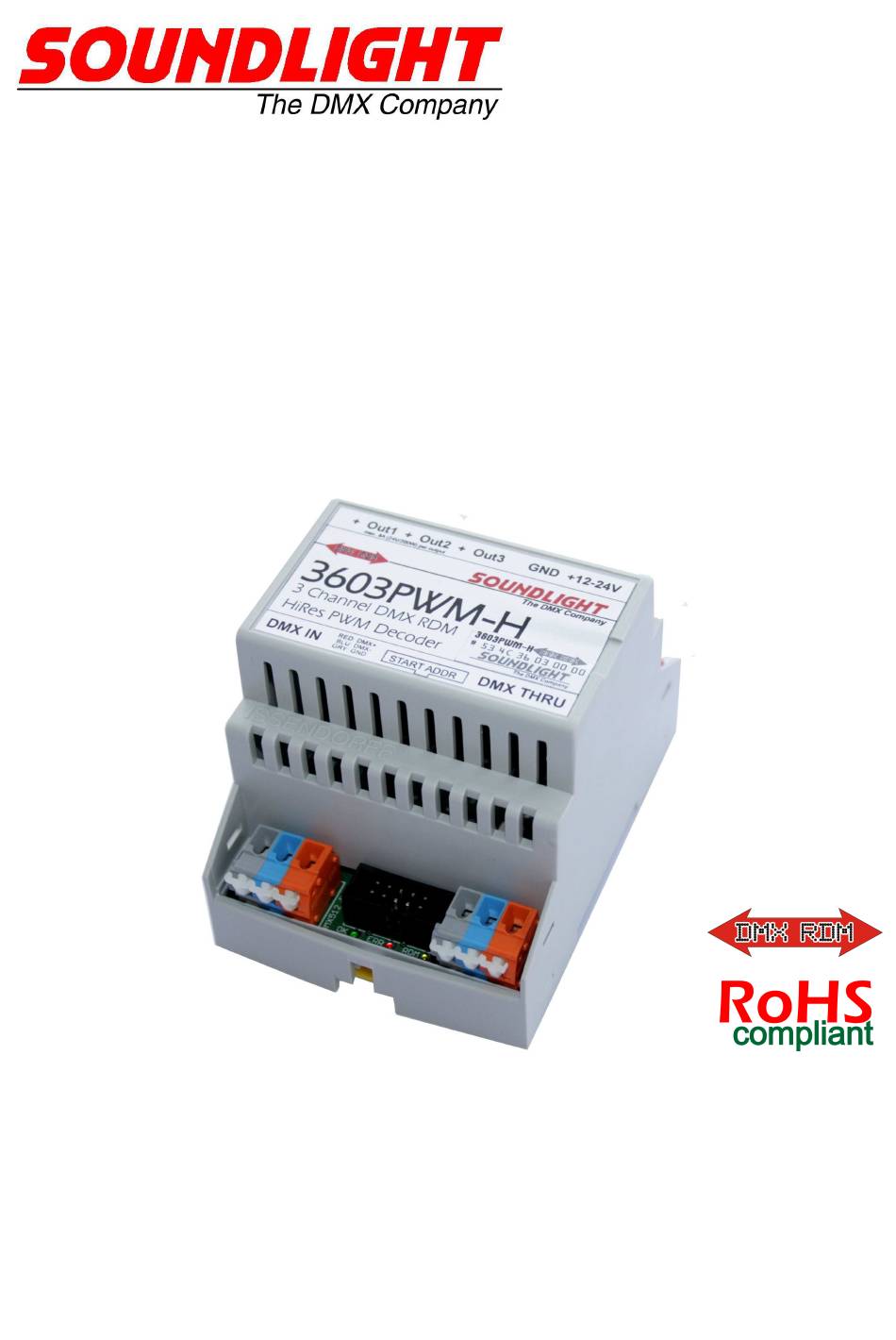

DMX / PWM Decoder 3603PWM-H Mk3 RDM
8/16 Bit Version
(C) SOUNDLIGHT 1996-2017 * ALL RIGHTS RESERVED * NO PART OF THIS MA-
NUAL MAY BE REPRODUCED, DUPLICATED OR USED COMMERCIALLY WITHOUT
THE PRIOR WRITTEN CONSENT OF THE OWNER
*
ALL STATEMENTS WITHIN
THIS MANUAL HAVE BEEN CHECKED CAREFULLY AND ARE BELIEVED TO BE AC-
CURATE, HOWEVER SOUNDLIGHT DOES NOT ASSUME ANY RESPONSIBILITY
FOR ERRORS OR OMISSIONS.
*
THE USER HAS TO CHECK THE SUITABILITY
OF THE EQUIPMENT FOR THE INTENDED USE. SOUNDLIGHT EXPRESSLY EXCLU-
DES ANY RESPONSIBILITY FOR DAMAGES - DIRECT OR INDIRECT - WHICH MAY
OCCUR DUE TO MISUSE, UNPROPER INSTALLATION, WRONG OPERATING CON-
DITIONS AND NON-COMPLIANCE TO THE INSTRUMENT'S INSTRUCTIONS, AS
WELL AS IGNORANCE OF EXISTING SAFETY REGULATIONS.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3603PWM-H Mk3 RDM and is the answer not in the manual?

Questions and answers

Related Manuals for SOUNDLIGHT 3603PWM-H Mk3 RDM

Summary of Contents for SOUNDLIGHT 3603PWM-H Mk3 RDM

  • Page 1 OPERATING MANUAL DMX / PWM Decoder 3603PWM-H Mk3 RDM 8/16 Bit Version (C) SOUNDLIGHT 1996-2017 * ALL RIGHTS RESERVED * NO PART OF THIS MA- NUAL MAY BE REPRODUCED, DUPLICATED OR USED COMMERCIALLY WITHOUT THE PRIOR WRITTEN CONSENT OF THE OWNER...
  • Page 2 The DMX Company Thank you for choosing a SOUNDLIGHT device. The SOUNDLIGHT DMX PWM Converter 3603PWM-H is an intelligent converter accepting drive signals according to USITT DMX-512/1990, DIN 56930-2, ANSI E1-11 DMX512A and ANSI E1-20 DMX RDM. The DMX signal is converted to a PWM output signal to drive low voltage incandescent lamps, proportional valves or voltage driven LED arrays.
  • Page 3 INFO: Status information...
  • Page 4 UNPACKING Please unpack carefully and check that all items are intact. When leaving our factory, the interface has been in good condition. In case of damage during transport please notify the carrier immediate- When unpacking, you should identify these items: the interface 3603PWM-H this manual Please note that a start address programming adaptor (3000P) is NOT included with DIN rail mount...

  • Page 5: Signal Indicators

    +24VDC white CH 3: Drive Output - +24VDC white CH 3: Drive Output - DMX Data Input grey GND, Screen blue DMX Drive Signal - DMX Drive Signal + DMX Data Output grey GND, Screen blue DMX Drive Signal - DMX Drive Signal + IMPORTANT NOTICE: Outputs are not short circuit protected and must be fused ex- ternally with appropriate fuse 4A fast blow.

  • Page 6: Dip Switches

    The decoder can be operated with or without start address board connected. Please note that me- chanical switches become disengaged and the respective settings are overridden when pro- gramming is done via RDM. To re-engage the switches, set the hundreds position to „9“ temporari- ly and wait for a programming cycle to complete.

  • Page 7: Wiring Instructions

    Common LED terminal is the positive pin of the supply voltage ("Common Anode"). As high cur- rents are present, carefully check the wiring instructions and use sufficiant wire gauges. Outputs are not short circuit protected and must be fused externally. WIRING INSTRUCTIONS Please note: At full load, the total operating current is in excess of the rating of a single output cage clamp con-...

  • Page 8: Technical Data

    TECHNICAL DATA Dimensions: 86mm (W) x 93mm (D) x 66mm (H), width 4TE (units) Power supply: 24V DC DMX IN: 1 Unit Load DMX OUT: fed-thru DMX data slots: 3(4) PWM Out: 24V pulse signal 0%-100% PWM resolution: 12Bit PWM characteristic quasi-logarithmic / linear Max.

  • Page 9: Fcc Statement

    The warranty is limited to repair or exchange of the hardware product; no further liability is assumed. SOUNDLIGHT is not responsible for damages or for loss of data, sales or profit which arise from usage or breakdown of the hardware product. In...
  • Page 10 Electronic devices must not be placed in domestic waste. Consult your lo- cal authorities to find the nearest collection point of used electric and electronic devi- ces. SOUNDLIGHT is a WEEE registered company (Reg No. DE58883929). ACCESSORIES To set the DMX start address and change the operating parameters, a DMX RDM controller or a start address board is needed.
