OPERATING MANUAL
DMX / PWM Decoder 3616PWM-H Mk1.4 RDM
(C) SOUNDLIGHT 1996-2017 * ALL RIGHTS RESERVED * NO PART OF THIS MA-
NUAL MAY BE REPRODUCED, DUPLICATED OR USED COMMERCIALLY WITHOUT
THE PRIOR WRITTEN CONSENT OF THE OWNER
*
ALL STATEMENTS WITHIN
THIS MANUAL HAVE BEEN CHECKED CAREFULLY AND ARE BELIEVED TO BE AC-
CURATE, HOWEVER SOUNDLIGHT DOES NOT ASSUME ANY RESPONSIBILITY
FOR ERRORS OR OMISSIONS.
*
THE USER HAS TO CHECK THE SUITABILITY
OF THE EQUIPMENT FOR THE INTENDED USE. SOUNDLIGHT EXPRESSLY EXCLU-
DES ANY RESPONSIBILITY FOR DAMAGES - DIRECT OR INDIRECT - WHICH MAY
OCCUR DUE TO MISUSE, UNPROPER INSTALLATION, WRONG OPERATING CON-
DITIONS AND NON-COMPLIANCE TO THE INSTRUMENT'S INSTRUCTIONS, AS
WELL AS IGNORANCE OF EXISTING SAFETY REGULATIONS.
SOUNDLIGHT
Bennigser Str. 1 D-30974 Wennigsen Tel. 05045-912 93-11
The DMX Company

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3616PWM-H and is the answer not in the manual?

Questions and answers

Related Manuals for SOUNDLIGHT 3616PWM-H

Summary of Contents for SOUNDLIGHT 3616PWM-H

  • Page 1 17-10-24 OPERATING MANUAL DMX / PWM Decoder 3616PWM-H Mk1.4 RDM (C) SOUNDLIGHT 1996-2017 * ALL RIGHTS RESERVED * NO PART OF THIS MA- NUAL MAY BE REPRODUCED, DUPLICATED OR USED COMMERCIALLY WITHOUT THE PRIOR WRITTEN CONSENT OF THE OWNER...

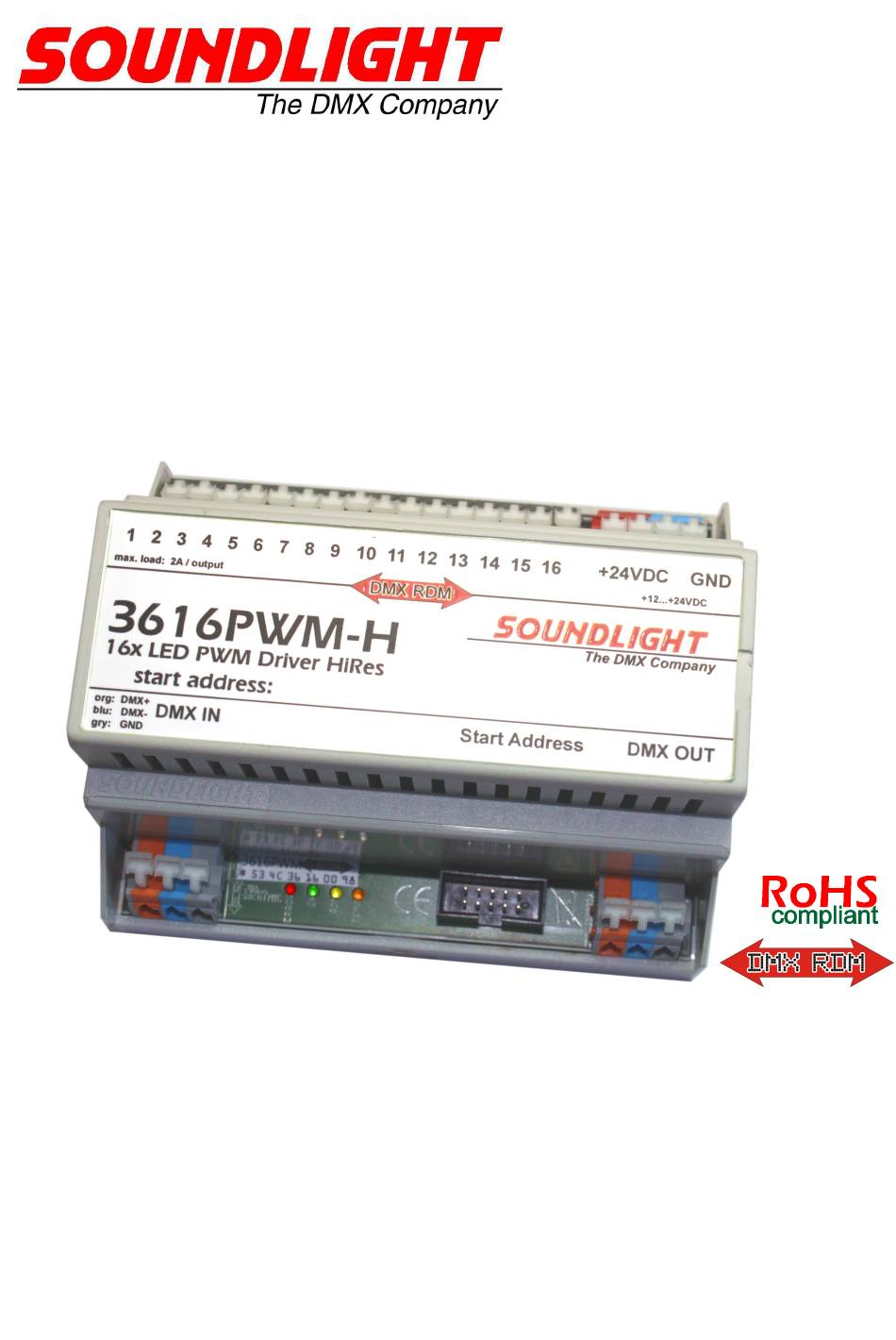

  • Page 2 The SOUNDLIGHT 3616PWM-H is a cost-effective solution for many purposes. APPLICATIONS The converter 3616PWM-H is intended for all control applications to drive voltage controlled loads, e.g. low voltage incandescent lamps, or constant-voltage driven LEDs. Each output can be loaded with 24V / 2 A / 50W@24VDC (absolute maximum rated values). The combined load of all outputs must not exceed 16A.
  • Page 3 DMX interfaces, pcb and DIN rail mount alike. CAGE CLAMPS The decoder 3616PWM-H consists of 6 terminal blocks. Ter- minals are based on screwless WAGO cage clamp technolo- gy, which prevents loose connections and guarantees safe electrical contact at all times.

  • Page 4: Signal Indicators

    See chapter "RDM" for more info. Red and green LEDs blink alternatively four times when programming data within the 3616PWM-H (e.g. start address, HOLD mode or change of DMX personality). No action will be taken when start address setting is locked from RDM.

  • Page 5: Dip Switches

    The decoder can be operated with or without start address board connected. Please note that me- chanical switches become disengaged and the respective settings are overridden when pro- gramming is done via DMX RDM. To re-engage the switches, set the hundreds position to „9“ tem- porarily and wait for a programming cycle to complete.

  • Page 6: Wiring Instructions

    - The electronics can be fed separately (+12...+24VDC) to allow operation even when the LED PSU has been shut down. - If needed, insert external fuses 2A fast blow to prevent short circuit conditions. Typical wiring of 3616PWM-H when used with multiple RGB strips. Up to 5 common anode RGB strips or...

  • Page 7: Technical Data

    3616PWM-H DMX RDM The 3616PWM-H is compatible with ANSI E1-20 DMX RDM Version 1.0. Please note some special properties of devices complying with DMX RDM: - DMX HOLD properties are not supported by RDM standard ANSI E1-20. A factory specific com- mand (DMX HOLD) has been added to compensate these restraints.

  • Page 8: Fcc Statement

    Recognizing the 3616PWM-H using Wireless DMX RDM (Screenshot: CRMX Nova Software) For more information or an in-depth command list, see the RDM Manual available from our website www.rdm.soundlight.de or refer to the product website at: www.soundlight.de/produkte/3616pwm-h DISTURBANCES If a trouble-free operation cannot be guaranteed, disconnect the decoder interface and secure it against unwanted operation.

  • Page 9: Limited Warranty

    - connection to wrong voltage or current; - misuse. SERVICE There are no parts within the DMX decoder 3616PWM-H which require the user's attention. Should your unit require servicing, please send it to the factory, freight paid. END OF LIFETIME When the useful lifetime of this product has been reached, it must be disposed of properly.
  • Page 10 These boards are optionally available: DMX START ADDRESS BOARD 3000P www.soundlight.de/produkte/3000p Three address BCD switches and a DIP switch to set operating parame- ters. This is the standard board, which is compatible wil all our decoders...
