- Page 1 Air conditioner User manual AR**TXFC*** / AR**TXEA*** • Thank you for purchasing this Samsung air conditioner. • Before operating this unit, please read this user manual carefully and retain it for future reference.
-
Page 2: Table Of Contents
Contents Safety Information Safety Information At a Glance Indoor Unit Overview Display Remote Control Overview Replacing the remote control batteries Remote Control Operation Selecting an operation mode • • To set the temperature To adjust the fan speed To adjust the airflow direction Smart Features Power Smart Features Wind-Free Cooling function... - Page 3 Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. For information on Samsung’s environmental commitments and product-specific regulatory obligations, e.g. REACH, WEEE, Batteries, visit : samsung.com/uk/aboutsamsung/samsungelectronics/ corporatecitizenship/data_corner.html...
-
Page 4: Safety Information
Because the instructions in this manual cover various models, the characteristics of your air conditioner may differ slightly from those described. If you have any questions, please contact your service provider or visit www.samsung.com. Notices and notes To make you aware of safety messages and highlighted information,... - Page 5 WARNING: Low burning velocity material (This appliance is filled with R-32.) The user and installer guides should be read carefully. The user and installer guides should be read carefully. The service guide should be read carefully. FOR GENERAL This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance...
- Page 6 Safety Information FOR INSTALLATION WARNING Use a power cord with this product's power specifications or higher and use the power cord for this appliance only. In addition, do not use an extension cord. • Extending the power cord may result in electric shock or fire. •...
- Page 7 Never install the outdoor unit in a location such as on a high external wall where it could fall. • If the outdoor unit falls, it may result in injury, death or property damage. This appliance must be properly grounded. Do not ground the appliance to a gas pipe, plastic, water pipe, or telephone line.
- Page 8 Safety Information Do not install the product in a place where thermo-hygrostat is needed (such as server room, machinery room, computer room, etc.) • Those places do not provide guaranteed operation condition of the product therefore performance can be poor in these places.
- Page 9 FOR USING WARNING If the appliance is flooded, please contact your nearest service centre. • Failing to do so may result in electric shock or fire. If the appliance generates a strange noise, a burning smell or smoke, cut off the power supply immediately and contact the nearest service centre.
- Page 10 Safety Information Do not touch the circuit breaker with wet hands. • This may result in electric shock. Do not turn the air conditioner off with the circuit breaker while it is operating. • Turning the air conditioner off and then on again with the circuit breaker may cause a spark and result in electric shock or fire.
- Page 11 Do not use means to accelerate the defrost operation or to clean, other than those recommended by Samsung. Do not pierce or burn. Be aware that refrigerants may not contain an odour. If any foreign substance such as water has entered the appliance, cut off the power supply and contact the nearest service centre.
- Page 12 Safety Information When the air conditioner does not operate properly for cooling or heating, there is a possibility of refrigerant leakage. If any leakage, stop operation, ventilate the room, and consult your dealer immediately for recharging refrigerant. The refrigerant is not harmful. However, if it comes in contact with fire, it may generate harmful gases and there is risk of fire.
- Page 13 Do not drink the water from the air conditioner. • The water may be harmful to humans. Do not hit, shake, drop, or attempt to disassemble the remote control. When replacing the remote control batteries, keep them out of the reach of infants. •...
- Page 14 Safety Information FOR CLEANING WARNING Do not clean the appliance by spraying water directly onto it. Do not use benzene, thinner or alcohol to clean the appliance. • This may result in discolouration, deformation, damage, electric shock or fire. Before cleaning or performing maintenance, cut off the power supply and wait until the fan stops.
-
Page 15: At A Glance

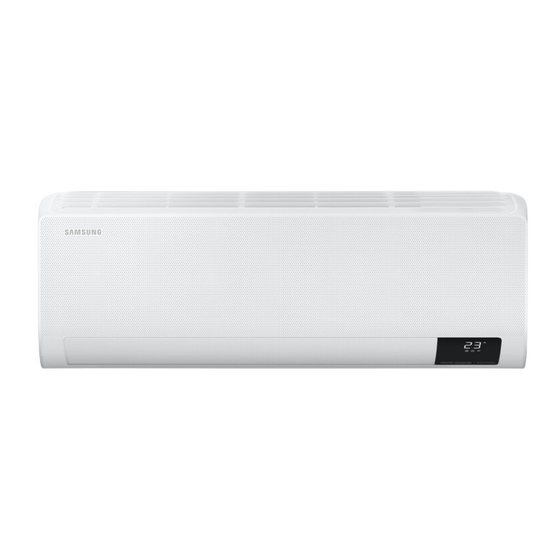

Indoor Unit Overview The appearance of the actual product may differ slightly from the image below. 01 Air intake 06 Airflow blade (left and right) 02 Air filter 07 Power button/Remote control receiver 03 Tri-care filter (For AR**TXEA*** models) 08 Room temperature sensor 04 Wind-Free panel 09 Display 05 Airflow blade (up and down) -
Page 16: Display
Indoor Unit Overview Display 01 Temperature indicator (numeric) Filter reset indicator ( Electricity consumption indicator (numeric / For the multi system, usage time indicator) Auto clean indicator ( Defrost indicator ( 02 AI Auto indicator 03 Timer indicator 03 04 good'sleep indicator 04 Wi-Fi indicator NOTE... -
Page 17: Remote Control Overview
Remote Control Overview Most operating instructions in this manual require using the remote control. 01 Set temperature indicator 02 Timer option indicator 03 Operation mode indicator 04 Options indicator 05 Low battery indicator 06 Transmit indicator 07 Fan speed indicator 08 Wind-Free indicator 09 Vertical air swing indicator 10 Horizontal air swing indicator... -
Page 18: Remote Control Operation
Remote Control Operation Remote Control Operation You can use the air conditioner easily by selecting a mode and then by controlling the temperature, fan speed, and air direction. Selecting an operation mode To change the current mode between Auto, Cool, Dry, Fan, and Heat, press the (Mode) button. -
Page 19: To Set The Temperature • To Adjust The Fan Speed • To Adjust The Airflow Direction
To set the temperature To control the temperature in each mode, press the (Temperature) button: Mode Temperature control AI Auto/Auto/ Adjust by 1 ℃ from 16 ℃ to 30 ℃. Cool/Heat Adjust by 1 ℃ from 18 ℃ to 30 ℃. No temperature control. -
Page 20: Smart Features
Power Smart Features Wind-Free Cooling function Use the Wind-Free Cooling function to enjoy a mild breeze coming through fine holes in the Wind-Free panel instead of air coming directly through the airflow blades. In Cool/Dry/Fan mode ▶ NOTE • To cancel this function, press the (Wind-Free) button again. -
Page 21: Ai Auto Mode
AI Auto mode Use AI Auto mode to automatically operate any of Cool, Dry, Heat, and Wind-Free Cooling modes depending on the learned user patterns gathered from an external server via Wi-Fi module. The favourite temperature and operation mode are also set based on the current temperatures (indoor/outdoor) and the gathered user patterns. -
Page 22: Auto Mode • Cool Mode
Power Smart Features Auto mode Use Auto mode to perform the powerful cooling or heating function to automatically reach the desired temperature. When the difference between the room temperature and the set temperature decreases, the air conditioner controls the fan speed and airflow direction. ▶... -
Page 23: Dry Mode • Fan Mode
Dry mode Use Dry mode in rainy or humid weather. ▶ ▶ Select Dry. NOTE • The proper set temperature range for dehumidifying operation is 24 to 26 ℃. If you feel that the current humidity seems high, use a lower set temperature. •... -
Page 24: Heat Mode • Automatic Defrost
Power Smart Features Heat mode Use Heat mode to stay warm. ▶ ▶ Select Heat. NOTE • While the air conditioner warms up, the fan may not operate for about 3 to 5 minutes at the beginning to prevent cold blasts. •... -
Page 25: Variety Smart Features
Variety Smart Features Fast function Use the Fast function to quickly cool or heat your room. This function is the most powerful cooling and heating function provided by the air conditioner. You can select this function in Cool or Heat mode. In Cool or Heat mode ▶... -
Page 26: Quiet Function • Beep Function
Variety Smart Features Quiet function Use the Quiet function to reduce the unit’s operating noise. You can select this function in Cool or Heat mode. In Cool or Heat mode ▶ ▶ ▶ Select Quiet. ▶ NOTE • You can change the set temperature and the airflow direction, but you cannot change the fan speed. -
Page 27: Display Lighting Function • Wi-Fi Function (Smartthings App)
Display lighting function Use the Display lighting function to turn on or off the lighting of the indoor unit display. ▶ ▶ Select Display. ▶ NOTE • If you change the current mode or function when the Display lighting function is on, the display lighting turns on for 5 seconds and then turns off again. -
Page 28: Energy-Saving Features
Energy-Saving Features Electricity consumption check For the multi system, this function is not supported. Use the Usage function to check the amount of electricity consumed by using the air conditioner. The amount consumed is displayed on the indoor unit display for a few seconds, and the set temperature appears. -
Page 29: Usage Time Check
Usage time check For the single system, this function is not supported. Use the Usage time function to check the operation duration from the moment when the air conditioner is turned on to the moment when the Usage time function is selected. The usage time is displayed on the indoor unit display for a few seconds, and the set indoor temperature appears. -
Page 30: Eco Function
Energy-Saving Features Eco function For the multi system, this function is not supported. Use the Eco function to reduce electricity consumption while staying cool or warm. You can select this function in Cool or Heat mode. In Cool or Heat mode ▶ ▶... -
Page 31: Timed On/ Timed Off Function
Timed on/ Timed off function Use the Timed on/off function to turn the air conditioner on or off after a duration. Scheduling durations before the air conditioner turns on or off helps use the air conditioner economically. ▶ Select On or Off ▶ (Set the duration.) ▶... -
Page 32: Good'sleep Function
Energy-Saving Features good'sleep function Use the good'sleep function to save energy while you are sleeping. You can select this function in Cool or Heat mode. In Cool or Heat mode ▶ ▶ (Select (Set the duration.) ▶ NOTE • To cancel the good'sleep function, set the duration to 0.0. •... -
Page 33: Cleaning And Maintenance
Schedule Task How often By whom Instruction Run the Auto clean "Auto clean function" on As needed Owner function. page 34. "Cleaning the filter" on page Clean the filter. Once every two weeks Owner Replace the Tri-care "Replacing the Tri-care filter" Once every 3 years Owner filter. -
Page 34: Cleaning
Cleaning Cleaning Auto clean function Use the Auto clean function if the indoor unit produces odors. Activating Auto clean To activate Auto clean, press the (Options) button for at least 3 seconds. The indoor unit display shows: If the air conditioner is off, Auto clean starts immediately. If the air conditioner is running, Auto clean starts as soon as the air conditioner turns off. - Page 35 Canceling Auto clean To cancel Auto clean while it is running, follow the procedure below: ▶ Press and hold for 3 or more seconds. ▶ ▶ Select Clean. ▶ NOTE • Canceling Auto clean does not deactivate it. Deactivating Auto clean To deactivate Auto clean, follow the procedure below while the air conditioner is in operation or turned off: ▶...
- Page 36 Cleaning Cleaning the outside of the indoor unit 1 Turn off the air conditioner and wait until the fan stops. 2 Disconnect the power supply. 3 Use a soft brush or tepid damp cloth to clean the exterior. Soft brush WARNING Tepid damp cloth •...
- Page 37 Cleaning the filter Clean the air filter every two weeks or when the (filter-cleaning reminder) appears on the indoor unit display. The time between cleanings may vary, depending on the usage and environmental conditions. Vacuum cleaner Soft brush 30 minutes Mild detergent 1 Slide the filter off of the unit.
- Page 38 Cleaning Replacing the Tri-care filter (For AR**TXEA*** models) Slide a new Tri-care filter in the direction of arrow 2. Replace Tri-care filters once every three years. Replacement cycle may differ depending on the environment and usage time. Tri-care filter CAUTION •...
- Page 39 Cleaning the Wind-Free panel Clean the Wind-Free panel at least once a month. 1 Pull the airflow blade open. 2 Hold and pull both sides of the Wind-Free panel until it comes free from the air conditioner. 3 Use a soft brush or vacuum cleaner to remove any dust. 4 Hang the Wind-Free panel in the grooves at the bottom left and right.
-
Page 40: Appendix
Troubleshooting Troubleshooting If the air conditioner is not operating normally, refer to the troubleshooting guide below. Problem Solution • Make sure the unit is receiving power. • Check the circuit breaker. If it is flipped off, flip it on again and The air conditioner stops restart the unit. - Page 41 Problem Solution • Replace the batteries in the remote control. • Make sure the remote control can send an unobstructed signal to The remote control does not the unit. work. • Keep bright lights away from the unit. Light from fluorescent bulbs or neon signs may interrupt the signal from the remote control.
-
Page 42: Information About Refrigerant
Information about Refrigerant Information about Refrigerant Important information: regulation regarding the refrigerant used. This product contains fluorinated greenhouse gases. Do not vent gases into the atmosphere. CAUTION If the system contains 5 tCO₂e or more of fluorinated greenhouse gases, it must be checked for leakage at least once every 12 months, according to regulation No. -
Page 43: Smartthings App
3 Tap the Wi-Fi switch to activate it, and then 3 Tap Log In. select the 2.4 GHz Wi-Fi access point to connect 4 If you have no Samsung account, tap Add account to create your Samsung account. 4 If needed, enter the password for the access point. - Page 44 4 seconds. 2412 - 2472 MHz 20 dBm To notify that registration of the selected air conditioner to your Samsung account is in progress, Open Source Announcement (Transmit) indicator blinks for several seconds and appears on the remote control The software included in this product contains display.
- Page 45 Category Function Description Set temperature Displays the set temperature. Monitoring Current temperature Displays the current temperature. Power Turns the air conditioner on or off. Mode Selects the desired operation. Temperature Adjusts the indoor set temperature. Fan Speed Sets the fan speed of operation mode. Wind direction Sets the fan directions of operation mode.
-
Page 46: Reference
