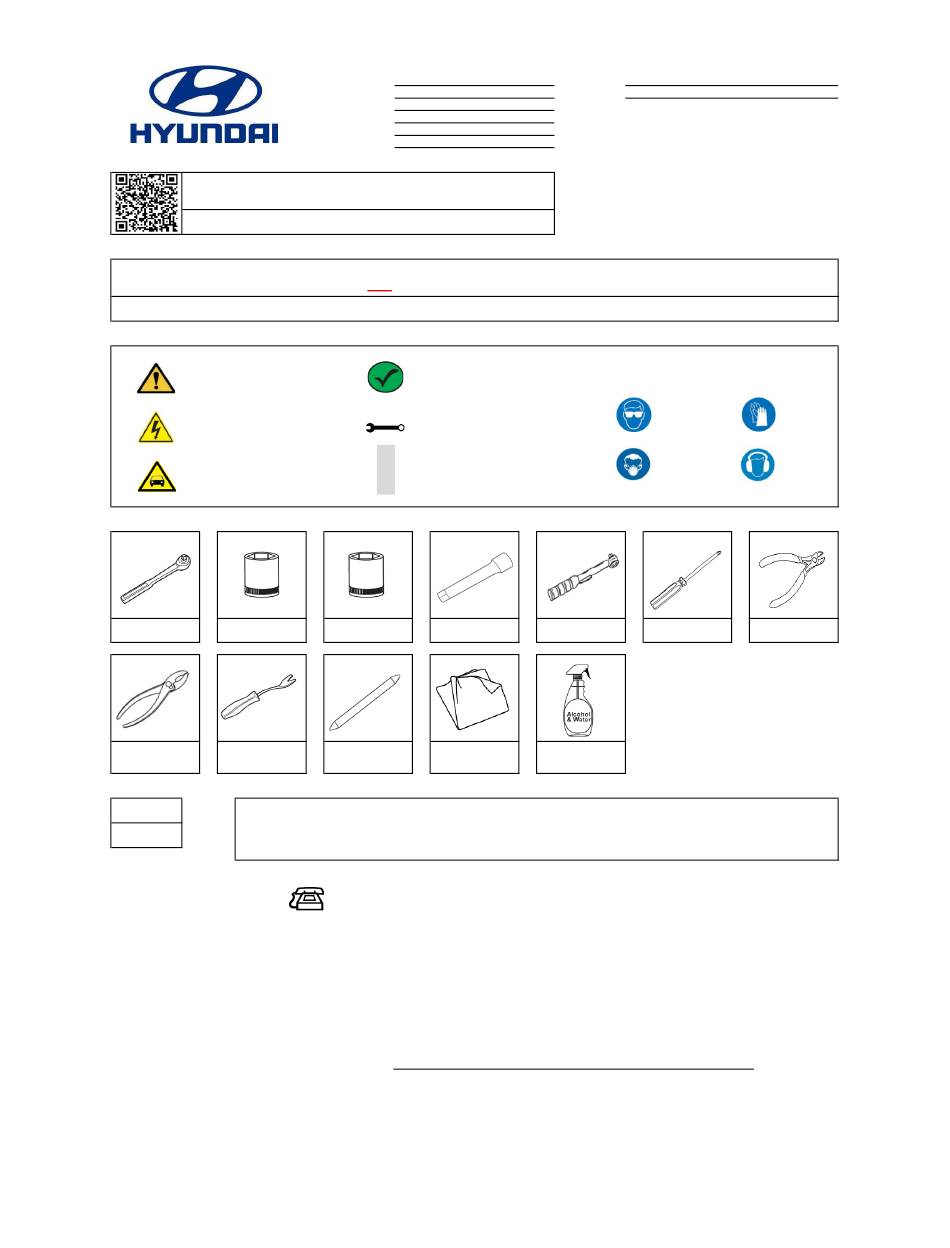

Electronic Installation Instructions
If this is a printed copy of the installation instructions, ensure you have the latest revision by
scanning the QR code or by entering the website address listed below before beginning
installation. Use the latest revision date as noted by "Rev. Date" above.
www.hyundaiaccessories.com/admin_media_uploads/installationSheets/k2f57_ac001.pdf
Application Notes
Ensure vehicle does NOT have SMART KEY (PUSH BUTTON IGNITION SYSTEM).
Vehicle should be equipped with automatic transmission, power door locks, and power windows. If these features are not equipped on the vehicle, do not proceed with install.
Instructional Symbols / Definitions
Denotes warnings that may lead to
serious physical injury or vehicle damage
Denotes cautions to be taken to avoid
physical injury or electronic component
damage
Denotes cautions to be taken to avoid
vehicle and component damage
Basic Required Tools
Ratchet
10mm Socket
Pliers
Clip Removal Tool
Part Weight (Gross)
FMVSS 110 Compliance Information
All dealers must determine if the Net weight they have added in the form of all options or accessories, when added to the weight of all Port/Dealer Installed
1.32
lbs
options or accessories, exceeds the lesser of 1.5% of GVWR or 100 lbs. If the additional weight does exceed the lesser of the indicated thresholds, a "Load
Carrying Capacity Reduced" label must be installed. A black, fine-point, indelible marker must be used to write by hand onto the label, the reduced carrying
0.60
kg
capacity in kilograms or pounds, which is the total weight of all added options and accessories.
Load Label Part Number: NP070 - 09003
Technical Support
Notes to the installer:
1) Read the entire Installation Instructions prior to beginning the installation of the part.
2)
If applicable, scan the barcode label located on the accessory part or packaging prior to installing, to register the part. If this accessory is installed as
a replacement, register the removal of the old part before registering the new part. Old and new parts will have different barcode data, and the old
registration cannot be reused.
3) Make sure the vehicle is completely clean and dry in the area(s) the part is to be installed.
4) Ensure the vehicle is properly protected in the area(s) that the accessory is to be installed.
5) NEVER place tools on painted surfaces, seating surfaces, dash pad, console or floor carpet/mats.
6) Always wear appropriate personal protective equipment, including gloves, safety glasses, etc., when required.
7) Record radio presets prior to disconnecting battery power, if needed.
8) Roll down the driver's window and adjust the power seats (if applicable) prior to disconnecting battery power, if needed.
9) To prevent stress on the remote start wire harness, ensure the tilt steering column is fully extended before installing the kit.
Ensure Transportation Switch is switched to 'ON' on the fuse box.
10)
Vehicle should be at room temperature.
11)
The order of the disassembly and reassembly steps have been optimized for maximum efficiency and the correct installation of the Remote Engine Start
12)
kit. Disassemble vehicle components (including harness connectors) and install the kit components according to each step, as indicated. Avoid
disassembling or reassembling any components in advance to prevent unnecessary labor time and/or installation errors.
Genuine Accessories
Vehicle Model:
Venue
Model Year
2020~2021
Part No.
K2F57 AC001
Language English
Rev. Date
5/11/2023
Vehicle must be equipped with mechanical key start.
Denotes quality processes to be checked
prior to moving to the next step
Denotes specific tools that are necessary
to complete a step
N
O
Denotes important information to be
T
reviewed during the step
E
12mm Socket
Extension
Trim Removal Tool
Clean Cloth
Authorized dealers use:
(1) 855-225-7344
Hours:
M~F - 9am~5pm Pacific Standard Time
Revision Date
05/11/2023
Accessory:
Remote Engine Start - Key Start
Difficulty:
( B )
Note:
Difficulty stated above reflects the minimum level of
expertise required to install the accessory:
(A) Customer
(B) Dealer Technician
(C) Master Technician or Specialist
Denotes personal protective equipment (PPEs) that
may be required for a step. Examples of safety
equipment icons noted below:
Glasses
Mask
#2 Phillips
Torque Wrench
Screwdriver
50/50 Isopropyl
Alcohol (70%) and
Water Mix
Gloves
Hearing Protection
Wire Cutters
