Voxson Voxtrack GPS800 User Manual

High powered gps navigation unit
Hide thumbs Also See for Voxtrack GPS800:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
V
O
X
T
R
A
C
K
8
0
0
V
O
X
T
R
A
C
K
8
0
0

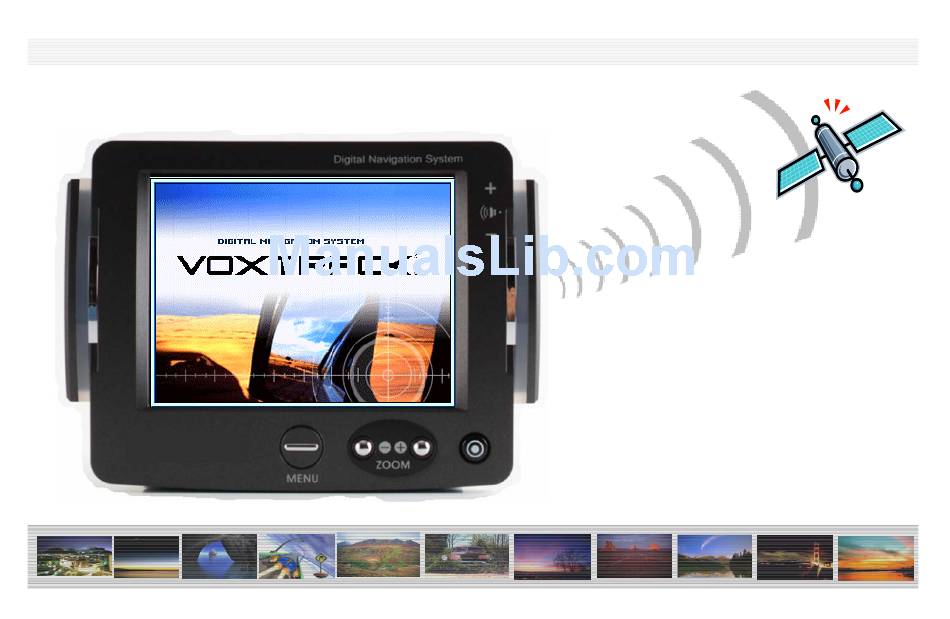

High Powered GPS Navigation Unit
H
a
r
d
w
a
r
e
U
s
e
r
M
a
n
u
a
l
H
a
r
d
w
a
r
e
U
s
e
r
M
a
n
u
a
l

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Voxtrack GPS800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Voxson Voxtrack GPS800

Summary of Contents for Voxson Voxtrack GPS800

  • Page 1 High Powered GPS Navigation Unit...
  • Page 2 300 Mhz CPU providing peak performance TFT LCD with anti-reflective glass with landscape display Multimedia function supporting, navigation, music (MP3), video (MPEG4) and picture (JPEG) Sirf III GPS providing exceptionally quick cold/warm/hot start Enhanced navigation features including turn-indicating lamps Simple touch screen interface...

  • Page 3: About This Book

    The absence of explicit labeling of registered trademarks does not admit the conclusion that the brand is not subject to the rights of third parties. © Copyright 2006, Voxson Ltd. All rights reserved.
  • Page 4 (0°C ~ 50°C), and do not expose it to excess heat or cold. ⓓ GPS satellite signals cannot pass through solid materials other than glass. When inside a tunnel or a building GPS positioning may not be available. Likewise, signal reception can be affected by situations such as bad weather or dense overhead cover such as trees.
  • Page 5 Page 03 2. For Proper/Best Use 2.1 General instructions given by the device, or if you are not sure about what to do next, you may refer briefly to the map or visual indicators on your navigation system. ⓕ A mounting bracket is included and necessary when using the device in a vehicle. When mounting the device in a vehicle ensure that you place the device in an appropriate position, avoiding areas which obstruct airbag panels, instrumentation, or which interfere with the driver’s vision.
  • Page 6 Since there is a high risk of explosion if the battery is replaced by an incorrect type, it should only be serviced by a qualified Voxson technician. The battery must be recycled or disposed of properly.

  • Page 7: Getting Started

    Your device has an SD card slot in the centre of the top of the GPS unit and the Voxtrack 800 package includes an SD card preloaded with maps for navigation function. Optional SD cards containing MP3 files, movie files, and image files may be swapped into the Voxtrack 800 to make use of other features as described in Section 6.
  • Page 8 3. Getting Started 3.3. Power Manipulation WARNING: the battery is still running and discharging in all modes, except Power Off mode. * Please allow the Voxtrack 800 Navigation System to have enough time for its operation (e.g. in pressing buttons, tapping touch screen, etc.). Excessive button pressing or screen tapping when waiting for device to respond may lead to mechanical failure.

  • Page 9: Getting It Started

    3.4. GPS Satellite Reception The Voxtrack 800 Navigation System relies on receiving signals sent from GPS satellites orbiting the earth. In order to obtain an accurate fix on your location, the antenna on the Voxtrack 800 must have a clear view of the sky and be continually receiving data from at least 4 of these satellites.

  • Page 10: Hardware Features

    ① Turn-Indicating Lamp ② Map Zoom-In/Out Button ③ Power On/Off Button ④ Main Menu Button ⑤ Touch Screen 4.2 Rear View ① Built-In Battery ② Speaker ③ External GPS Antenna Connector ④ Vehicle Mount Connector ⑤ Secure Digital Card Slot...
  • Page 11 4. Hardware Features 4.3 Left Side ① USB Connector ② Reset Button ③ Sync Button 4.4 Right Side ① Folding GPS antenna ② Volume Control ③ Power-Supply Jack ④ Audio-Out Jack ⑤ Stylus-Pen Pocket Slide the stylus out from the holder to use the touch-screen.

  • Page 12: Hardware Accessories

    ⑤ Cigar-Lighter Adapter ② User Manuals ⑥ Carrying Case ③ Suction-Cup Mount ⑦ USB Cable ④ Stylus-Pen ⑧ SD Memory Card Containing Australian Map Data ⑤ ⑧ 5.2 Options ① ④ ② ① External GPS antenna ② AC Charger Adapter...
  • Page 13 Each button represents a software feature (e.g. NAVI, MUSIC, MOVIE or PICTURE) or a setting-related function (e.g. GPS, BRIGHTNESS, TIMESET, CALIBRATE or ABOUT); to access any of them, just tap the relevant screen icon. To exit from any of the features and return to the Main Menu...
  • Page 14 6. A Look at the Main Menu Screen 6.2 Navigation This function launches the navigation program (Destinator) that guides you to your final destination by voice and visual prompts and a mapping screen. Once a destination is entered it will notify you know when to make a turn, by means of voice prompting and a flashing light on the left/right side.
  • Page 15 Page 13 6. A Look at the Main Menu Screen 6.3 Music The Voxtrack 800 Navigation System has a pre-installed MP3 player so you can listen to your favorite music while driving, you just need to save your favorite songs to any SD or MMC card. Avoid using the SD card included with the device to prevent accidental erasure of the map data.
  • Page 16 Page 14 6. A Look at the Main Menu Screen 6.4 Movie The Voxtrack 800 Navigator includes a movie player that supports most common movie formats. To add movies, save movie files to any SD or MMC card. Avoid using the SD card included with the device to prevent accidental erasure of the map data.
  • Page 17 Page 15 6. A Look at the Main Menu Screen 6.5 Picture The Voxtrack 800 Navigator also includes a picture viewer for viewing photos or image files. To add pictures, save image files to any SD or MMC card. Avoid using the SD card included with the Voxtrack 800 to prevent accidental erasure of the map data.
  • Page 18 6.6 GPS The GPS button on the Main Menu screen will start an application to view the raw data received by the GPS. This can be used to determine status and strength of received satellite signals as well as detailed data regarding the location fix determined by the GPS.
  • Page 19 Page 17 6. A Look at the Main Menu Screen 6.7 Brightness Initially your device has the backlight set to a default setting. However, depending on the ambient light surrounding the device or personal needs, you can select the most suitable background lighting for you, by adjusting the brightness of the screen.
  • Page 20 6. A Look at the Main Menu Screen Page 18 6.8 Time Setting To adjust the system clock tap TIME SET button from the Main Menu screen. Use the arrows above and below each digit to set the current time. Tap on the AM/PM symbol to toggle between the two.
  • Page 21 6. A Look at the Main Menu Screen Page 19 6.9 Calibration If the touch screen of your device doesn’t seem to work correctly – i.e not responding accurately to your stylus taps - you can adjust it with the calibration function. Tap CALIBRATE button from the Main Menu screen to enter calibration mode.
  • Page 22 6. A Look at the Main Menu Screen Page 20 6.10 About The ABOUT button on the Main Menu screen provides a brief explanation for each function on the Main Menu screen. Use the up and down arrows to scroll between the different functions. Pressing the Menu button will exit back to the Main Menu screen.
  • Page 23 7. Transferring Multimedia Files 7.1 Using USB Cable ① You need the Microsoft ActiveSync Program (included on the CD) to be installed in your PC in order to transfer desired music/movie files to an SD/MMC card inserted in the VOXTRACK 800 Navigation system.
  • Page 24 7. Transferring Multimedia Files Page 22 7.2 Using an SD Card Reader ① Insert an SD storage card (there are brands specified/ supported by VOXTRACK 800 Navigation) into your device and turn on your computer and the device. Once the SD reader and your PC are connected by the USB cable, move the desired files to the SD card through “My Computer”.
