Summary of Contents for Voxson GPS400

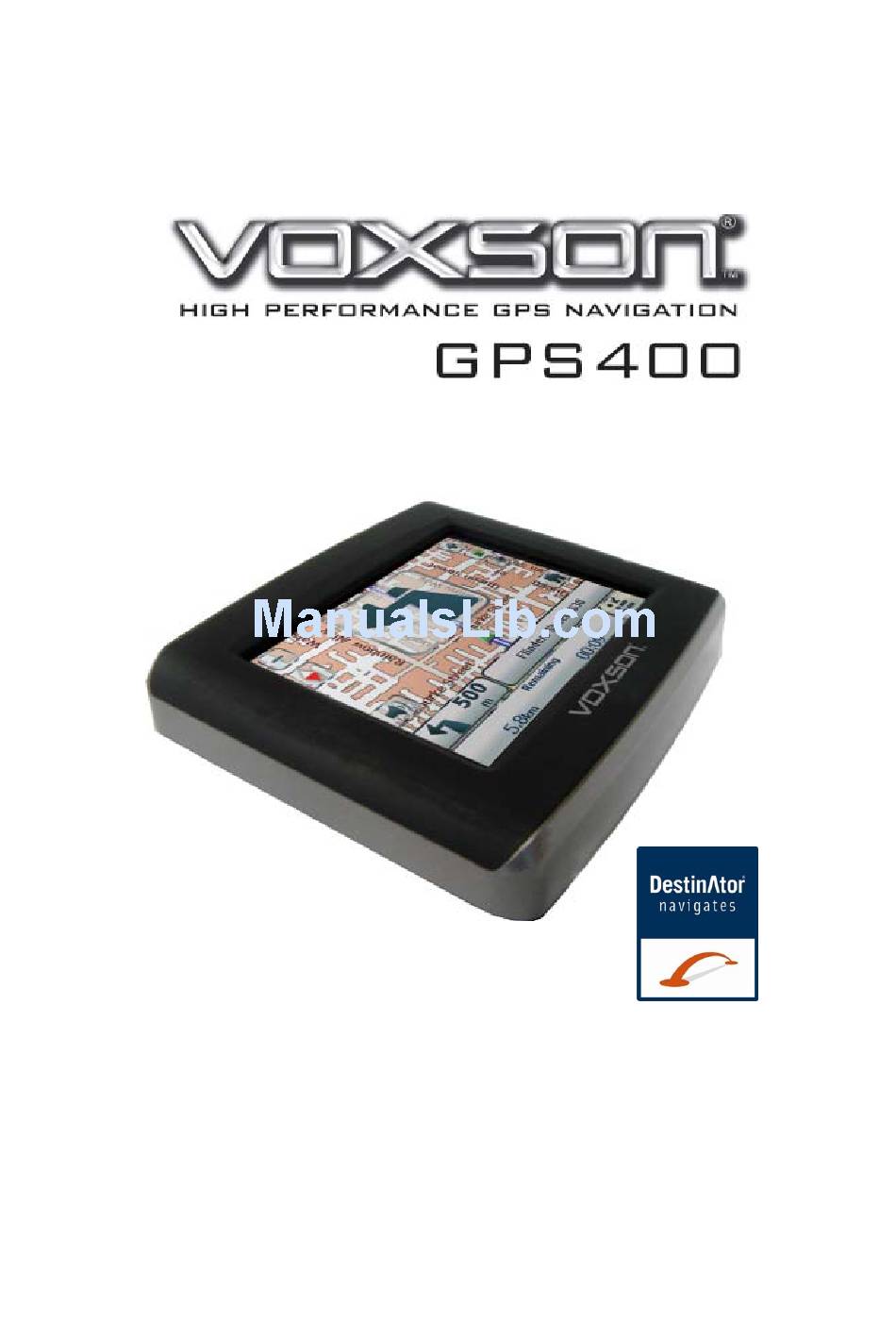

- Page 1 GPS400 User Manual...
- Page 2 Voxson and/or Destinator Technologies cannot take responsibility for the result caused by differences between the user manual and actual product.
-
Page 3: Table Of Contents
If I’m having trouble using my fingers on the touch screen, what else can I use? ...37 What is the difference between “Quick” and “Short” route options?...37 Where is the best place to mount my GPS400 in the car? ...38 Where can I get accessories from? ...38... -
Page 4: Device Controls
USB / Charger Connector SD / MMC Card Slot Earphone Jack Battery Switch GPS400 User Manual Description Remove to use on touch screen. Internal speaker to play voice guidance from navigation software. Volume may be adjusted using volume key (6). -
Page 5: Getting Started
Installing the GPS400 in your car Please note that the GPS400 must be mounted in the vehicle such that is does not interfere with the driver’s view or operation of the vehicle’s controls. The device must also not be mounted in the deployment area of the vehicle’s airbags (if fitted). - Page 6 5. Connect the supplied car charger cable to the USB / Charger connector on right side of the GPS400 and plug the other end of the cable into the cigarette lighter socket in the car. Use the power button on the top of the GPS400 to turn the device on.
-
Page 7: Charging The Gps400
Turning the GPS400 on and off Use the power button on the top of the unit to turn your GPS400 on and off. Press and hold the button for 2 seconds and the device will turn on. Pressing and holding the power button for 2 seconds whilst the unit is on, will turn the GPS400 into ‘sleep’... -
Page 8: Tutorial
Tap this bar for a complete list of turn-by-turn directions. The GPS bar is a toggle button that displays the remaining travel distance and travel time, estimated time of arrival, street name and address number, speed and altitude. -
Page 9: Map Views
The red GPS receiver means that a reliable GPS signal is not yet located. The green GPS receiver means that a reliable GPS signal is located and that you are ready to navigate. These icons display your power source. The battery appears as green, yellow or red depending on the strength of the battery charge. -
Page 10: Route Overview
Manager screen. Cancel Route • From the Route menu, tap the Cancel Route button. The current navigation stops and Destinator clears the route. You can only cancel a route after a destination has been set. GPS400 User Manual Getting Started... -
Page 11: Select Location And Generate Route
Instead of specifying a street, you have the option of selecting the Town/City Centre. If you don't know the address number, you can select the Street Midpoint. Tap the Next button to move through the sequence of address screens. GPS400 User Manual Select Location and Generate Route... -
Page 12: Go To Another Country
This button provides a list of command options available for the selected address or place. The Save, OK or Done buttons confirm your selections and return you to the menu or map. GPS400 User Manual Select Location and Generate Route... -
Page 13: Navigate To An Address
Lets you hide or display the keyboard. Navigate to an Address Figure 6 - Show on Map GPS400 User Manual Select Location and Generate Route You can select from the following route types: Quick - This option selects the route that takes the least amount of time. -
Page 14: Points Of Interest (Poi)
For example, if I enter “Avis” and tap the Search button. Destinator displays all Avis entries in my selected location, as shown in the figure below. Figure 7 - Search by POI Name GPS400 User Manual Select Location and Generate Route on page 17. -
Page 15: Show Or Hide Symbol On Map
Favourite Locations • Show on map - Tap to see the selected address on the map. • Information - Tap to display additional address information and phone number (where available). GPS400 User Manual Select Location and Generate Route on page 17. -
Page 16: Quicknav
Set an Address as the point of origin - Tap the Set as Origin button to designate the selected address as the route origin. • Information - Tap to display additional address information and phone number. GPS400 User Manual Select Location and Generate Route icon on the Main... -
Page 17: Favourite Locations
You can add or clear the tick next to a Favourites entry to show or hide the Favourites symbol on the Main Map screen. GPS400 User Manual Figure 13 - Adding a Destination to Your Favourites Select Location and Generate Route... - Page 18 • Alerts can be set for a group but not for individual locations. Of course, you can always create a group that has just one location. GPS400 User Manual Select Location and Generate Route Save a Favourite Location Alert to Off or...
- Page 19 Save - Tap to add an address to your list of favourite locations. For more information about favourites, see Favourite Locations • Information - Tap to display additional address information. GPS400 User Manual Select Location and Generate Route on page 17.
-
Page 20: Additional Destinator Features
Avoid Tap to avoid the selected turn in the Turn-by-Turn list. Destinator recalculates the route automatically. Note that when you exclude a turn, the recalculated route may take longer. GPS400 User Manual Additional Destinator Features... -
Page 21: Multiple Stops
Tap the Optimise Route button. The list of stops is automatically rearranged to provide the most efficient travel route. GPS400 User Manual Additional Destinator Features... -
Page 22: Avoid Roads
From the Route menu, tap the Avoid Roads button. The Avoid Roads screen appears, displaying predefined road groups. Figure 25 - Predefined Road Groups GPS400 User Manual Destinator provides the following predefined road groups: • Ferries - The default value is to avoid •... -
Page 23: Adding A Road To Avoid
Tap Actions and then the Add Road button. Select the town/city and street. The road is displayed on the Show on Map screen. Tap the Avoid button. Figure 28 - Adding a Road to Avoid GPS400 User Manual Additional Destinator Features... -
Page 24: Detour
2 miles. Map Browsing You can browse the map without a GPS signal. From the Options menu, tap the Free Map Browsing button to disconnect from the GPS receiver. Figure 30 - Explore the Map... - Page 25 A pop-up menu appears. Tap Go There to navigate to the selected point. You can reconnect to GPS, by going to the Options menu and tapping the GPS Navigation button. GPS400 User Manual...
-
Page 26: Pedestrian Mode
Multistop Planner features are disabled. Map Selection From the Options menu, tap the Select Map button to change the selected map to another map saved on your SD memory card. Figure 32 - Select a Map GPS400 User Manual Additional Destinator Features... - Page 27 End-User Licence Agreement (EULA) screen appears. Read it and then select the Agree checkbox to continue working with Destinator. Figure 33 - Map's End-User Licence Agreement If you want to store additional maps on your memory card, please contact Voxson; support@voxson.com.au You can also choose from the following Select Map commands: •...
-
Page 28: Destinator Configurations
Warns that the GPS signal is too low and unreliable for navigation. This prompt is automatically active by default. GPS not found Alerts you if the GPS signal is lost or if the power source has been removed from the GPS receiver. Road Prompts Both Destinator tells you the street number and name. -
Page 29: Language Settings
Your vehicle's location and position are constantly updated unless you are working in the Free Browse Map mode or you tap the GPS Off button. The GPS receiver may take a few minutes to find its initial location. For best results, ensure that the GPS receiver has a clear view of the sky. -
Page 30: Units Of Measure
When you first start Destinator you may hear the "Signal too low" message. This message means that your navigation device hasn't yet located a reliable GPS signal. Check that your device is connected to a power source, such as the cigarette lighter and has a clear view of the sky. -
Page 31: Map Settings
Display Volume Displays the Volume Control bar. Control Display GPS Status Displays whether a reliable GPS signal has been located. Display Power Displays if your device is plugged in or running on battery power. Indicator Display Information Displays estimated time of arrival. -
Page 32: Start Demo
Adjust the Playback Speed - Use the arrow keys to adjust the playback speed. You can speed up playback to 300%, which is the actual speed. About From the Settings menu, tap this button to display version and copyright information. GPS400 User Manual Destinator Configurations... -
Page 33: Help
Destinator Configurations Help From the Settings menu, tap this button to display technical support information. GPS400 User Manual... -
Page 34: Troubleshooting
Please note that when you first turn your GPS400 unit on in an open area, it may take up to 15 minutes to receive adequate signal. This time may be greatly increased if you are moving during the initial signal acquisition. -
Page 35: My Gps400 Keeps Saying "Signal Too Low
Please note that when you first turn your GPS400 unit on in an open area, it may take up to 15 minutes to receive adequate signal. This time may be greatly increased if you are moving during the initial signal acquisition. -
Page 36: Frequently Asked Questions (Faq)
Frequently Asked Questions (FAQ) The following list provides answers to some commonly asked questions about the GPS400 and GPS navigation in general. If you can’t find the answers you’re looking for, please feel free to contact customer support on 1300 889 990 or support@voxson.com.au. -
Page 37: How Do I Update My Maps Or Load Overseas Maps
(usually on CD or preloaded SD card) which will include instructions on how to install and use them on your GPS400 device. For most maps it is simply a case of swapping the SD card in the device. -
Page 38: Where Is The Best Place To Mount My Gps400 In The Car
Where is the best place to mount my GPS400 in the car? The GPS400 requires a clear view of the sky in order to accurately receive the GPS signals. The ideal position for mounting the GPS400 is in the centre at the bottom of the front windscreen. As every vehicle... -
Page 39: Index
Favourite Locations • 17 Go to an Address • 11 Go to Another Country • 12 Going to a Favourite Destination • 17 GPS Settings • 29 GPS Troubleshooting • 30 Groups • 18 Introduction • 5 Language settings • 29 Location Icons •...
