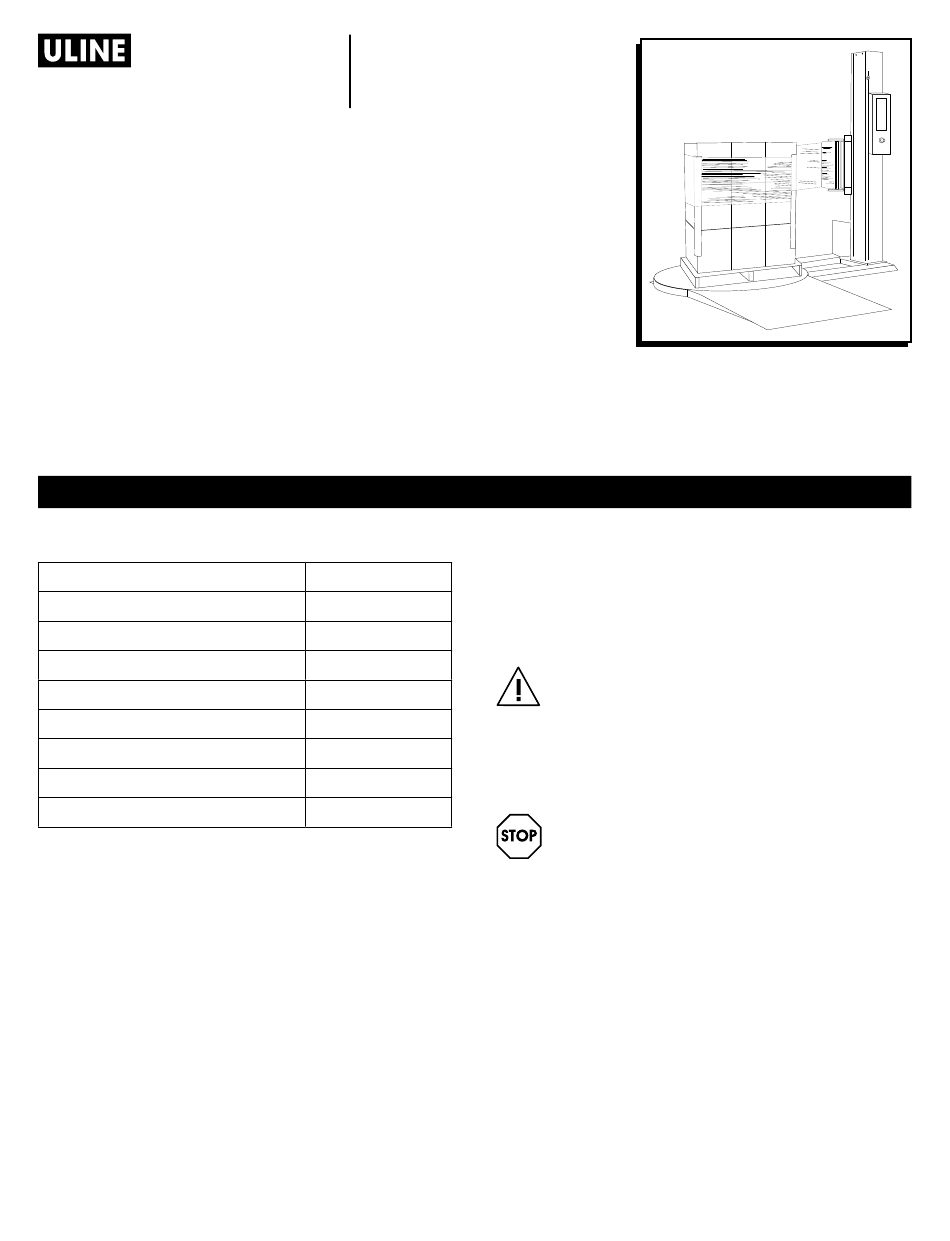

U-Line H-3702 Manual

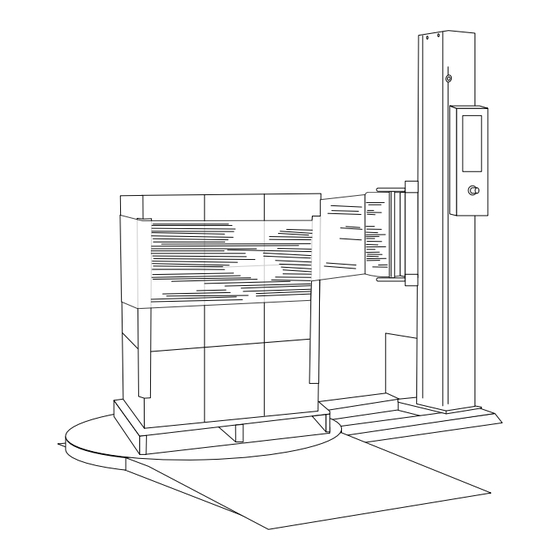

H-3702
SEMI-AUTOMATIC
STRETCH WRAP
MACHINE WITH SCALE
MACHINE DIMENSIONS
Length
Width
Height
Turntable Diameter
Turntable Height from Floor
Wrapping Height
Operation Space
Maximum Load Size
Approximate Shipping Weight
ELECTRICAL SPECIFICATIONS
• 115 VAC, 60 Hz, Single-phase, 15 AMP
TURNTABLE SYSTEM
• 20 loads per hour (spiral)
• 12 RPM turntable maximum speed
• 4,000 lbs. turntable maximum load capacity
FILM CARRIAGE/ELEVATOR SYSTEM
• Adjustable raise and lower speeds
• Automatic height detection photoelectric sensor
SCALE
• RS232 Serial Port
PAGE 1 OF 34
1-800-295-5510
uline.ca
SYSTEM SPECIFICATIONS
FILM DELIVERY SYSTEM
98" • Infinite / Manual Stretch Adjustment
60"
• 10" Diameter Roll Capacity
91"
• 20" Roll Width Capacity
60"
4/"
80"
98 x 60 x 91"
52 x 52 x 80"
1,500 lbs.
• The user is responsible for conforming to all
• Do not plug into GFCI outlets.
• Disconnect AC input power before checking
• Wiring work should be performed only by qualified
Pour le français, consulter les pages 23-34.
CAUTION! Motor control equipment and
electronic controllers are connected to
hazardous line voltages. When servicing
drive and controllers, there may be exposed
components with housings or protrusions at or
above line potential. Extreme care should be
taken to protect against shock.
WARNING! Loose clothing must NOT be worn
while the machine is in operation. Stay clear
of moving parts while the machine is running.
applicable code requirements with respect to
grounding requirements. Do NOT use extension
cords to operate the equipment.
components, performing maintenance, cleaning
up, and when the machine is not in use. Do NOT
connect or disconnect wires and connectors while
power is applied to circuit.
personnel. There is a danger of electric shock or fire.
Para Español, vea páginas 12-22.
1023 IH-3702
