U-Line H-2304 Operation Manual

H-2304

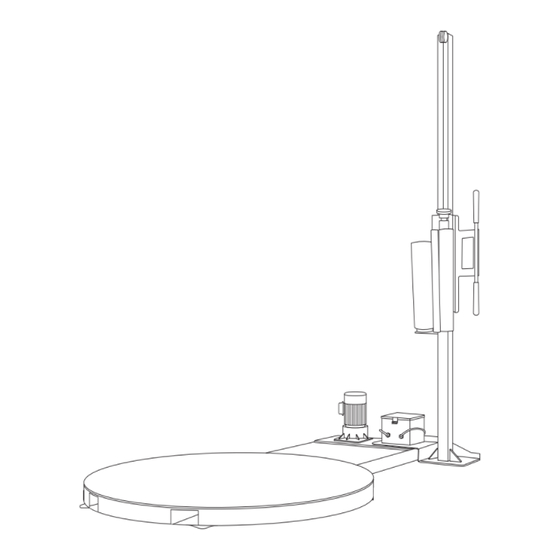

MANUAL STRETCH
WRAP MACHINE
IMPORTANT!
Read this manual thoroughly and familiarize
yourself with ALL controls and operating
features. Keep this manual for future reference
and maintenance.
Unpacking: Check the machine for damage.
If damage is found, return to Uline.
TECHNICAL DATA
• Length: 95"
• Width: 60"
• Turntable Height from Floor: 3¼"
• Operation Space: 105" L x 75" W
• Maximum Pallet Size: 52" x 52"
• Shipping Weight: 1,000 lbs
ELECTRICAL SPECIFICATIONS
• 120VAC, 60 Hz, Single-phase, 15 AMP
TURNTABLE SPECIFICATIONS
• 1/2 HP 3-phase AC motor
• 1/2 HP AC frequency drive with acceleration and
deceleration control
• 12 RPM turntable maximum speed
• 4,000 lbs turntable maximum load capacity
PAGE 1 OF 18
1-800-295-5510
uline.com
SYSTEM SPECIFICATIONS
FILM ROLL CAPACITY
Pour le français, consulter les pages 13-18.
• 12-18" width hand wrap film with 3" inner
diameter core
• 1,000-2,000' length depending on film gauge and
film manufacturer
CAUTION! Motor control equipment and
electronic controllers are connected to
hazardous line voltages. When servicing
drive and controllers, there may be exposed
components with housings or protrusions at or
above line potential. Extreme care should be
taken to protect against shock.
The user is responsible for conforming to all
applicable code requirements with respect
to grounding all requirements. Do NOT use
extension cords to operate the equipment.
Disconnect AC input power before checking
components, performing maintenance,
cleaning up, and when the machine is not in
use. Do NOT connect or disconnect wires and
connectors while power is applied to circuit.
Wiring work should be carried out only by
qualified personnel. There is a danger of
electric shock or fire.
WARNING! Loose clothing must NOT be worn
while the machine is in operation. Stay clear of
moving parts while the machine is running.
Para Español, vea páginas 7-12.
