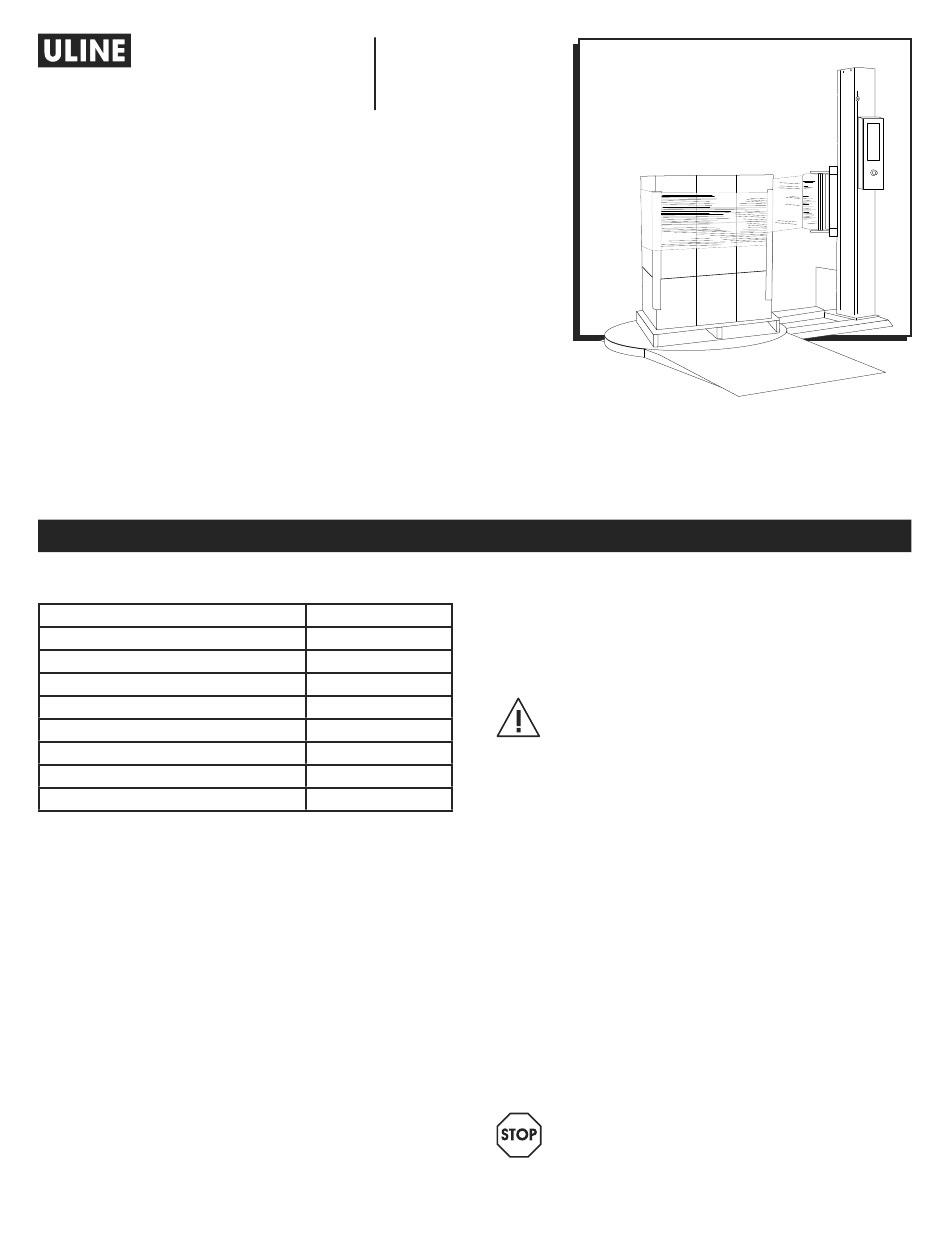

U-Line H-3700 Manual

H-3700
80" SEMI-AUTOMATIC
STRETCH WRAP MACHINE
MACHINE DIMENSIONS
Length
Width
Height
Turntable Diameter
Turntable Height from Floor
Wrapping Height
Operation Space
Maximum Load Size
Approximate Shipping Weight
ELECTRICAL SPECIFICATIONS
• 115 VAC, 60 Hz, Single-phase, 15 AMP
TURNTABLE SYSTEM
• 20 loads per hour (spiral)
• 12 RPM turntable maximum speed
• 4,000 lbs. turntable maximum load capacity
FILM CARRIAGE / ELEVATOR SYSTEM
• Adjustable raise and lower speeds
• Automatic height detection photoelectric sensor
PAGE 1 OF 27
1-800-295-5510
uline.ca
SYSTEM SPECIFICATIONS
FILM DELIVERY SYSTEM
• Infinite / Manual Stretch Adjustment
98"
60"
• 10" Diameter Roll Capacity
91"
• 20" Roll Width Capacity
60"
3/"
80"
98 x 60 x 91"
52 x 52 x 80"
1175 lbs.
Para Español, vea páginas 10-18.
Pour le français, consulter les pages 19-27.
CAUTION! Motor control equipment and
electronic controllers are connected to
hazardous line voltages. When servicing
drive and controllers, there may be exposed
components with housings or protrusions at or
above line potential. Extreme care should be
taken to protect against shock.
The user is responsible for conforming to all
applicable code requirements with respect to
grounding requirements. Do NOT use extension
cords to operate the equipment.
Disconnect AC input power before checking
components, performing maintenance,
cleaning up, and when the machine is not in
use. Do NOT connect or disconnect wires and
connectors while power is applied to circuit.
Wiring work should be performed only by
qualified personnel. There is a danger of
electric shock or fire.
WARNING! Loose clothing must NOT be worn
while the machine is in operation. Stay clear
of moving parts while the machine is running.
0321 IH-3700
