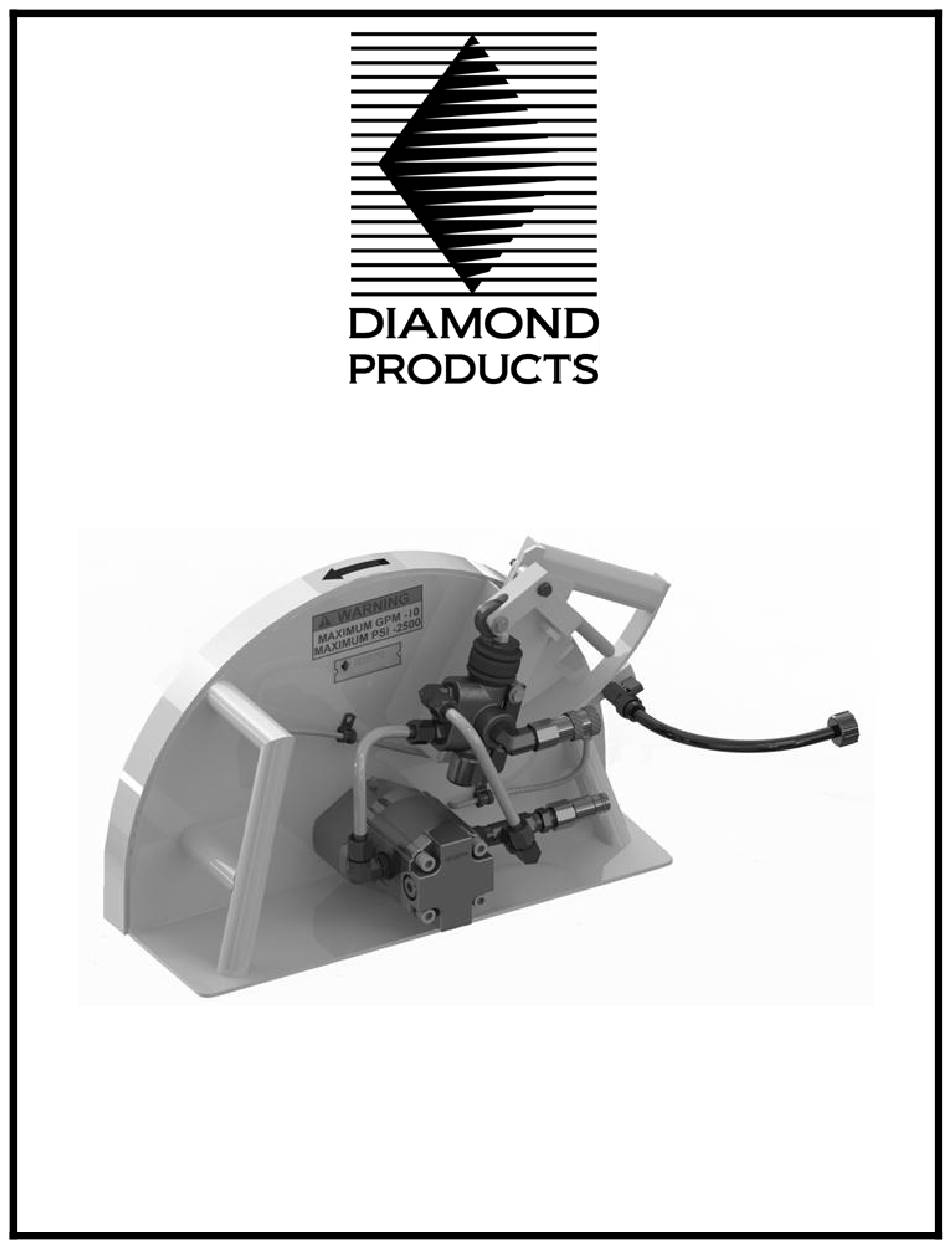

- Page 1 Flush Cut Hydraulic Hand Saw HS-20-F-10 20.00”- 1.03in³ (10GPM) Parts Manual October 2014 Part Number 1803019 www.DiamondProducts.com...
- Page 3 Table Of Contents Saw Dimensions…………………………………………………………………………………………1 Blade Flange……………………………………………………………………………………………..2 General Safety…………………………………………………………………………………………...3 Hand Saw Operation……………………………………………………………………………………4 Saw Parts List…………………………………………………………………………………………5-6 Bearing Block Assembly………………………………………………………………………………7 Metro Valve Assembly…………………………………………………………………………………8 Trigger Assembly……………………………………………………………………………………….9 Hydraulic Motor………………………………………………………………………………………..10 Saw Maintenance & Record………………………………………………………………………….12 Warranty Info…………………………………………………………………………………………...13...
- Page 6 HAND SAW SAFETY WARNINGS PERSONAL SAFETY Read and completely understand instructions before operating saw. • DO NOT operate saw under the influence of drugs or alcohol. • Always wear safety approved hearing, eye, head and repertory protection. • Sturdy boots with non-slip soles aid in providing proper footing. Use of steel-toed safety boots is recommended. •...
-
Page 7: Before Sawing
HAND SAW OPERATING PROCEDURES Blade Mounting Be certain that you have correct diamond blade for the application. Contact your authorized servicing dealer for the correct specification. Ensuring that the correct blade is used will greatly increase performance and durability of blades resulting in cost savings. The blade shaft flanges and arbor must be inspected for damage and cleaned before mounting the blade. - Page 9 Flush Cut Hydraulic Hand Saw HS-20-F-10 - 20.00" 1.03³ (10GPM Rated) ITEM NO. PART NUMBER DESCRIPTION QTY. 2503512 20.00" FLush Cut Hand Saw 2600460 Cassappa Hyd. Motor, 1.03ci W/Anti-Cav Plate 6040437 Bearing Block, Flush Cut 6070252 HS Metro Valve Assembly...
- Page 11 Metro Valve Assembly 6070252 - Valve Assembly ITEM NO. PART NUMBER DESCRIPTION QTY. 2702688 Metro Flow Valve 2507033 Bellow, Hand Saw 2907070 Washer, 3/8" x 1-5/8" 2900196 3/8-16x.750 HEX CAP SCREW...
- Page 12 Single Trigger Assembly 6070416 - Hydraulic Hand Saw Single Trigger Assembly ITEM NO. PART NUMBER DESCRIPTION QTY. 6040498 Single Trigger 2501583 Bearing, 3/8" ID Flanged Bronze 2501515 Bushing UHMW 2502120 Pivot Bolt, HSFC 2900126 1/4" USS Flat Washer 2900039 5/16-18 x .625" Nylon-Insert Hex Locknut 2502897 Bearing 2502576...
- Page 14 Hydraulic Flush Cut Hand Saw Optional Cover 2502559 - 20.00 Flush Cut Hand Saw Cover Assembly ITEM NO. PART NUMBER DESCRIPTION QTY. 2502201 20" FCHS Blade Guard 3202146 .125" Quick Disconnect (Female) 3202201 1/8 MPT Hex Nipple 50785K35 1/8 FPT 90° Elbow 3202145 1/8 Male Quick Disconnect 2506350...
- Page 15 Hand Saw Maintenance & Repair Record Date Service Performed Part Used...
- Page 16 (1) year from the date of shipment to Customer. The responsibility of Diamond Products under this Warranty is limited to replacement or repair of defective parts at Diamond Products’ Elyria, Ohio...
