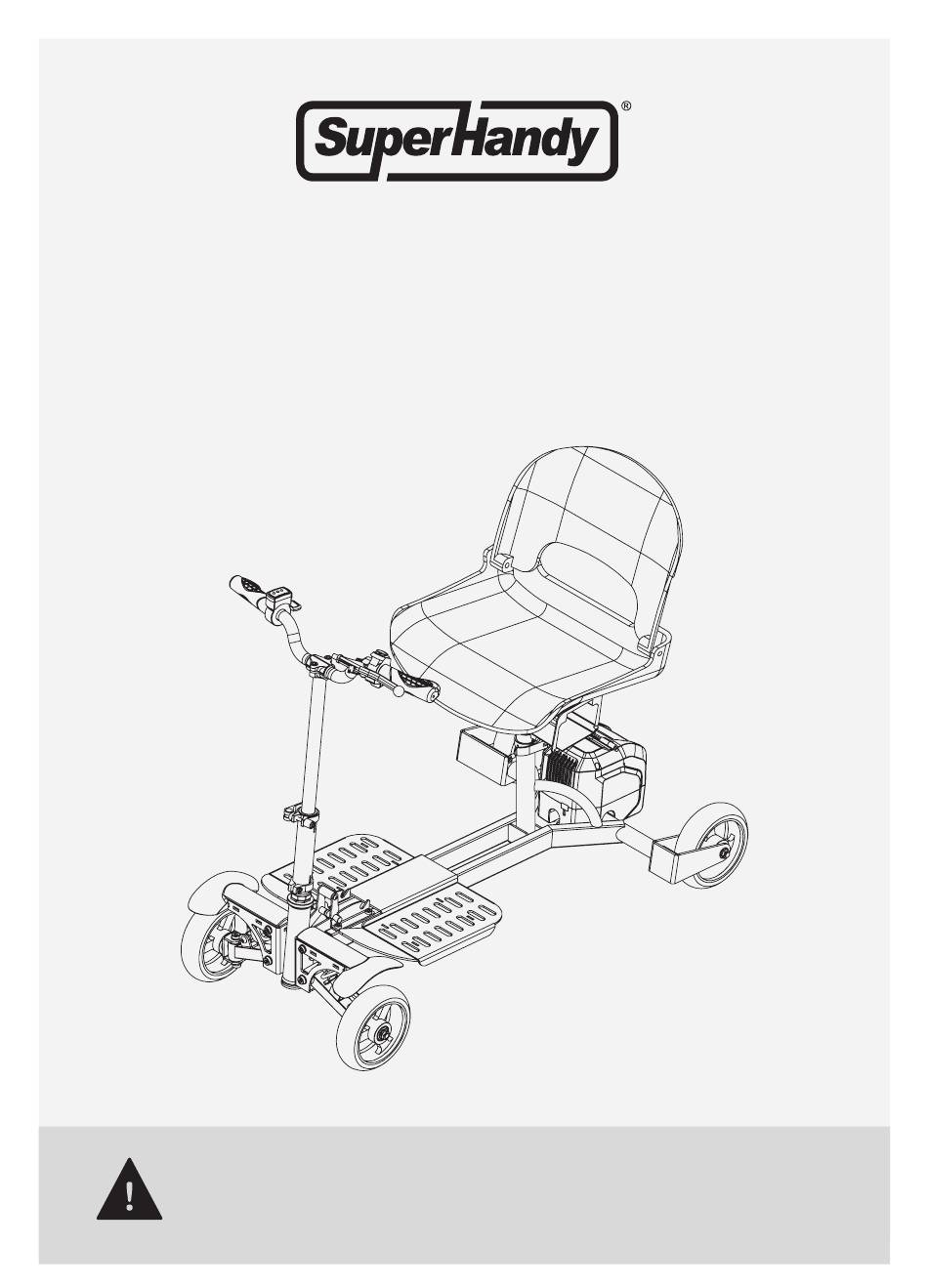

4 Wheels Folding Mobility Scooter
| GUT164 GUT165
Operator's Manual
Warning: Please read and thoroughly understand all instructions before operating. Failure to follow
safety rules and other basic safety precautions may result in serious personal injury. Keep these
instructions in a safe and easily accessible place so that they can be referred to when needed. Retain
these instructions to assist in future servicing.
superhandyus.com
© SuperHandy All Rights Reserved | Version 1.0
Advertisement
Table of Contents
Related Manuals for Super Handy GUT164
Summary of Contents for Super Handy GUT164
- Page 1 4 Wheels Folding Mobility Scooter | GUT164 GUT165 Operator’s Manual Warning: Please read and thoroughly understand all instructions before operating. Failure to follow safety rules and other basic safety precautions may result in serious personal injury. Keep these instructions in a safe and easily accessible place so that they can be referred to when needed. Retain these instructions to assist in future servicing.
-
Page 2: Intended Use
WARNING A mobility scooter is not a toy. It is an electrically powered scooter and failure to follow safe operating procedures and safety warnings at all times could result in serious personal injury or death in addition to the injury or death of others. The symbols below are used throughout this owner’s manual and on the scooter to identify warnings and important information. -
Page 3: Safety Introduction
SAFETY INTRODUCTION 1. SAFETY INSTRUCTIONS. The below instructions and tips will help you to operate your Scooter safely. PLEASE NOTE - The Scooter is designed to be used by one person at a time and is not recommended for any person younger than 16 years old. - Page 4 WARNING This product should not be used by persons unwilling or unable to take responsibility for their own actions. 8. INSURANCE: YOUR INSURANCE POLICIES MAY NOT PROVIDE COVERAGE FOR ACCIDENTS INVOLVING THE USE OF THIS SCOOTER. TO DETERMINE IF COVERAGE IS PROVIDED, CONTACT YOUR INSURANCE COMPANY OR AGENT BEFORE USING THE SCOOTER.
-
Page 5: Technical Details
18. SAFETY WHEN NOT RIDING: When the scooter is not being used for riding, place it in a safe stable and secured environment, keep it away from fire, water and other hazards. When the scooter is in its upright vertical self standing mode, especially in moving public transportation or other crowded space, pay attention to its stability as accidental tipping-over could cause personal injury as well as damage to the scooter. -
Page 6: Controls And Features
CONTROLS AND FEATURES Seat Switch Accelerator Brake handle Battery Handle-bar Post clamp Rear wheel Middle bar Seat post Fender Main frame kit Pedal Front wheel Folding lever ASSEMBLY 1. Out of Package Take out the Scooter frame kit, Seat stand, Seat, Front wheels, Fenders, nuts, bolts and washers from the package (Fig.01). Other components are assembled in scooter frame kit. - Page 7 2. Assemble the front wheels Fig. 02 1) Put the one flat washer at inner. 2) Insert wheel into shaft. 3) Tighten the wheel by flat washer and nut. Completely tighten the nut. 4) Do the same at another side. Wheel Washer Front Washer Nut...
-
Page 8: Seat Height Adjustment
5. Assemble the fender 7.Attach the Seat 1) Left or right fender are same. Don’t worry about mixing 1) Insert the seat to the scooter frame. Align the holes of seat both. stand and frame (Fig.07). 2) Insert the fender to the assembly hook above the front Fig. -
Page 9: Battery Assembly
BATTERY ASSEMBLY Forward/Reverse (See Fig. 11) 1) Open the battery cover, and insert the battery till you hear Control knob also in left hand side. Push upward, scooter a “click”, which means battery is locked in housing. driving direction is forward. Push downward, driving 2) Holding the battery body without press the release direction is reverse. -
Page 10: Operation
Battery LED display (See Fig. 14) Fig. 14 LED display on handle-bar can show battery capacity easily. Push the button, 3 LEDs will show the left capacity of battery. 3 LEDs on, capacity is 100%-70%; 2 LEDs on, capacity is 70%-30%;... - Page 11 GETTING ONTO YOUR SCOOTER 1. Stand at the side of your scooter. WARNING Never attempt to get onto or off your scooter with the scooter “ON”. Ensure parking brake is engaged prior to sitting on the scooter. 2.Make certain that the seat is secured into position. 3.Position yourself comfortably and securely in the seat.
-
Page 12: Outdoor Use
An incline that is too steep or long can create a dangerous situation. The scooter can lose momentum causing it to slide backwards down the incline or tip over backwards. It is not recommended to drive the scooter on any ramp, incline or hill that doesn't meet government wheelchair ramp standards. -
Page 13: Battery Level Indicator
BATTERY AND CHARGER BATTERY Your scooter requires one 48 Volt Lithium-Ion battery that is easy detachable. 1. Fully charge the battery before first time operation or after a long period of non-usage. 2. For safety reasons, the battery is about 50% charged when shipped from the factory. 3. -
Page 14: Cleaning, Storing, And Servicing
BATTERY USE AND CARE WARNINGS WARNING 1. Battery must be fully charged before first use. 2. Plug the charger into a 110-240 AC outlet, a red light should appear on the charger. Charge the battery until the light on the charger turns solid green. -
Page 15: Troubleshooting
TROUBLE SHOOTING Problem Possible cause Solution The scooter does The scooter is not turned on. Turn on scooter by pressing power button. not operate. The battery is not charged. Charge Battery. The hand brake and parking brake Make sure hand brake and parking brake are are inadvertently engaged. - Page 16 Thank you for your most recent purchase. Follow us on social media Great Circle USA Support Line: 1-866-493-0524 @SuperHandy help@greatcircleus.com www.superhandyus.com Size: 210x285mm 157克双铜 REV 01/03/24...
