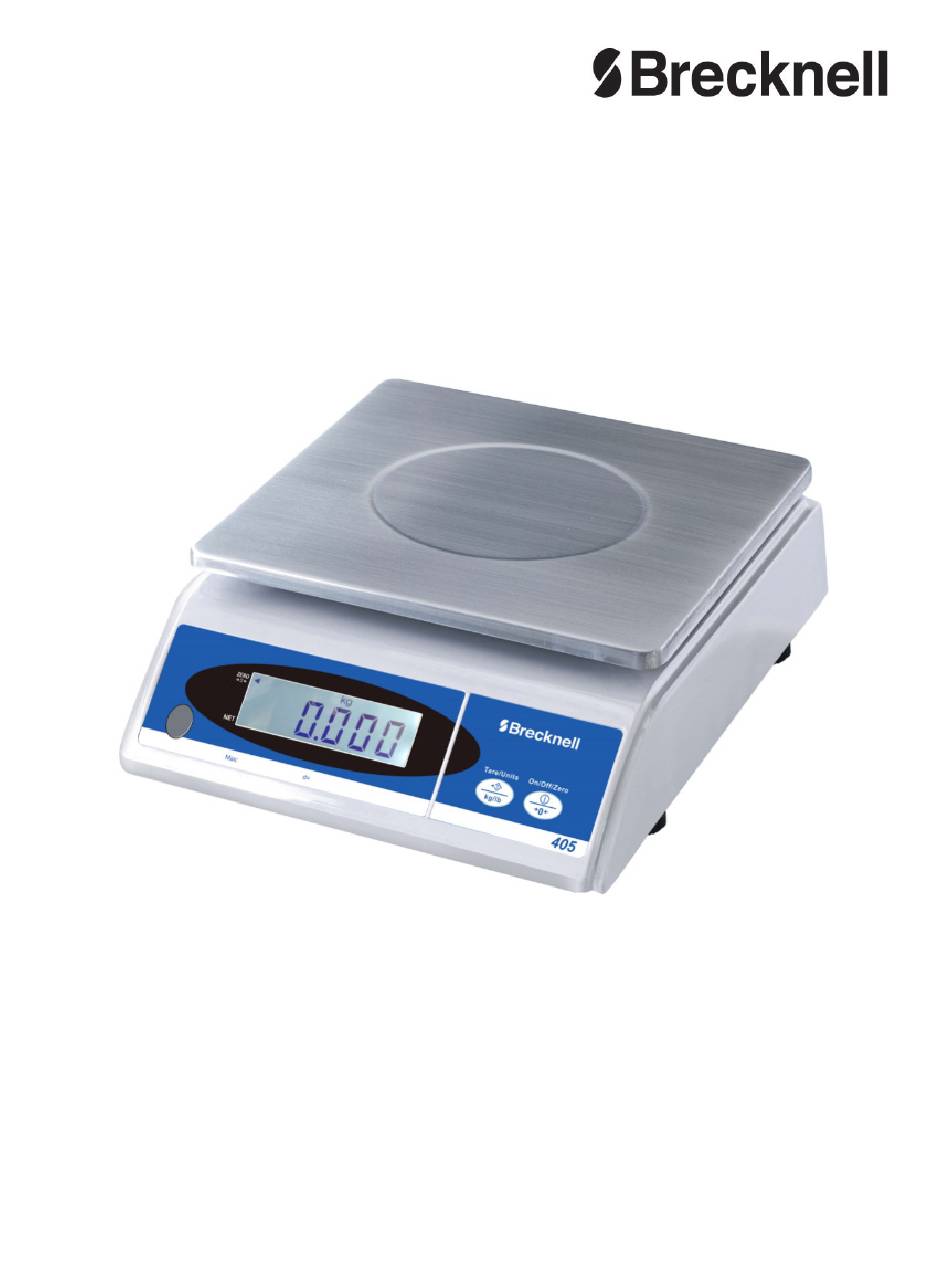

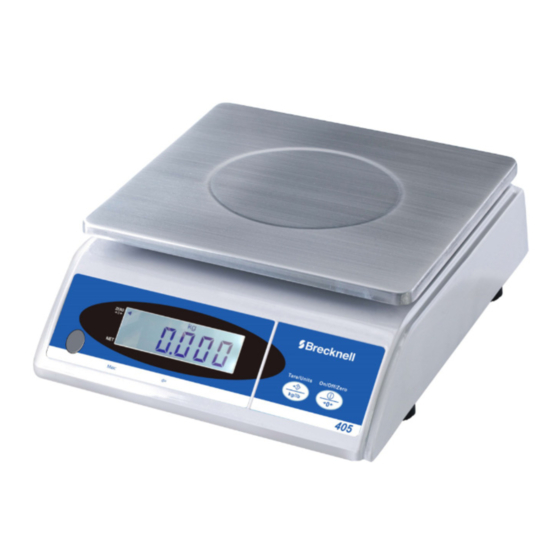

- Page 1 Model 405-LCD Weigh Scale User Manual AWT35-100061 Issue AB...
- Page 2 Brecknell is part of Avery Weigh-Tronix. Avery Weigh-Tronix is a trademark of the Illinois Tool Works group of companies whose ultimate parent company is Illinois Tool Works Inc (“Illinois Tool Works”). Copyright © 2021 Illinois Tool Works. All rights reserved.
-
Page 3: Table Of Contents
Table of Contents Chapter 1 Introduction ..........................5 General and Safety Information ..................5 Specifications ........................5 Unpacking and Setup ......................6 Contents ..........................6 Chapter 2 Overview of Controls and Functions ..................7 Front Display ........................7 Indicator Display Character Definitions ................7 Key Functions ........................ - Page 4 Model 405-LCD...
- Page 5 Manual revision history Current Date Created Details of Changes Issue June 2021 First draft created Dec 2021 Modified section 3 Model 405-LCD...
-
Page 6: Chapter 1 Introduction
Introduction 1.1 General and Safety Information The following information is crucial for user safety and general maintenance. The Model 405-LCD is for use in dry environments only. This product uses 4x AA batteries. Dispose of according to local laws and regulations. -
Page 7: Specifications
Specifications Model 405-LCD-06 405-LCD-15 Max. Capacity 6 kg (12 lb) 15 kg (30 lb) Readability 1 g (0.002 lb) 2 g (0.005 lb) Display Resolution 1:6000 1:7500 Min. Recommended Weight 20 g (0.1 lb) 40 g (0.1 lb) Construction Food grade 304 stainless steel pan, ABS plastic... - Page 8 Adjust the leveling feet until the bubble is centered in the circle of the level indicator (located on the front panel). Figure 1.1 Level indicator orientation NOTE: For best results, ensure that the scale is level before use. For battery power usage, install 4 AA batteries (not included) into the battery compartment found on the underside of the scale.
-
Page 9: Chapter 2 Overview Of Controls And Functions
Overview of Controls and Functions 2.1 Front Display Model 405-LCD... -
Page 10: Indicator Display Character Definitions
2.2 Indicator Display Character Definitions Model 405-LCD... -
Page 11: Key Functions
2.3 Key Functions Button Functions Short Press: (when off) Power on the scale (when on) Long Press: Sets display to zero (when on) Power off the scale Short Press: Tare a weight Long Press: Switch between unit of measure Model 405-LCD... -
Page 12: Chapter 3 Operations
Operations 3.1 Power on/Power off scale Place the scale on a flat, stable surface. Level the scale using the leveling bubble. With the weighing platter empty, press the ON/OFF/ZERO key to power the scale on. The scale will run a display check before showing the software version “V08,”... -
Page 13: Calibration
The scale weight is tared off between each ingredient to give the operator full viability of the weigh of each ingredient added. Zero the scale by pressing the ON/OFF/ZERO key. Place an empty container on the scale and press the TARE/UNIT key. The scale’s display will now show a Net Zero reading and the NET annunciator will now be displayed. - Page 14 To change this setting, complete the following steps: When the scale is on, press and hold the TARE/UNIT and ON/OFF/ZERO keys until “SETUP” is displayed, followed by “A.oFF.1.” A.oFF.1 = The scale will automatically turn off after 1 minutes of inactivity. A.oFF.2 = The scale will automatically turn off after 2 minutes of inactivity.
-
Page 15: Troubleshooting
EEP. Er: EEPROM accessing error or data in EEPROM is not in its normal range Lo.bAt: The voltage of internal function is below 5.7V(+0.1V) 3.9 Troubleshooting SYMPTOM PROBABLE CAUSE REMEDY Power cord not plugged in or properly Check power cord connections. Make sure connected. - Page 17 Brecknell 1000 Armstrong Dr., Fairmont, MN 56031 Toll free: 800-637-0529, Tel: 507-238-8702 Fax: 507-238-8271 Email: sales@brecknellscales.com www.brecknellscales.com Brecknell Foundry Lane Smethwick, West Midlands B66 2LP Tel: +44 (0) 845 246 6717 Fax: +44 (0) 845 246 6718 Email: sales@brecknellscales.co.uk www.brecknellscales.co.uk...
