Summary of Contents for VESTEL AF-7684 YS

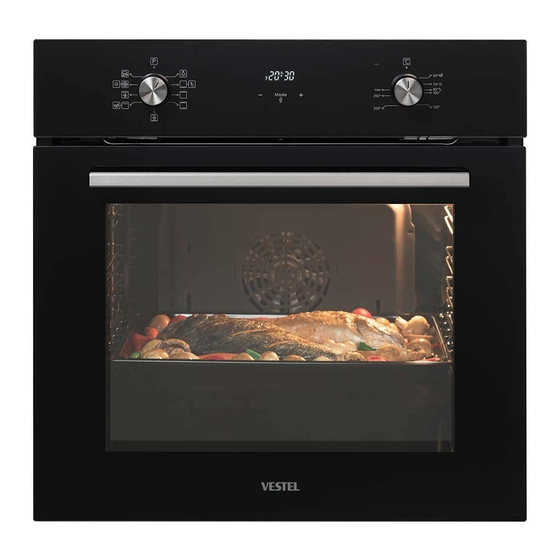

- Page 1 Built-in Oven / User Manual AF-7684 YS AF-7684 YB AF-7684 YG AF-7684 YX...
- Page 2 Thank you for choosing this product. This User Manual contains important safety information and instructions on the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference.
-
Page 3: Table Of Contents
CONTENTS 1.SAFETY INSTRUCTIONS ....................4 1.1 General Safety Warnings ................... 4 1.2 Installation Warnings ....................6 1.3 During Use ......................7 1.4 During Cleaning and Maintenance ................8 2.INSTALLATION AND PREPARATION FOR USE ..............10 2.1 Instructions for the Installer ..................10 2.2 Installation of the Oven ..................10 2.3 Electrical Connection and Safety ................11 3.PRODUCT FEATURES ....................13 4.USE OF PRODUCT .................... -
Page 4: Safety Instructions
1. SAFETY INSTRUCTIONS • Carefully read all instructions before using your appliance and keep them in a convenient place for reference when necessary. • This manual has been prepared for more than one model therefore your appliance may not have some of the features described within. - Page 5 • Handles may get hot after a short period during use. • Do not use harsh abrasive cleaners or scourers to clean the oven door glass and other surface. They can scratch the surfaces which may result in shattering of the door glass or damage to surfaces.
-
Page 6: Installation Warnings
• All possible measures have been taken to ensure your safety. Since the glass may break, care should be taken while cleaning to avoid scratching. Avoid hitting or knocking the glass with accessories. • Make sure that the supply cord is not trapped or damaged during installation. -
Page 7: During Use
1.3 During Use • When you first use your oven you may notice a slight smell. This is perfectly normal and is caused by the insulation materials on the heater elements. We suggest that, before using your oven for the first time, you leave it empty and set it at maximum temperature for 45 minutes. -
Page 8: During Cleaning And Maintenance
appliance or its handles. 1.4 During Cleaning and Maintenance • Make sure that your appliance is turned off at the mains before carrying out any cleaning or maintenance operations. • Do not remove the control knobs to clean the control panel. - Page 9 CE Declaration of conformity We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced. This appliance has been designed to be used only for home cooking. Any other use (such as heating a room) is improper and dangerous.
-
Page 10: Installation And Preparation For Use
2. INSTALLATION AND • After removing the packaging material from the appliance and its accessories, PREPARATION FOR USE ensure that the appliance is not damaged. WARNING : This appliance must be If you suspect any damage, do not use it installed by an authorised service person and contact an authorised service person or qualified technician, according to the... -
Page 11: Electrical Connection And Safety
Installation in a wall unit After making the electrical connections, the identification plate). insert the oven into the cabinet by pushing • During installation, please ensure that it forward. Open the oven door and insert 2 isolated cables are used. An incorrect screws in the holes located on the oven frame. - Page 12 the terminal box. Blue Brown Yellow+Green EN - 12...
-
Page 13: Product Features
3. PRODUCT FEATURES Important: Specifications for the product vary and the appearance of your appliance may differ from that shown in the figures below. List of Components 1. Control Panel 2. Oven Door Handle 3. Oven Door Control Panel 4. Oven Function Control Knob 5. -
Page 14: Use Of Product
4. USE OF PRODUCT Fan Function: The oven’s thermostat and warning lights will switch 4.1 Oven Functions on, and the upper and * The functions of your oven may be different lower heating elements due to the model of your product. and fan will start Oven Lamp: Only the operating. - Page 15 the oven, wait for it to set outside for a while 3D Function: The oven’s and then put it in the refrigerator for about 12 thermostat and warning hours for thickening. lights will switch on, and As is the case in every recipe, when making the ring heating element, yoghurt, you can find the best method for top heating element,...
-
Page 16: Cooking Table
4.2 Cooking Table 4.3 Use of the Digital Touch Timer Dishes Puff Pastry 2 - 3 - 4 170-190 35-45 Cake 2 - 3 - 4 170-190 30-40 Cookie 2 - 3 - 4 170-190 30-40 Stew 175-200 40-50 Chicken 2 - 3 - 4 45-60 Function Description... - Page 17 period of time. A time range between 0 and 10 hours can be set. Prepare the food for cooking 3. After a few seconds, and put it in the oven. the dot will stop flashing and will remain 1. Select the desired cooking function and the illuminated.
-
Page 18: Accessories
4.4 Accessories The EasyFix Wire Rack Clean the accessories thoroughly with warm water, detergent and a soft clean cloth on first use. The Wire Grid The wire grid is best used for grilling or for processing food in oven-friendly containers. •... -
Page 19: Cleaning And Maintenance
Catalytic Cleaning 5. CLEANING AND MAINTENANCE Catalytic liners are installed within the oven cavity. These are the matte-finished, light- coloured panels on the sides and/or the matte- 5.1 Cleaning finished panel at the rear of the oven. They WARNING: Switch off the appliance and work by collecting any grease and oil residue allow it to cool before cleaning is to be during cooking. - Page 20 • Use a glass cleaner to clean the inside and outside of the glass parts. Then, rinse and dry them thoroughly with a dry cloth. Cleaning the Stainless Steel Parts (if available) • Clean the stainless steel parts of your appliance on a regular basis.
-
Page 21: Maintenance
5.2 Maintenance WARNING: The maintenance of this appliance should be carried out by an authorised service person or qualified technician only. Changing the Oven Lamp WARNING: Switch off the appliance and allow it to cool before cleaning your appliance. • Remove the glass lens, then remove the bulb. -
Page 22: Troubleshooting&Transport
6. TROUBLESHOOTING&TRANSPORT 6.1 Troubleshooting If you still have a problem with your appliance after checking these basic troubleshooting steps, please contact an authorised service person or qualified technician. Problem Possible Cause Solution Check whether there is power supplied. Oven does not switch on. Power is switched off. - Page 23 10765963 - 10746679 - 10746695 - 10746696...
