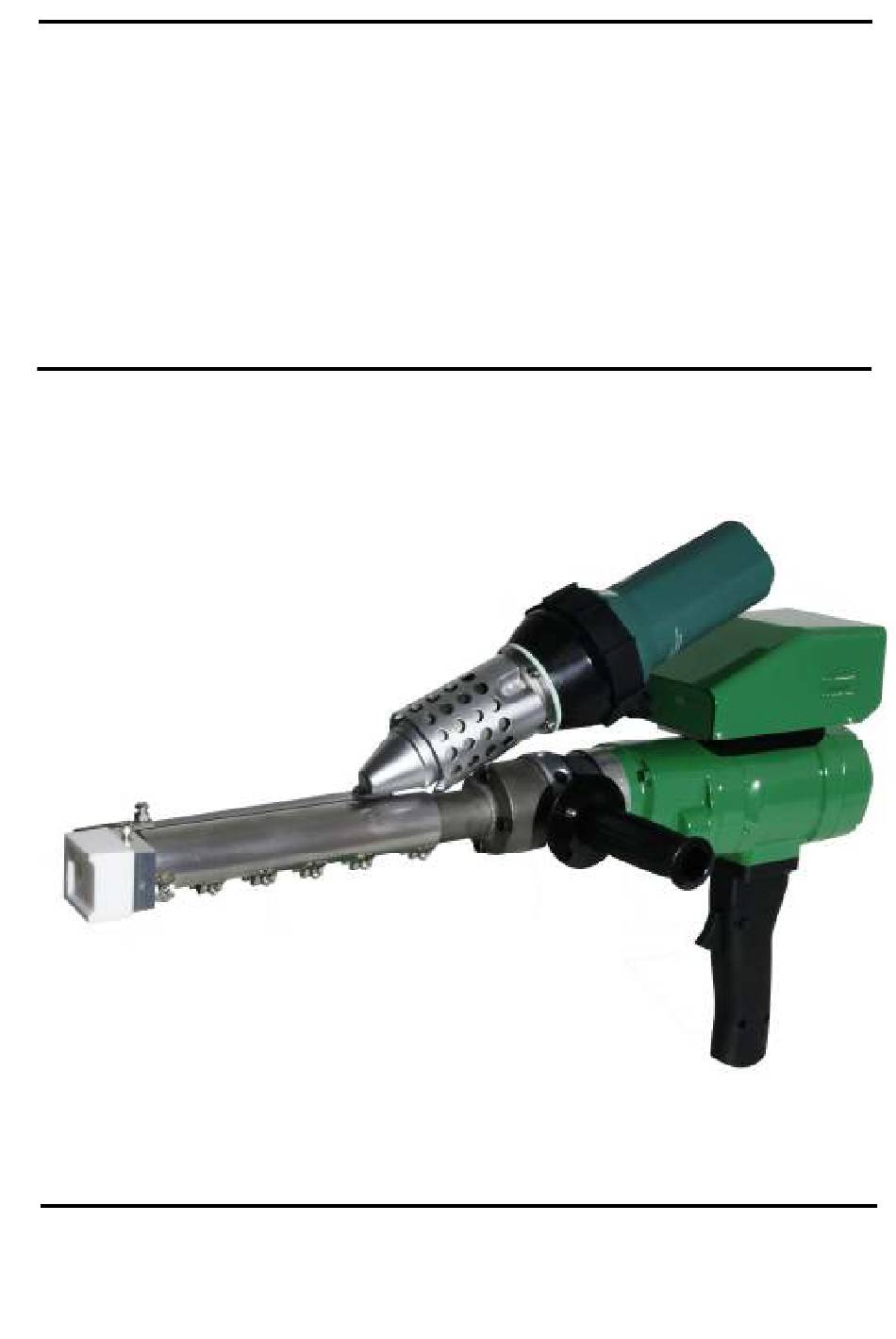

- Page 1 Bedienungsanleitung Operating Instructions ExOn5, DX309 Extrusionstechnik GmbH Dohle Eitorfer Strasse 1 D – 53809 Ruppichteroth www.dohle-extruder.de...
-
Page 2: Table Of Contents
Operating Instructions DOHLE Hand Welding Extruder ExOn5 We retain all copyrights of all descriptions, drawings and schedules contained in these operating instructions which may not be reproduced nor be made accessible by third parties or by competitors, neither in whole nor in part, unless we have expressly consented thereto. -
Page 3: Description Of Type
Operating Instructions DOHLE Hand Welding Extruder ExOn5 1. Type Article-no. / Type of machine : DX309 ExOn5 ..Machine no. Required voltage 400 V / 50 – 60 Hz 2. Safety Pursuant to section 55 of VDE 0 100 (Regulations of the Association of German Electrotechnical Engineers), the extruder must be operated using a protective switch or an isolation transformer. - Page 4 Operating Instructions DOHLE Hand Welding Extruder ExOn5 Operation: Never use hand-held welding and extruding machines without air supply. In case of external air supply ensure that the feed line is of sufficient size. The pressurised air that is supplied must be free of oil and water.
-
Page 5: Start-Up
Operating Instructions DOHLE Hand Welding Extruder ExOn5 3. Start-up General: Observe the notes on safety contained in these operating instructions. In addition, the regulations on the prevention of accidents and the national regulations shall apply. Assembling the hand-held welding and extruding machine When dispatched, our hand-held welding and extruding machines are almost completely assembled. - Page 6 DOHLE Hand Welding Extruder ExOn5 View – controller front – steering box standard optional D - 2381 controller extruder ExOn5 mass D - 2377 temperature controller ExOn2-6 air D - 2384 switch heater ExOn2-6 D - 2383 poti ExOn2-6 D - 2383 poti ExOn2-6...
- Page 7 Operating Instructions DOHLE Hand Welding Extruder ExOn5 Change of the welding shoe In order to be sure that no more old welding rod is in the hand welding extrusion, heat up the machine on operating temperature, remove the welding shoe and change the nozzle (note: left hand thread!).
-
Page 8: Error Tracing
Operating Instructions DOHLE Hand Welding Extruder ExOn5 4. Error tracing Malfunctioning Error– No. Driving motor does not start 01,02,04,05,06,07,08,09,10,11,12 Driving motor switches off 03,04,05,06,07,08,09,10 Extruder remains cold 04,05,06,07,08,09,15,17 Hot air remains cold 05,07,08,09,12 Hot air temperature is under 11,13 desired value... -
Page 9: Drawings, Informations
Operating Instructions DOHLE Hand Welding Extruder ExOn5 5 Drawings, Informations DX309 ExOn5 DOHLE Extrusionstechnik GmbH... - Page 10 Operating Instructions DOHLE Hand Welding Extruder ExOn5 article-no description 6600646 angled hose screw fitting D - 0012 feather key D - 0160 screw M6x10 D - 0163 deep groove ball thrust bearing D - 0233 worm type 5000 D - 0250...
- Page 11 Operating Instructions DOHLE Hand Welding Extruder ExOn5 Eron ExOn2-6, Art-Nr: D - 1664 DOHLE Extrusionstechnik GmbH...
- Page 12 Operating Instructions DOHLE Hand Welding Extruder ExOn5 article-no description 5101270 gasket 70x48x4 5101760 mica tube 47,6x95 5113268 heating element 230V/2200W 6100284 countersunk screw M4x12 TX 6100287 hexagon nut M5 6113695 temperatur limit switch 135°C 6600596 thermoelement 6600601 air filter 6600606...
- Page 13 Operating Instructions DOHLE Hand Welding Extruder ExOn5 Spare Parts Drive Unit DOHLE Extrusionstechnik GmbH...
- Page 14 Operating Instructions DOHLE Hand Welding Extruder ExOn5 pos. art.-no. description qty. DW014 drive housing DW017 gap cap DW018 bearing cap with cover DW019 switch handle DW020 isolating cap D-2167 anchor cmpl. with. blower a. bearing DW022 magnet housing compl. DW023...
- Page 15 Operating Instructions DOHLE Hand Welding Extruder ExOn5 DOHLE Extrusionstechnik GmbH...
- Page 16 Operating Instructions DOHLE Hand Welding Extruder ExOn5 Welding Shoes s = thickness of material fillet weld corner weld a = s x 0,7 thickness of material order - no. D-0195 10-12 D-0196 thickness of material order - no. D-0197 D-0174...
