- Page 1 INFORMATION FOR FIRST AND SECOND RESPONDERS EMERGENCY RESPONSE GUIDE FISKER OCEAN ELECTRIC...
- Page 2 Fisker Inc. and its affiliates. This material may not be modified or reproduced, in whole or in part, without the prior written permission of Fisker Inc. or its affiliates. Unless otherwise indicated, all trademarks are owned and registered to Fisker Inc.
-
Page 3: Table Of Contents
Contents Introduction Important Safety Instructions........................5 About This Guide ..............................5 On Vehicle References ..........................5 Symbols Glossary.............................. 6 1. Identification / Recognition Exterior ..................................7 Interior..................................8 Vehicle Identification Number (VIN)..................... 9 High-Voltage Components........................10 High-Voltage Warning Labels........................11 High-Voltage Battery ............................. - Page 4 Contents 4. Access to the Occupants Key Fob..................................33 Opening Doors from the Outside......................34 Opening Doors without Power ......................35 Power Windows............................... 36 Hood ..................................37 Adjusting the Front Seats........................... 39 Adjusting the Steering Wheel ......................... 40 Cutting the Vehicle............................41 5.
- Page 5 Contents 9. Important Additional Information AVAS (Acoustic Vehicle Alerting System) ..................65 10. Explanation of Pictograms Used Key....................................67...
- Page 6 Contents...
-
Page 7: Introduction
Follow the procedures to help ensure a safe and successful first response operation. About This Guide This guide covers the Fisker Ocean vehicle for models manufactured in 2022 or newer. On Vehicle References The terms Right or Left refer to the driver’s right or left while sitting in the vehicle. -
Page 8: Symbols Glossary
DANGER: Indicates a hazard with a high level of risk which will result in serious injury or death. WARNING: Indicates a hazard that could result in injury or death CAUTION: Indicates a hazard that could result in property or vehicle damage 2022 Fisker Ocean... -
Page 9: Identification / Recognition
1. Identification / Recognition Exterior Id entification / Recognition Id entifying the Ocean The exterior of the Ocean can be distinguished by its unique badging on the front and rear. 2022 Fisker Ocean... -
Page 10: Interior
1. Identification / Recognition Interior The Fisker Ocean can be identified from the interior by its unique dashboard layout and instrument cluster display screen. 2022 Fisker Ocean... -
Page 11: Vehicle Identification Number (Vin)
The fifth digit of the VIN represents Trim Series, and the sixth digit of the VIN represents powertrain 5th Digit = Trim Series 6th Digit = Powertrain Type S: Sport A: SBP/SM/FWD U: Ultra B: LBP/DM/AWD E: Extreme Z: Ocean One 2022 Fisker Ocean... -
Page 12: High-Voltage Components
3. High-voltage cables 4. Photovolatic integrated unit (if equipped) 5. AC Power Outlet 6. Rear drive unit (if equipped) 7. High-voltage battery 8. Charging port 9. PTC heater (high-voltage battery) 10. AC compressor 11. Front drive unit 2022 Fisker Ocean... -
Page 13: High-Voltage Warning Labels
• Rear Electric Drive Unit (if equipped) • PTC heater (for HV battery) • PTC heater (for cabin) • High-Voltage AC Compressor • Charging socket/port • Photovoltaic Integrated Unit (PVIU) (If Equipped) • High-Voltage Cables (can be distinguished by orange color) 2022 Fisker Ocean... -
Page 14: High-Voltage Battery
High-Voltage Battery The high voltage (HV) lithium-ion battery is mounted under the vehicle floor. When using lifting or rescue tools, use caution and never breach the high-voltage battery case. For proper lifting procedures, see Lifting the Vehicle, page 2022 Fisker Ocean... -
Page 15: 12-Volt Battery
The 12V battery is located at the right front of the chassis, under the hood. See Hood, page This battery powers all of the standard low-voltage electronics in the vehicle. It also powers the power distribution unit, which controls high-voltage current within the high-voltage components (e.g. drive motor, powertrain controller). 2022 Fisker Ocean... - Page 16 To access the vehicle’s 12V battery: 1. Open the hood. See Hood, page 2. Flip open the access cover to the positive terminal by pulling up on the tab. 3. The positive terminal (+) and negative ground (-) are illustrated above. 2022 Fisker Ocean...
-
Page 17: High-Voltage Cables
1. Identification / Recognition High-Voltage Cables High-voltage cables are colored orange for easy identification. 2022 Fisker Ocean... -
Page 18: Drive Motors
Drive Motors The drive units are located at the center of the front axle (and rear if equipped). These components receive 3-phase alternating current (AC) and convert it into propelling energy (torque), used to power the wheels. 2022 Fisker Ocean... -
Page 19: Airbags
Note: Airbags are located in the approximate areas shown in the illustration. The exact locations of the airbag modules are indicated by the word AIRBAG on the trim or the seat cover. 2022 Fisker Ocean... -
Page 20: Seat Belt Pre-Tensioners
5 minutes. Do not touch the SRS control unit within 5 minutes of an airbag or pre-tensioner deployment. The seat belt pre-tensioners are located at the bottom of the D-Pillars and in the seat belt buckle. 2022 Fisker Ocean... -
Page 21: Immobilization / Stabilization / Lifting
When either the front passenger door or driver door is opened, the Center Information Display (CID) and Instrument Cluster will turn on. However, at this point, the vehicle ignition power is not ON until the brake pedal is pressed. 2022 Fisker Ocean... -
Page 22: Powering On
Seats/Steering Wheel, Windshield Wipers, Automatic Headlamp Leveling On State Systems active: All (vehicle cannot be driven) Systems inactive: None (vehicle cannot be driven) Run State Systems active: All (vehicle can be driven) Systems inactive: None (vehicle can be driven) 2022 Fisker Ocean... -
Page 23: Powering Off
Driver door closed, vehicle locked, driver seat not occupied Key Fob and Phone Key are outside of the vehicle After 20 minutes have elapsed with gearshift in park. 2022 Fisker Ocean... -
Page 24: Shifting Into Neutral
Note: To shift out of P (Park), the brake pedal must be pressed. The Instrument Cluster displays the selected gear: • R - Reverse • N - Neutral (Use when starting, parking, or transporting the vehicle) • D - Drive • P - Park (Press center button) 2022 Fisker Ocean... -
Page 25: Applying The Electronic Parking Brake (Epb)
To manually release the EPB, hold the brake pedal and press the EPB switch on the dash, to the left of the steering wheel. The EPB also applies automatically when the vehicle power is turned Off. See Preparing the Vehicle for Transportation, page 2022 Fisker Ocean... - Page 26 2. Immobilization / Stabilization / Lifting CAUTION: If the vehicle loses electrical power, it is not possible to select another gear and therefore will be unable to release the parking brake. Contact a Fisker Service Center for assistance. 2022 Fisker Ocean...
-
Page 27: Chocking The Wheels
Gear is in D (Drive) or R (Reverse). • The vehicle has the potential to roll forward or backward if the drive system is ON, brakes are not engaged, gear is in D (Drive) or R (Reverse). 2022 Fisker Ocean... -
Page 28: Lifting Points
Lifting the vehicle at any other points may cause irreparable damage and could also create a fire hazard. If the vehicle needs to be lifted, only use the illustrated lifting points to avoid breaching the high-voltage battery. 2022 Fisker Ocean... -
Page 29: Disable Direct Hazards / Safety Regulations
Equipment Specification Purpose Insulated Crowbar To pry off panels Insulated Cable Cutters To cut 12V battery ground cable and Accessory Power Module cable Insulated Tape Insulating To cover any exposed 12V harnesses to protect from electric shock 2022 Fisker Ocean... -
Page 30: Before Disabling The Power System
Once power is disabled in the vehicle: • The power windows cannot be operated. • Door locks cannot be operated from the exterior. • Power seats cannot be operated. • Electronic Parking Brake (EPB) cannot be operated. 2022 Fisker Ocean... -
Page 31: Disconnecting The Charge Cable
If pressing the button on the charging cable will not release it, the vehicle has a manual disconnect. Open the driver's door and pull the manual release cable located on the A-pillar, and simultaneously pull the charging cable connector. Do not pull the manual release cable too hard as it may break. 2022 Fisker Ocean... -
Page 32: Disabling The High-Voltage System
4. Locate and double-cut. Be sure to cut out a section of cable that is wide enough to prevent the cut ends from accidentally touching and completing the electrical circuit. 5. If time allows, wrap the cut ends of the cable in electrical tape as an additional precaution against accidental reconnection. 2022 Fisker Ocean... -
Page 33: Disabling The 12-Volt System
Be sure to cut out a section of cable that is wide enough to prevent the cut ends from accidentally touching and completing the electrical circuit. 4. If time allows, wrap the cut ends of the cable in electrical tape as an additional precaution against accidental reconnection. 2022 Fisker Ocean... - Page 34 3. Disable Direct Hazards / Safety Regulations THIS PAGE INTENTIONALLY LEFT BLANK 2022 Fisker Ocean...
-
Page 35: Access To The Occupants
3. Press once to lock all doors. 4. Press once to fully open or close the tailgate window. 5. Press and hold to open the tailgate. The key fob should be in range within 164 ft (50 m) or closer to the vehicle. 2022 Fisker Ocean... -
Page 36: Opening Doors From The Outside
• A valid key fob or phone key is detected within 7 ft (2m) of the vehicle. • The key fob is used to unlock the doors. • The Fisker App is used to unlock the doors. Once a handle extends, pull to open that door. -
Page 37: Opening Doors Without Power
If the vehicle loses power, every door can still be opened from the interior using the door handle. To open from inside, pull the interior handle. The doors can not be opened from the outside door handle if they are locked and there is no power. 2022 Fisker Ocean... -
Page 38: Power Windows
• Ensure that the vehicle is ON. See Powering On, page • Push down on the top of the switch to lower the window. • Pull up on the top of the switch to raise the window. 2022 Fisker Ocean... -
Page 39: Hood
Remove the service lid. 2. Remove the two bolts securing he hood (magnetic 13mm hex socket) Torque to 19 Nm on re-install (Do Not use power tools or over-tighten) 2022 Fisker Ocean... - Page 40 Opening the hood Once you have successfully unbolted the hood: 1. Raise the hood. 2. Ensure the hood is raised to the fully open position. 3. Ensure the hood hinge lock on the left arm engages before releasing. 2022 Fisker Ocean...
-
Page 41: Adjusting The Front Seats
1. Move switch 1 forward or backward moves the seat forward or backward. Move switch 1 up or down moves the seat up or down. 2. Move switch 2 forward or backward adjusts the angle of the backrest. 2022 Fisker Ocean... -
Page 42: Adjusting The Steering Wheel
3. Use the steering wheel controls as prompted to adjust the steering wheel to your preferred position. 4. Once an adjustment has been made, press Done to save this position under the current Driver Profile. Press the X to close or cancel. 2022 Fisker Ocean... -
Page 43: Cutting The Vehicle
WARNING: Regardless of the disabling procedure you use, ALWAYS ASSUME THAT ALL HIGH-VOLTAGE COMPONENTS ARE ENERGIZED! Cutting, crushing, or touching high-voltage components can result in serious injury or death. 2022 Fisker Ocean... - Page 44 Due to the presence of batteries and high-voltage components, never cut or crush the illustrated areas. Doing so could result in serious injury or death. WARNING: Cutting in a no cut zone can result in serious injury or electrocution. Always assume the high-voltage components are energized. 2022 Fisker Ocean...
- Page 45 • Personal Protective Equipment (PPE) • Insulated Gloves • Wheel Chocks • Insulated Cable Cutters • Circular Saw (for cutting metal) • Hydraulic Cutters • Hydraulic Spreaders • Thermal Imaging Camera 2022 Fisker Ocean...
- Page 46 4. Access to the Occupants THIS PAGE INTENTIONALLY LEFT BLANK 2022 Fisker Ocean...
-
Page 47: Stored Energy / Liquids / Gases / Solids
Extended High-Voltage Battery Type Nickel Manganese Cobalt Oxide (NMC) Rating 113.3 kWh - 149 Ah Voltage and polarity 379.4 V DC Dimensions • Length 2110 mm • Width 1530 mm • Height 146.2 mm Weight 588 kg 2022 Fisker Ocean... -
Page 48: Vehicle Fluids
Reservoir under the hood Various colors Washer Fluid Reservoir under the hood Various Lithium-Ion Battery Fluid High-voltage battery Clear; a ruptured battery pack cell will only leak a small amount Lithium-Ion Battery High-voltage battery Clear; sweet odor Electrolyte pack 2022 Fisker Ocean... -
Page 49: In Case Of Fire
• All second responders and anyone coming in contact with the vehicle afterwards should be notified that the vehicle contains a high-voltage system. Inform them of the risk of re-ignition. Note: Contact ESA (Energy Security Agency) for real time guidance and assistance - 855-ESA-SAFE 2022 Fisker Ocean... - Page 50 6. In Case of Fire THIS PAGE INTENTIONALLY LEFT BLANK 2022 Fisker Ocean...
-
Page 51: In Case Of Submersion
BEFORE attempting to disconnect the cable. See Disconnecting the Charge Cable, page • Drain the vehicle of water completely before attempting to disable the power. Disabling the Power, page 2022 Fisker Ocean... - Page 52 7. In Case of Submersion THIS PAGE INTENTIONALLY LEFT BLANK 2022 Fisker Ocean...
-
Page 53: Inspection / Transportation / Storage
Because of these potential hazards, the vehicle should remain isolated until after it has passed inspections. See Isolation Methods, page Tow operators, storage facility personnel, and vehicle owners should be made aware of these risks when transporting and storing a damaged electric vehicle. 2022 Fisker Ocean... -
Page 54: Inspection Items
• A coolant is used to cool the high-voltage battery and drive unit. The reservoir is located under the hood. • The vehicle uses brake fluid and washer fluid. All reservoirs for these fluids are under the hood. 2022 Fisker Ocean... -
Page 55: After Inspection
• To minimize risk, proper isolation methods should be used when storing a potentially hazardous vehicle. See Storage and Isolation, page • If there are no issues identified with the vehicle, then storing it is unlikely to pose any risk greater than that of a non-electric vehicle. 2022 Fisker Ocean... -
Page 56: Moving Off The Road
Note: The recovery eye may only be used if the vehicle wheels will roll and the vehicle is being loaded directly onto a flatbed truck. If the wheels will not roll - then nylon straps will need to be used along with skates under all 4 wheels. 2022 Fisker Ocean... - Page 57 4. With the wheels off the ground, the vehicle can then be positioned for loading onto the tow truck. 5. Load the vehicle onto the tow truck. See Pulling the Vehicle onto a Trailer or Transporter, page 59 2022 Fisker Ocean...
-
Page 58: Vehicle Weights
Up to 4012 lb (1820 kg) • Non-braked trailer Up to 1653 lb (750 kg) • Drawbar load Up to 401 lb (182 kg) * Curb Weight = Weight of vehicle with correct fluid levels, no occupants, and no cargo 2022 Fisker Ocean... -
Page 59: Preparing The Vehicle For Transportation
In this case, wheeled dollies or skid pads must be used under all the wheels to prevent vehicle damage. The vehicle automatically applies the parking brake whenever the vehicle is in P (Park) or it detects that the key fob is no longer in the vehicle. 2022 Fisker Ocean... -
Page 60: Transporting The Vehicle
10 miles (16 kilometers) may cause serious damage to the vehicle, and can generate high voltages in the vehicle’s electrical components. The only methods approved by Fisker for recovering or transporting the vehicle are as follows: • Long-range: Flatbed trailer or transporter The flatbed trailer or transporter must have an approved load rating greater than the actual weight of your vehicle, including after-market accessories and cargo. -
Page 61: Pulling The Vehicle Onto A Trailer Or Transporter
Using the tow eye is not suitable in these scenarios. The recovery eye can be installed to either the front or the rear of the vehicle. To install the recovery eye: Front attachment point 2022 Fisker Ocean... - Page 62 Winching a vehicle with no power If the vehicle has no power and the Electronic Parking Brake is engaged, use skid pads or skates on all four wheels and nylon straps on the lower control arms. 2022 Fisker Ocean...
-
Page 63: Recovering The Vehicle From A Ditch
CAUTION: Never use the recovery eye to pull the vehicle out of a ditch. Doing so can significantly damage the vehicle. When recovering the vehicle from a ditch, use nylon straps attached to either the front or rear lower control arms. 2022 Fisker Ocean... -
Page 64: Securing The Vehicle For Transportation
CAUTION: Attaching tie-down straps should only be used on the lower control arms in a towing scenario. After the vehicle has been secured on the transporter or trailer. Then shift the vehicle to P to engage park lock and parking brake. 2022 Fisker Ocean... -
Page 65: Storing Damaged Vehicles
• If an open side is left in the barrier, then that open side should be separated from all structures and combustibles by at least 50 feet (15 meters). • Barrier roofs are not recommended, as they could exacerbate potential hazards such as fires or built-up gases. 2022 Fisker Ocean... - Page 66 8. Inspection / Transportation / Storage THIS PAGE INTENTIONALLY LEFT BLANK 2022 Fisker Ocean...
- Page 67 AVAS (Acoustic Vehicle Alerting System) that emits a constant sound to warn pedestrians of its presence. • Sound activates at speeds over 0 mph (0 km/h) • Emits a continuous sound at 40 dBa • Volume cannot be adjusted • System cannot be disabled 2022 Fisker Ocean...
- Page 68 9. Important Additional Information THIS PAGE INTENTIONALLY LEFT BLANK 2022 Fisker Ocean...
- Page 69 10. Explanation of Pictograms Used Explanation of Pictograms Used Pictograms EV (Electric Vehicle) Li-ion (Lithium Ion Battery) 12V Battery (Low Voltage) Airbag Gas Strut High-Strength Zone High-Voltage Battery High-Voltage Power Cable/Component Seat Belt Pretensioner SRS Control Unit 2022 Fisker Ocean...
- Page 70 10. Explanation of Pictograms Used THIS PAGE INTENTIONALLY LEFT BLANK 2022 Fisker Ocean...
Need help?
Do you have a question about the OCEAN ELECTRIC and is the answer not in the manual?
Questions and answers

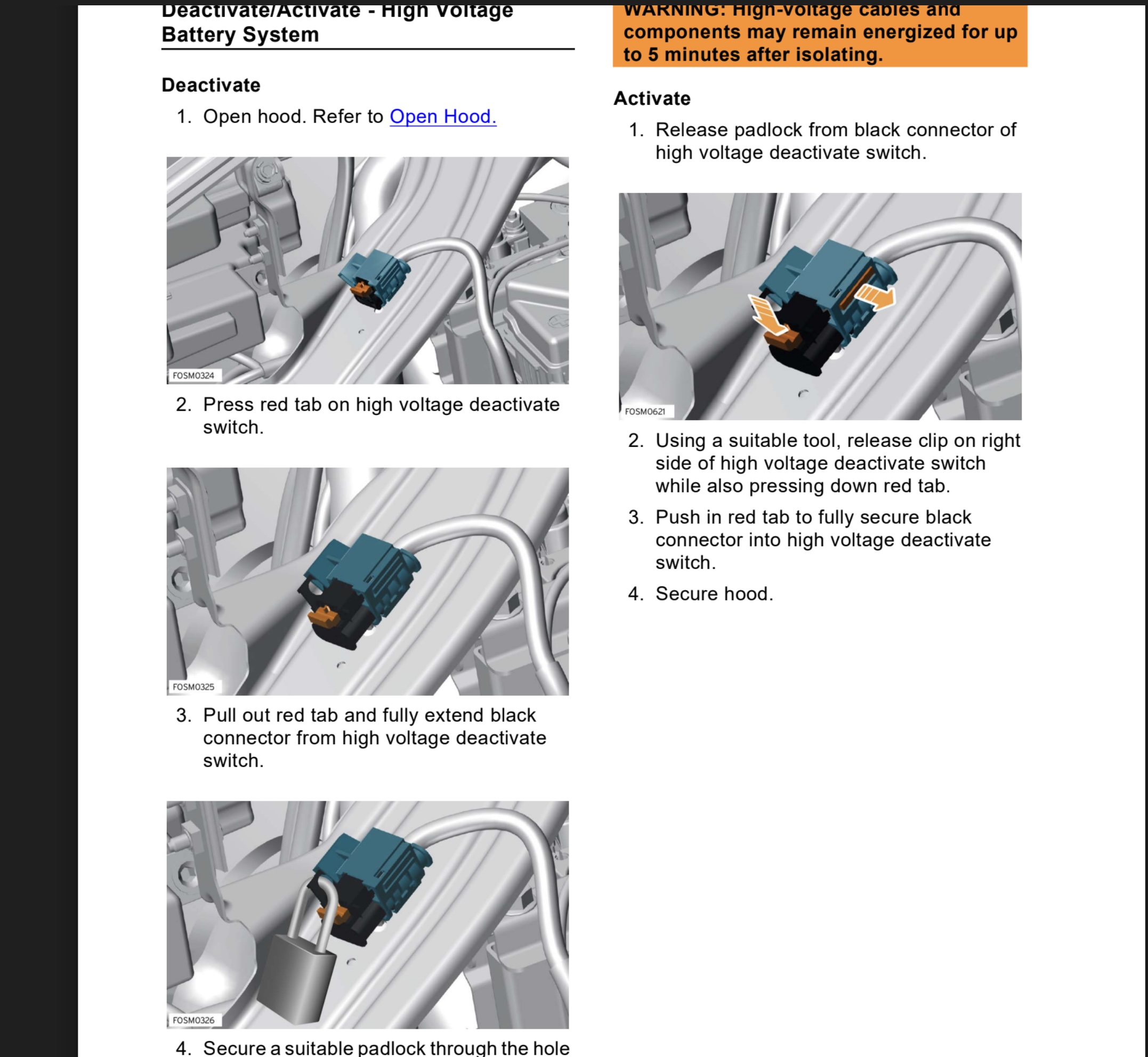

What is the part number of high voltage deactivate switch. (high voltage interlock)
