SH-EH50 |

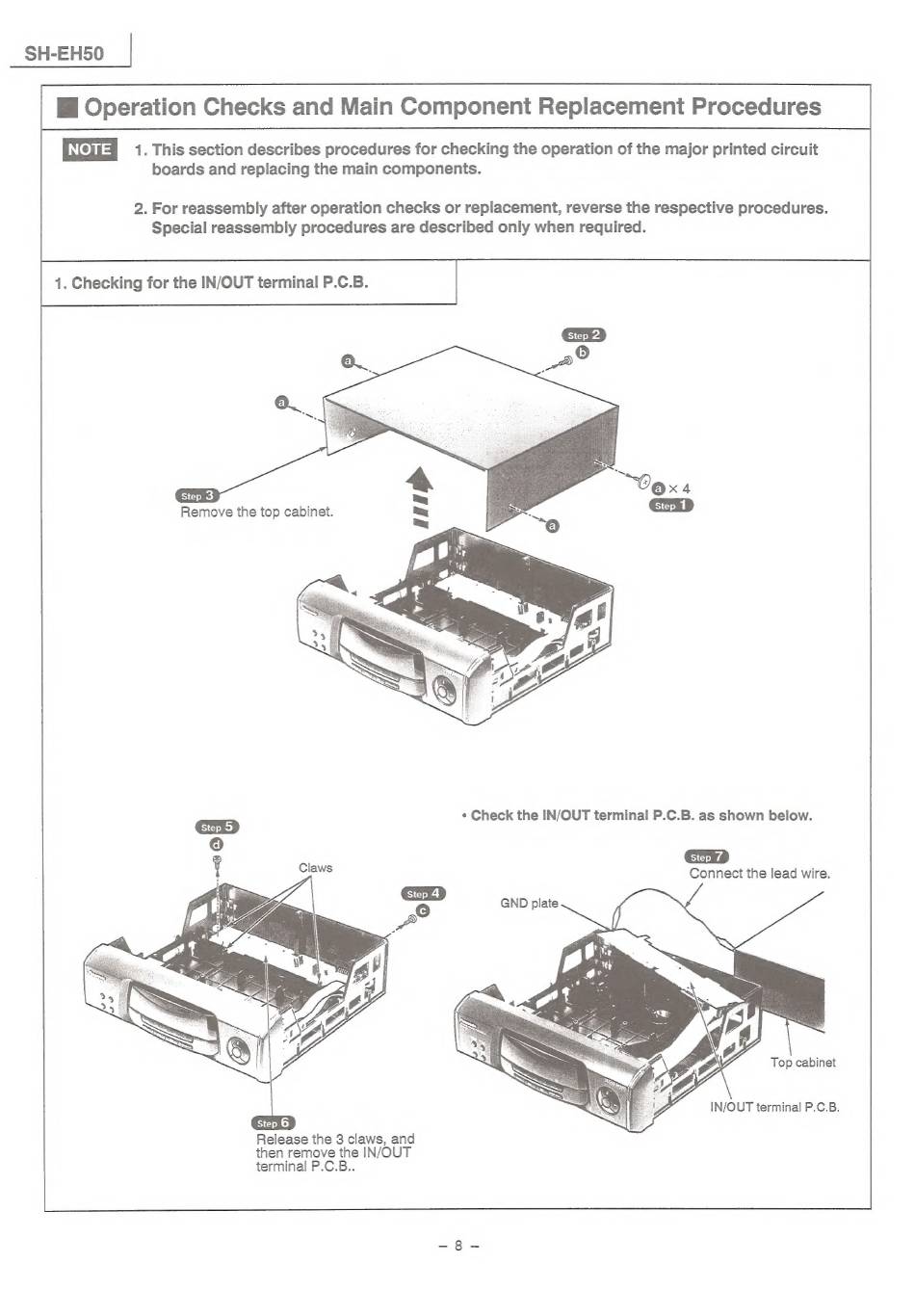

@ Operation Checks and Main Component Replacement Procedures
\\(oyg=8 1. This section describes procedures for checking the operation of the major printed circuit
boards and replacing the main components.
2. For reassembly after operation checks or replacement, reverse the respective procedures.
Special reassembly procedures are described only when required.
1. Checking for the IN/OUT terminal P.C.B.
Remove the top cabinet.
¢ Check the IN/OUT terminal P.C.B. as shown below.
Connect the lead wire.
Top cabinet
IN/OUT terminal P.C.B.
Step 6
Release the 3 claws, and
then remove the IN/OUT
terminal P.C.B..
