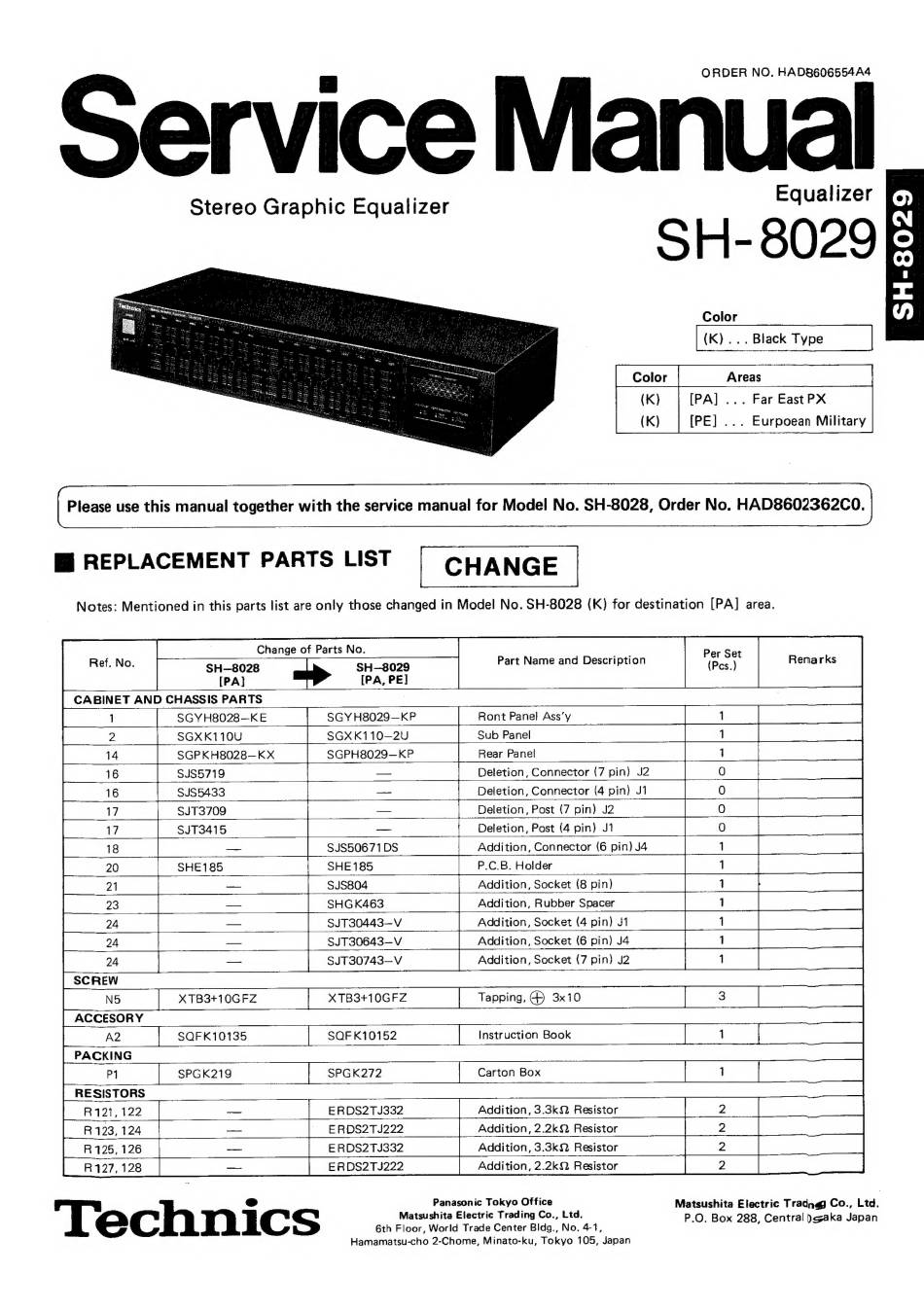

Technics SH-8029 Service Manual

ORDER NO. HAD8606554A4
Equalizer ff)

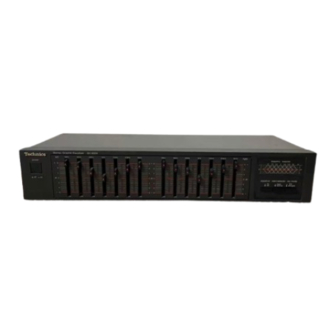

Stereo Graphic Equalizer
Color
(K)... Black Type
[PA] ... Far East PX
[PE] ... Eurpoean Military
Please use this manual together with the service manual for Model No. SH-8028, Order No. HAD8602362C0.
Notes: Mentioned in this parts list are only those changed in Model No. SH-8028 (K) for destination [PA] area.
Change of Parts No.
SH—8028
SH—8029
Part Name and Description
Remarks
[PA] [PA, PE]
CABINET AND CHASSIS PARTS
SGYH8028—KE
SGXK110U SGXK110—2U 1
14 SGPKH8028—KX SGPH8029—KP 1
16 SJS5719
18 — SJS50671DS Addition, Connector (6 pin) J4
20 SHE185 P.C.B. Holder
24 SJT30443-V Addition, Socket (4 pin) J1
24 SJT30643—V | Addition, Socket (6 pin) 4 |
SJT30743-V Addition, Socket (7 pin) J2
SCREW
XTB3H10GFZ XTB3+10GFZ Tapping, @ 3x10
ACCESORY
SPGK219 SPGK272 Carton Box
RESISTORS
R123, 124 oa: ERDS2TJ222 Addition, 2.2k2 Resistor
PRysi26 | ~——SS—*dSCDS2T302_— | Addition, 3.3K Resistor | 2
P Rai [| CSC RDS2TIZ22 | Addition, 2.2k0 Resistor | 2
