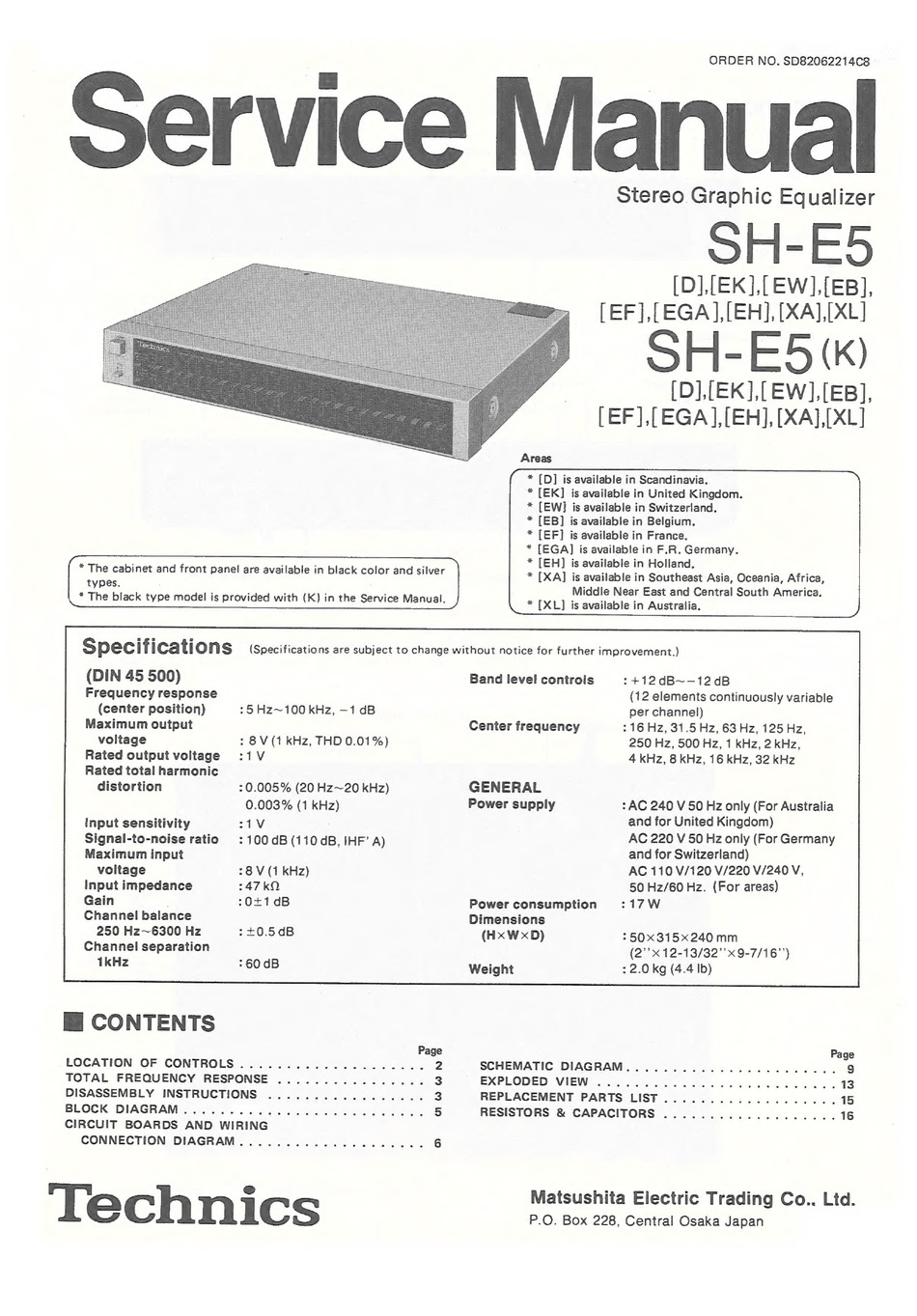

Technics SH-E5 Service Manual

ORDER NO. SD82062214c8

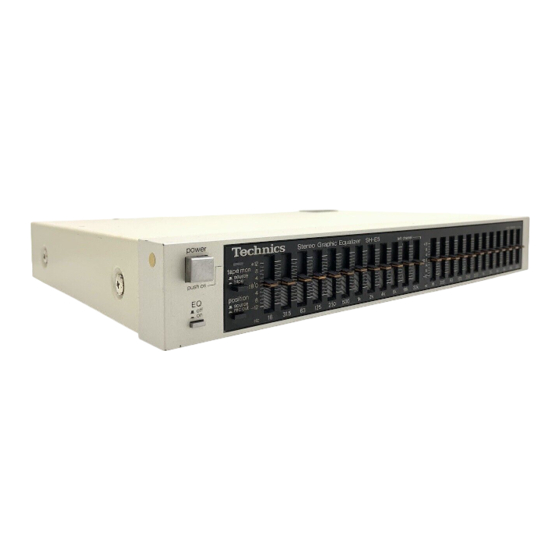

Stereo Graphic Equalizer
OH-E5
[D],[EK],[EW],[EB],
[EF],[EGA],[EH], [XA] XL
]
SH-ES (W)
]
[D],[EK],[ EW], [EB],
[EF],[EGA],[EH], [XA],[XL
* [D] is available in Scandinavia.
* [EK] is available in United Kingdom.
* [EW] is available in Switzerland.
* [EB] is available in Belgium.
* [EF] is available in France.
* [EGA] is available in F.R. Germany.
* [EH] is available in Holland,
* [XA] is available in Southeast Asia, Oceania, Africa,
Middle Near East and Central South America.
* [XL] is available in Australia.
* The cabinet and front panel are available in black color and silver
types.
* The black type model is provided with (K) in the Service Manual.
Specifications (Specifications are subject to change without notice for further improvement.)
(DIN 45 500)
Band level controls :+12dB~-12dB
Frequency response
(center position)
:5 Hz~100 kHz, —1 dB
(12 elements continuously variable
per channel)
distortion : 0.005% (20 Hz~20 kHz) GENERAL
0.003% (1 kHz) Power supply : AC 240 V 50 Hz only (For Australia
Input sensitivity "1V and for United Kingdom)
Signal-to-noise ratio: 100 dB (110 dB, IHF' A) AC 220 V 50 Hz only (For Germany
Maximum input and for Switzerland)
voltage :8V (1 kHz) AC 110 V/120 V/220 V/240 V,
Input impedance 247kO 50 Hz/60 Hz. (For areas)
Gain :0+1dB Power consumption :17W
Channel balance Dimensions
250 Hz~6300 Hz :+0.5dB (HxWxD) >50x315x240 mm
Channel separation (2''X 12-13/32''x 9-7/16"')
B CONTENTS
Matsushita Electric Trading Co.. Ltd.
P.O. Box 228, Central Osaka Japan
