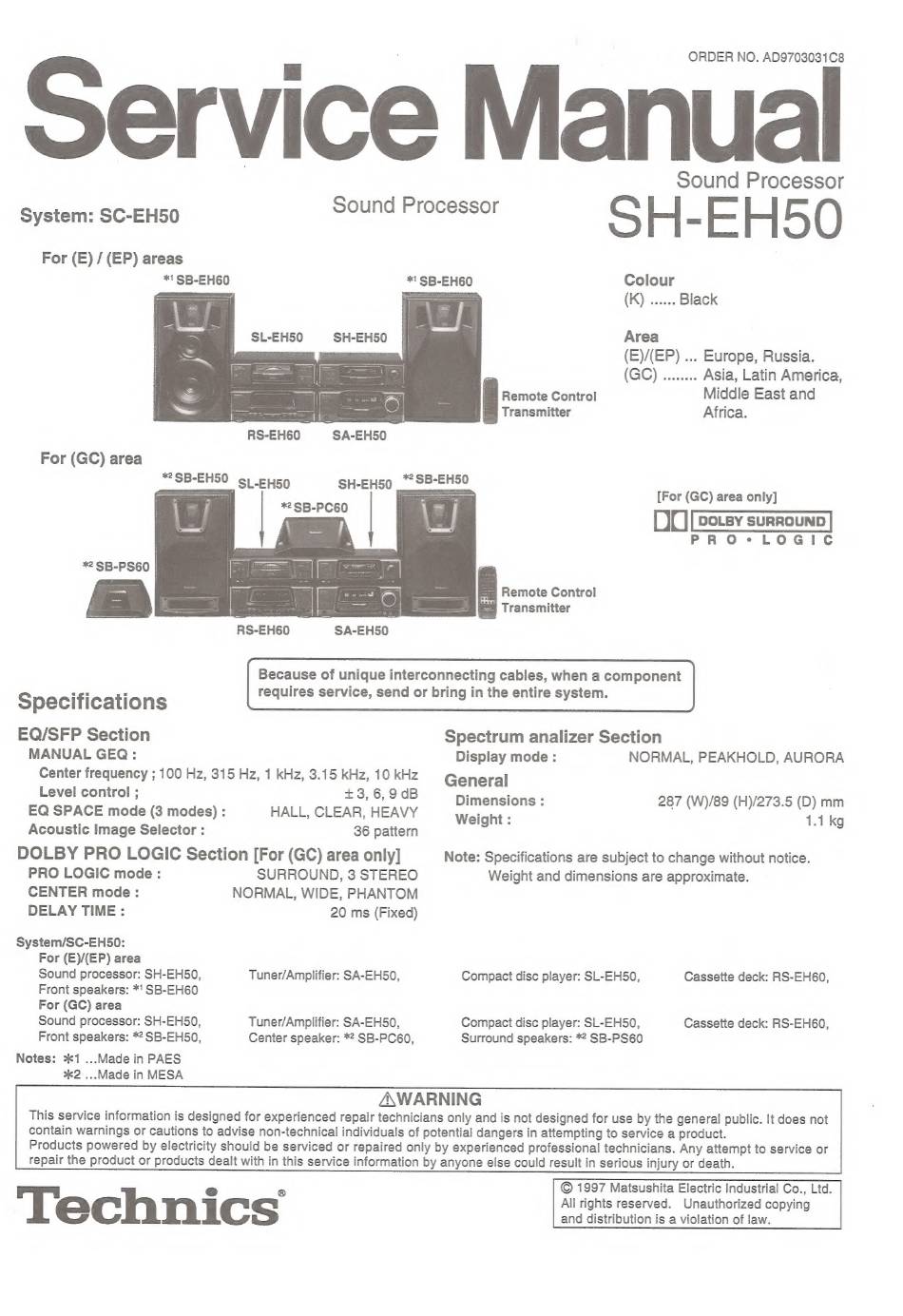

Technics SH-EH50 Service Manual

ORDER NO. AD9703031C8
For (E) / (EP) areas
*! SB-EH60 *! SB-EH60 Colour
Ta ral P som (K) ...... Black
SL-EH50 SH-EH50 Area
(E)/(EP) ... Europe, Russia.
(GC) ........ Asia, Latin America,
Remote Control Middle East and
A Transmitter Africa.
For (GC) area
* SB-EH50 si-EH50 SH-EH50 ~ SB-EH50
es
ssi?
SS
[For (GC) area only]
i wp 2 SB-PC60
D0 [potsy surrounp
PRO-LOGIC
*2SB-PS60 nn il
Remote Control
Transmitter
Because of unique interconnecting cables, when a component
requires service, send or bring in the entire system.
Specifications
EQ/SFP Section Spectrum analizer Section
MANUAL GEQ:
Display mode :
NORMAL, PEAKHOLD, AURORA
Center frequency ; 100 Hz, 315 Hz, 1 kHz, 3.15 kHz, 10 kHz General
nevel conttel
+3,6,9dB
Dimensions :
287 (W)/89 (H)/273.5 (D) mm
EQ SPACE mode (3 modes) :
HALL, CLEAR, HEAVY
Weight :
1.1 kg
Acoustic Image Selector : 36 pattern
DOLBY PRO LOGIC Section [For (GC) area only]
Note: Specifications are subject to change without notice.
PRO LOGIC mode :
SURROUND, 3 STEREO
Weight and dimensions are approximate.
CENTER mode: NORMAL, WIDE, PHANTOM
DELAY TIME : 20 ms (Fixed)

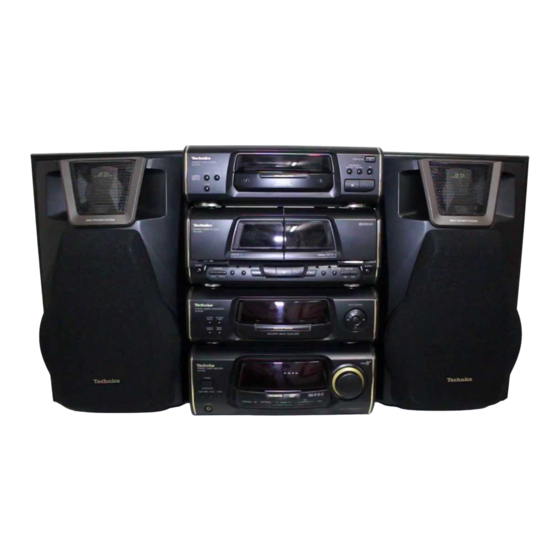

System/SC-EH50:
For (E)/(EP) area
Sound processor: SH-EH50,
Tuner/Amplifier: SA-EH50,
Compact disc player: SL-EH50,
Cassette deck: RS-EH60,
Front speakers: *! SB-EH60
For (GC) area
Sound processor: SH-EH50,
Tuner/Amplifier: SA-EH50,
Compact disc player: SL-EH50,
Cassette deck: RS-EH60,
Front speakers: ** SB-EH50, Center speaker: ** SB-PC60, Surround speakers: ** SB-PS60
Notes: >k1 ...Made in PAES
2 ...Made in MESA
ZA\AWARNING
All rights reserved. Unauthorized copying
and distribution is a violation of law.
