  • Page 1 Multi-spectrum Binocular HABROK Series User Manual V5.5.80 202311 Contact Us...

  • Page 2: Table Of Contents

    Multi-spectrum Binocular User Manual Table of Contents Chapter 1 Overview ........................1 1.1 Brief Description ........................1 1.2 Function ..........................1 1.3 Appearance .......................... 2 Chapter 2 Preparation ......................5 2.1 Install Battery ........................5 2.1.1 Battery Instruction ....................5 2.1.2 Battery Installation ....................
  • Page 3 5.4.4 View Local Files ..................... 28 5.5 Hot Tracking ........................29 5.6 Export Files ........................29 5.6.1 Export Files via HIKMICRO Sight ................. 29 5.6.2 Export Files via PC ....................31 5.7 Direction Display ....................... 31 5.7.1 Calibrate Compass ....................32 5.7.2 Magnetic Declination Correction .................
  • Page 4 Multi-spectrum Binocular User Manual 6.6 Restore Device ........................36 Chapter 7 Frequently Asked Questions ................. 38 7.1 Why does the charge indicator flash improperly? ............38 7.2 Why is the power indicator off? ..................38 7.3 The image is not clear, how to adjust it? ............... 38 7.4 Capturing or recording fails.

  • Page 5: Chapter 1 Overview

    Chapter 1 Overview 1.1 Brief Description HIKMICRO HABROK series is a powerful and innovative handheld thermal and digital day & night vision multi-spectrum binocular. It adopts a 12 μm infrared thermal detector with high thermal sensitivity up to NETD < 20 mK, 2560 × 1440 low illumination optical detector with built-in adjustable IR illuminator, and a precise built-in laser rangefinder up to 1000 m measuring distance.

  • Page 6: Appearance

    Multi-spectrum Binocular User Manual The device can capture snapshots, record videos, and set parameters by HIKMICRO Sight app after being connected to your phone via hotspot. 1.3 Appearance The appearance may vary according to different models. Please take the actual product for reference.
  • Page 7 Multi-spectrum Binocular User Manual Table 1-1 Components Description Function The piece placed closest to the eye to view the target. 1 & 7 Eyepiece Adjust the interpupillary distance by moving the eyepieces farther or closer to each other. Infrared Light Helps to view target clearly in the dark environment.
  • Page 8 Multi-spectrum Binocular User Manual Icon Button Function ● Hold: Save and exit menu. Non-Menu Mode: ● Press: Switch digital zoom. Zoom ● Hold: Turn on/off PIP (Picture-in-Picture). Menu Mode: Press to move down. Note ● The power indicator stays solid red when the device is on. ●...

  • Page 9: Chapter 2 Preparation

    Multi-spectrum Binocular User Manual Chapter 2 Preparation Take out the device and accessories. Check them with the packaging list to confirm device and accessories are included and available for use. Read the user manual to learn the usage methods and cautions. 2.1 Install Battery 2.1.1 Battery Instruction ...

  • Page 10: Cable Connection

    Multi-spectrum Binocular User Manual 2. Insert batteries into the battery compartment as the positive and negative marks indicate. Figure 2-2 Install the Battery 3. Close the battery compartment cover and lock it. Figure 2-3 Close the Cover 2.2 Cable Connection Connect the device and power adapter with a type-C cable to charge the device.

  • Page 11: Mount Neck Strap

    Multi-spectrum Binocular User Manual Alternatively, connect the device and PC to export files. Steps 1. Lift the type-C interface cover. 2. Connect the device and power adapter with a type-C cable to charge the device. Figure 2-4 Cable Connection Note ●...
  • Page 12 Multi-spectrum Binocular User Manual Figure 2-5 Thread Neck Strap through Attachment Point 2. Thread the neck strap through the strap buckle and fasten the neck strap, as is shown in the picture. Figure 2-6 Thread Neck Strap through Strap Buckle 3.

  • Page 13: Mount Tripod Adapter

    Multi-spectrum Binocular User Manual 5. Adjust the length of neck strap as needed. 2.4 Mount Tripod Adapter Steps 1. Insert the location column (1) to the location point (2). Figure 2-8 Insert the Column 2. Rotate the tripod adapter screw clockwise to fix the tripod adapter. Figure 2-9 Rotate the Screw 2.5 Power On/Off Power On...

  • Page 14: Auto Screen Off

    2.6 Auto Screen Off Auto screen off function darkens the screen to save energy and increase battery time. However, the device stays on and you can view the live view on HIKMICRO Sight app when connecting the device to the app.

  • Page 15: Menu Description

    ● Press to move the cursor down. ● Press to confirm and hold it to exit the menu. 2.8 App Connection Connect the device to the HIKMICRO Sight app via hotspot, then you can capture picture,...

  • Page 16: Firmware Status

    Steps 1. Search the HIKMICRO Sight on App Store (iOS System) or Google Play™ (Android System) to download it, or scan the QR code to download and install the app. Android System iOS System 2.

  • Page 17: Upgrade Device

    2.9.2 Upgrade Device Upgrade Device via HIKMICRO Sight Before You Start Install HIKMICRO Sight on your phone and connect your device to the app. Steps 1. Tap the upgrade prompt to enter the firmware upgrade interface. 2. Tap Upgrade to start upgrade.

  • Page 18: Chapter 3 Image Settings

    Multi-spectrum Binocular User Manual Chapter 3 Image Settings You can set palettes, brightness, scenes, FFC (flat field correction), and DPC (defective pixel correction) to display the better image effect. 3.1 Adjust Device Figure 3-1 Adjust Device Adjust Infrared Light Slightly rotate to adjust the beam angle of the infrared light. The broader the beam angle is, the more spread-out but less intense the light will be.

  • Page 19: Adjust Brightness

    Multi-spectrum Binocular User Manual Note When adjusting diopter, DO NOT touch the surface of lens to avoid smearing the lens. 3.2 Adjust Brightness You can adjust the display brightness of the screen in the menu. Steps 1. Press to show the menu. 2.

  • Page 20: Adjust Sharpness

    Multi-spectrum Binocular User Manual Figure 3-2 Tone Comparison 3.5 Adjust Sharpness Steps 1. Press to show the menu. 2. Go to Advanced Settings, and press to select 3. Press to confirm, and press to adjust sharpness. 4. Hold to save and exit. Figure 3-3 Sharpness Adjustment Comparison 3.6 Select Scene You can select proper scene according to actual using scene to improve the display effect.

  • Page 21: Set Palettes

    Multi-spectrum Binocular User Manual – Jungle: Jungle refers to jungle mode and is recommended in hunting environment. 5. Hold to save settings and exit. 3.7 Set Palettes You can select different palettes to display the same scene in different effects. Steps 1.
  • Page 22 Multi-spectrum Binocular User Manual Black Hot The hot part is black-colored in view. The higher the temperature is, the darker the color Red Hot The hot part is red-colored in view. The higher the temperature is, the redder the color is. Fusion From high temperature to low temperature, the image is colored in from white, yellow, red, pink to purple.

  • Page 23: Set Display Mode

    Multi-spectrum Binocular User Manual 3.8 Set Display Mode You can select different display modes in different scenes. Steps Hold in live view interface to switch display modes. Day, night, and auto modes are selectable. : Day Mode: You can use this mode at daytime and in bright environment. In day mode, the IR light is off automatically.

  • Page 24: Set Picture In Picture Mode

    Multi-spectrum Binocular User Manual and 8×. Note ● When switching the digital zoom ratio, the top-left corner of interface displays the actual magnification (Actual Magnification = Lens Optical Magnification × Digital Zoom Ratio). For example, the lens optical magnification is 2.8× and the digital zoom ratio is 2×, and the actual magnification is 5.6×.

  • Page 25: Flat Field Correction

    Multi-spectrum Binocular User Manual 3.11 Flat Field Correction This function can correct non-uniformity of display. Steps 1. Press to show the menu. 2. Go to Advanced Settings, and select Function Settings. 3. Press to select , and press to enter the configuration interface. 4.

  • Page 26: Set Infrared Light

    Multi-spectrum Binocular User Manual pixel, then the device performs mirror display automatically as shown in the figures below. 3.13 Set Infrared Light The infrared light helps to view targets clearly in dark environment. The infrared light only works in night mode, auto mode or when the environment is dark. In other modes, the infrared light does not take effect.
  • Page 27 Multi-spectrum Binocular User Manual Note ● If the PIP function is enabled, Zoom Pro is only enabled in the PIP view. ● Zoom Pro cannot be enabled when device battery is low.

  • Page 28: Chapter 4 Measure Distance With Laser

    Multi-spectrum Binocular User Manual Chapter 4 Measure Distance with Laser The device can detect the distance between the target and the observation position with laser. Before You Start When measuring the distance, keep the hand and the position steady. Otherwise, the accuracy may be affected.
  • Page 29 Multi-spectrum Binocular User Manual Figure 4-1 Laser Ranging Result Caution The laser radiation emitted from the device can cause eye injuries, burning of skin or inflammable substances. Before enabling the laser ranging function, make sure no human or inflammable substances are in front of the laser lens.

  • Page 30: Chapter 5 General Settings

    Multi-spectrum Binocular User Manual Chapter 5 General Settings 5.1 Set OSD This function can display or hide the OSD information on the live view interface. Steps 1. Press to show the menu. 2. Go to Advanced Settings, and select Function Settings. 3.

  • Page 31: Capture And Video

    Multi-spectrum Binocular User Manual Steps 1. Press to show the menu. 2. Go to Advanced Settings, and select Function Settings. 3. Press to select 4. Press to enable or disable the function. 5. Hold to save settings and exit. 5.4 Capture and Video 5.4.1 Capture Picture In the live view interface, press to capture picture.

  • Page 32: View Local Files

    Multi-spectrum Binocular User Manual Figure 5-1 Start Recording The left image displays the information of recording time. 2. Hold again to stop recording. What to do next Export Files For exporting videos, refer to 5.4.4 View Local Files Captured images and recorded videos are automatically stored in the device, and you can view the files in local albums.

  • Page 33: Hot Tracking

    When the scene changes, the moves. Figure 5-2 Hot Tracking 5.6 Export Files 5.6.1 Export Files via HIKMICRO Sight You can access device albums and export files to your phone via HIKMICRO Sight.
  • Page 34 Install HIKMICRO Sight on your mobile phone. Steps App Connection. 1. Open HIKMICRO Sight and connect your device to the app. See 2. Tap Media to access device albums. Figure 5-3 Access Device Albums 3. Tap Local or Device to view the photos and videos.

  • Page 35: Export Files Via Pc

    Multi-spectrum Binocular User Manual ● The exporting operation may vary due to app updates. Please take the actual app version for reference. 5.6.2 Export Files via PC This function is used to export recorded videos and captured pictures. Steps 1. Connect the device and PC with cable. Note Make sure the device is turned on when connecting the cable.

  • Page 36: Calibrate Compass

    Multi-spectrum Binocular User Manual Result After successful calibration, you can see the azimuth angle and elevation angle displayed on the screen. It is recommended to read the information when you lay the device horizontally. To increase the direction accuracy, you can set the magnetic declination correction. See Magnetic Declination Correction for instructions.

  • Page 37: Magnetic Declination Correction

    Multi-spectrum Binocular User Manual Result The direction information is displayed on the live view interface. Figure 5-8 Direction Display 5.7.2 Magnetic Declination Correction Magnetic declination is the angle variation between magnetic north and true north. Adding the magnetic declination to the compass increases the accuracy of direction reading. Steps 1.

  • Page 38: Geographic Location Display

    Multi-spectrum Binocular User Manual Note It is recommended to check the local magnetic declination information on the authorized website before manually correcting the magnetic declination. The eastern magnetic declination is indicated with a positive mark (+), and the western declination is indicated with a negative mark (-).

  • Page 39: Chapter 6 System Settings

    Multi-spectrum Binocular User Manual Chapter 6 System Settings 6.1 Adjust Date Steps 1. Press to show the menu. 2. Go to Advanced Settings, and select General Settings. 3. Press to select 4. Press to enter the configuration interface. 5. Press to select the year, month, or day, and press to change the number.

  • Page 40: Set Unit

    Multi-spectrum Binocular User Manual 2. Go to Advanced Settings, and select General Settings. 3. Press to select 4. Press to enter the language configuration interface. 5. Press to select the language as required, and press to confirm. 6. Hold to save settings and exit. 6.4 Set Unit You can switch the unit for distance measurement.
  • Page 41 Multi-spectrum Binocular User Manual 4. Press to restore the device to defaults according to the prompt.

  • Page 42: Chapter 7 Frequently Asked Questions

    Multi-spectrum Binocular User Manual Chapter 7 Frequently Asked Questions 7.1 Why does the charge indicator flash improperly? Check the following items. ● Check whether the device is charged with standard power adapter and the charging temperature is above 0 °C (32 °F). ●...

  • Page 43: Safety Instruction

    Multi-spectrum Binocular User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. Laws and Regulations Use of the product must be in strict compliance with the local electrical safety regulations. Symbol Conventions The symbols that may be found in this document are defined as follows.
  • Page 44 Multi-spectrum Binocular User Manual ● For long-term storage of the battery, make sure it is fully charged every half year to ensure the battery quality. Otherwise, damage may occur. ● Use the battery provided by qualified manufacturer. Refer to the product specification for detailed battery requirements.
  • Page 45 Multi-spectrum Binocular User Manual human or inflammable substances are in front of the laser lens. Do not place the device where minors can fetch it. The wavelength is 905 nm, and the max. power output is less than 1.15 mW. According to IEC 60825-1:2014, this laser product is classified as Class 1 laser product.

  • Page 46: Legal Information

    The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version of this Manual at the HIKMICRO website (www.hikmicrotech.com).
  • Page 47 Multi-spectrum Binocular User Manual WITHOUT LIMITATION, RIGHTS OF PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY RIGHTS. YOU SHALL NOT USE THIS PRODUCT FOR ILLEGAL HUNTING ANIMALS, INVASION OF PRIVACY OR ANY OTHER PURPOSE WHICH IS ILLEGAL OR DETRIMENTAL TO THE PUBLIC INTEREST. YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE...

  • Page 48: Regulatory Information

    Multi-spectrum Binocular User Manual Regulatory Information These clauses apply only to the products bearing the corresponding mark or information. EU Compliance Statement This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the Directive 2014/30/EU (EMCD), Directive 2014/35/EU (LVD), Directive 2011/65/EU (RoHS), Directive 2014/53/EU.
  • Page 49 Multi-spectrum Binocular User Manual documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info.
  • Page 50 Multi-spectrum Binocular User Manual soweit Altgeräte einer Vorbereitung zur Wiederverwendung unter Beteiligung eines ö ffentlich-rechtlichen Entsorgungsträgers zugefü hrt werden. 3. Mö glichkeiten der Rü ckgabe von Altgeräten: Besitzer von Altgeräten aus privaten Haushalten kö nnen diese bei den Sammelstellen der ö...

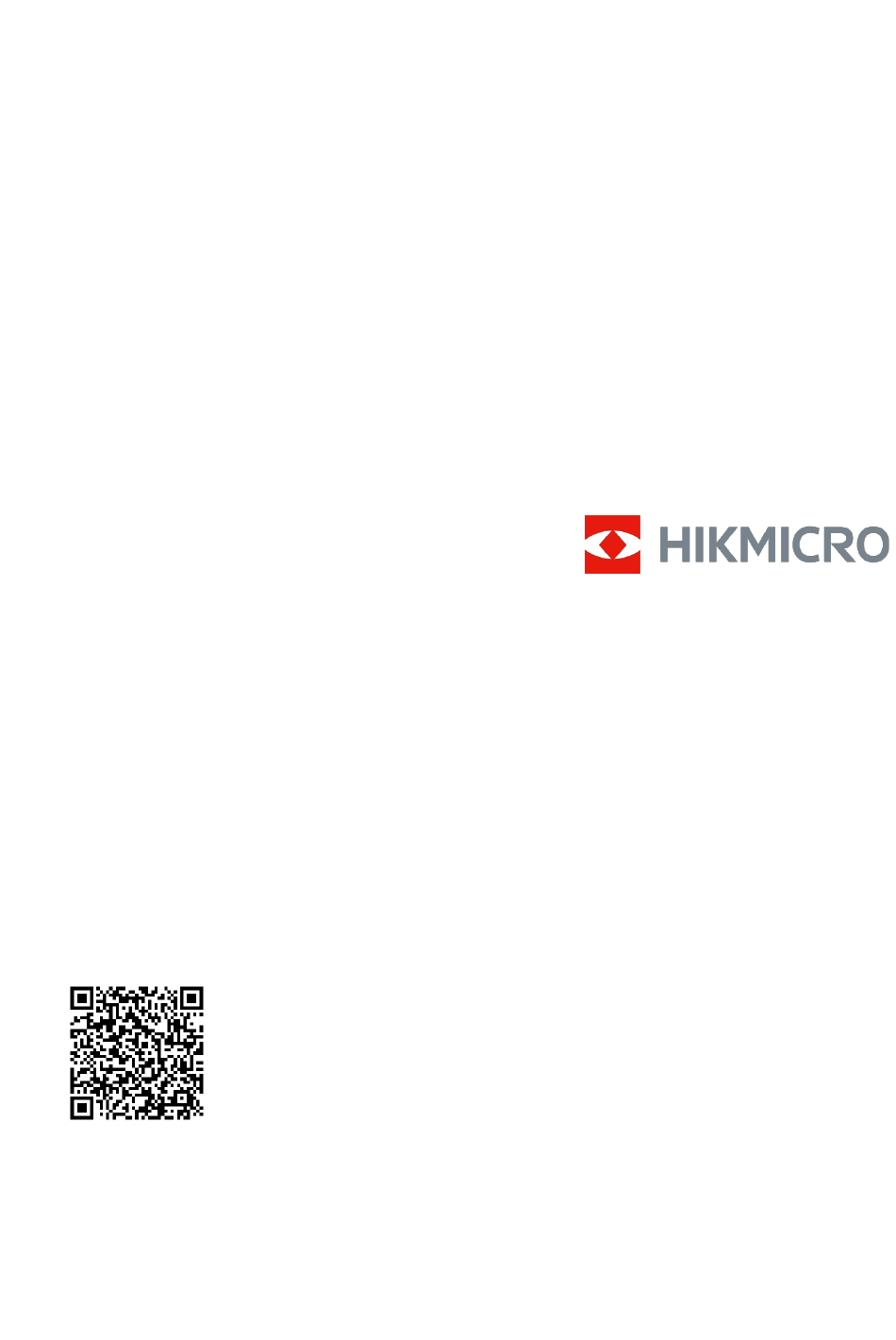

  • Page 51 Web: www.hikmicrotech.com E-mail: support@hikmicrotech.com UD35597B...
